Global Healthcare Medical

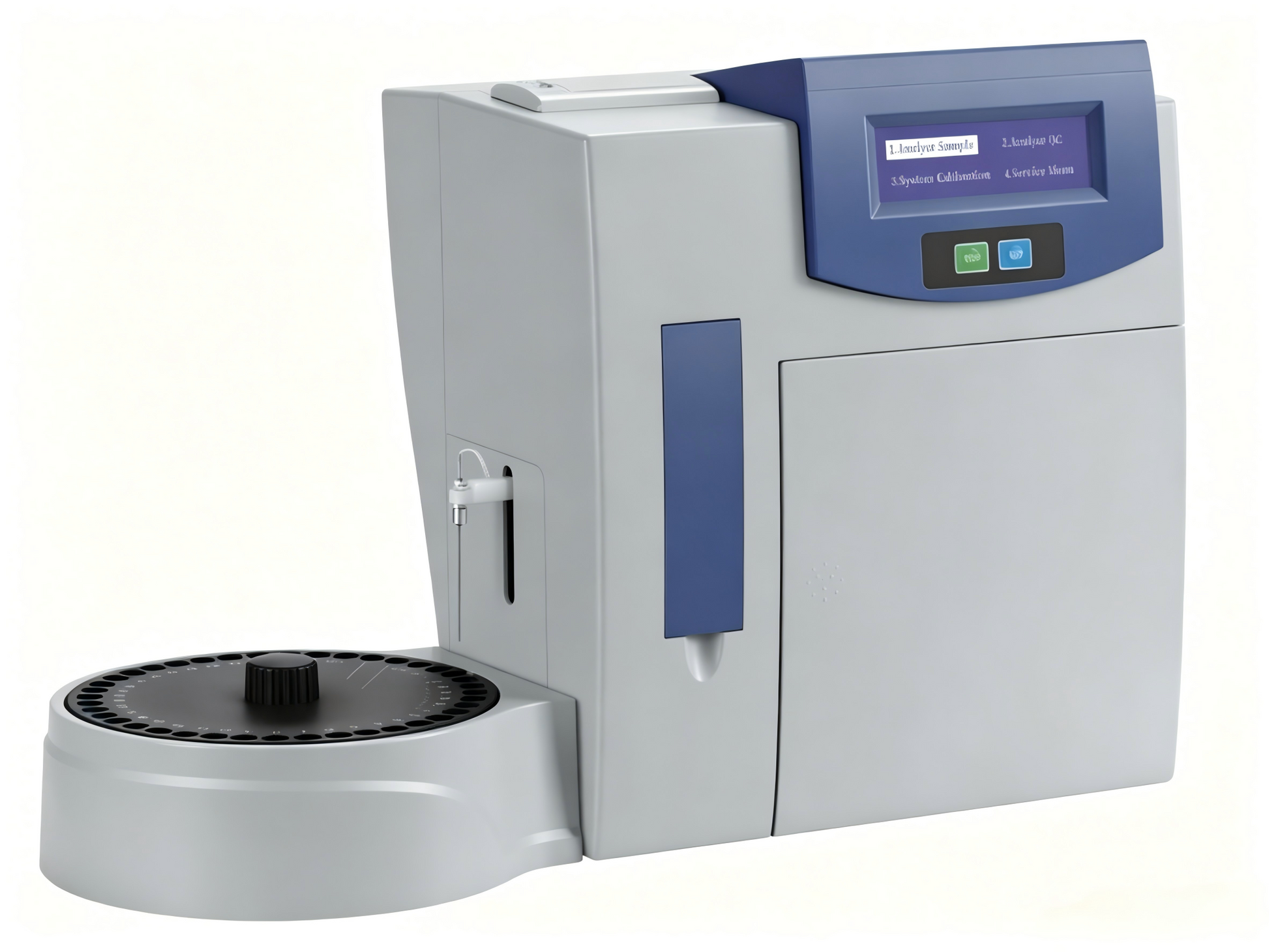

GHM IMS-972 Semi-auto C Electrolyte Analyzer #

GHM IMS-972 Semi-auto C Electrolyte Analyzer #

$989.00
$989.00
Sale Sold out
Shipping calculated at checkout.

Product Features – GHM IMS-972 Semi-auto C Electrolyte Analyzer

Complete Electrolyte & pH Panel
The Type C configuration measures K⁺, Na⁺, Cl⁻, iCa, nCa, TCa, and pH – providing a full metabolic and calcium profile in one compact semi-auto analyzer.

Simple YES/NO Prompted Operation
Intuitive, step-by-step interface minimizes training time and eliminates operator errors – ideal for busy clinical labs and point-of-care settings.

Rapid Testing – 80 Tests Per Hour
Fast measurement speed with ≤45 seconds per sample. Handles routine and emergency samples efficiently.

High-Accuracy, Long-Life Sensors
Advanced ion-selective electrode (ISE) technology delivers precise, repeatable results. Electrodes and sensors are designed for extended service life.

Sleep Mode Reduces Reagent Consumption
Automatically lowers reagent use when idle. Individual reagent design eliminates waste – significantly cuts operating costs.

Optional Sample Tray for Automation
Upgrade with an optional sample tray to automate sample handling – improves workflow and reduces manual steps.

Large Sample Capacity
39 sample positions, including 5 emergency ports and 4 functional positions – always ready for urgent tests.

Built-in Printer & RS232 Port
Internal thermal printer provides instant hard copies. RS232 interface allows easy data export to LIS/HIS systems.

Smart Maintenance & Diagnostic Features

  • Automatic potential tracking and correction software ensures stable performance

  • Automatically detects and filters tiny bubbles – prevents clogs, guarantees accuracy

  • Real-time system working status diagnosis

  • Waste liquid automatic detection and alarm

  • Automatic calibration with two-point correction (slope and intercept)

  • Wave flushing + direct flushing pipe method – no blockages, no cross-contamination

Power Failure Protection
Safely stores up to 10,000 test results – no data loss during unexpected shutdowns.

Low Consumption, High Value
Minimizes reagent and consumable costs while maintaining lab-grade accuracy.

Compact & Durable Design

  • Operating temperature: 10–30°C

  • Humidity: ≤80%

  • Power: AC220V ±22V, 50Hz ±1Hz, ≤120W

  • Dimensions: 640×296×433 mm (L×W×H)

  • Net weight: 8 kg – easy to install and move

Precision You Can Trust



Parameter Measuring Range Resolution Precision (CV%)
K⁺ 0.50–20.00 mmol/L 0.01 mmol/L ≤1.5%
Na⁺ 15.0–200.0 mmol/L 0.1 mmol/L ≤1.5%
Cl⁻ 15.0–200.0 mmol/L 0.1 mmol/L ≤1.5%
Ca⁺⁺ (iCa) 0.10–6.00 mmol/L 0.01 mmol/L ≤2.0%
pH 4.00–9.00 0.01 pH ≤2.0%

Perfect for hospitals, dialysis centers, ICUs, and diagnostic labs that require comprehensive electrolyte, ionized calcium, and pH monitoring – the IMS-972 Type C delivers lab-quality results with semi-auto simplicity.
