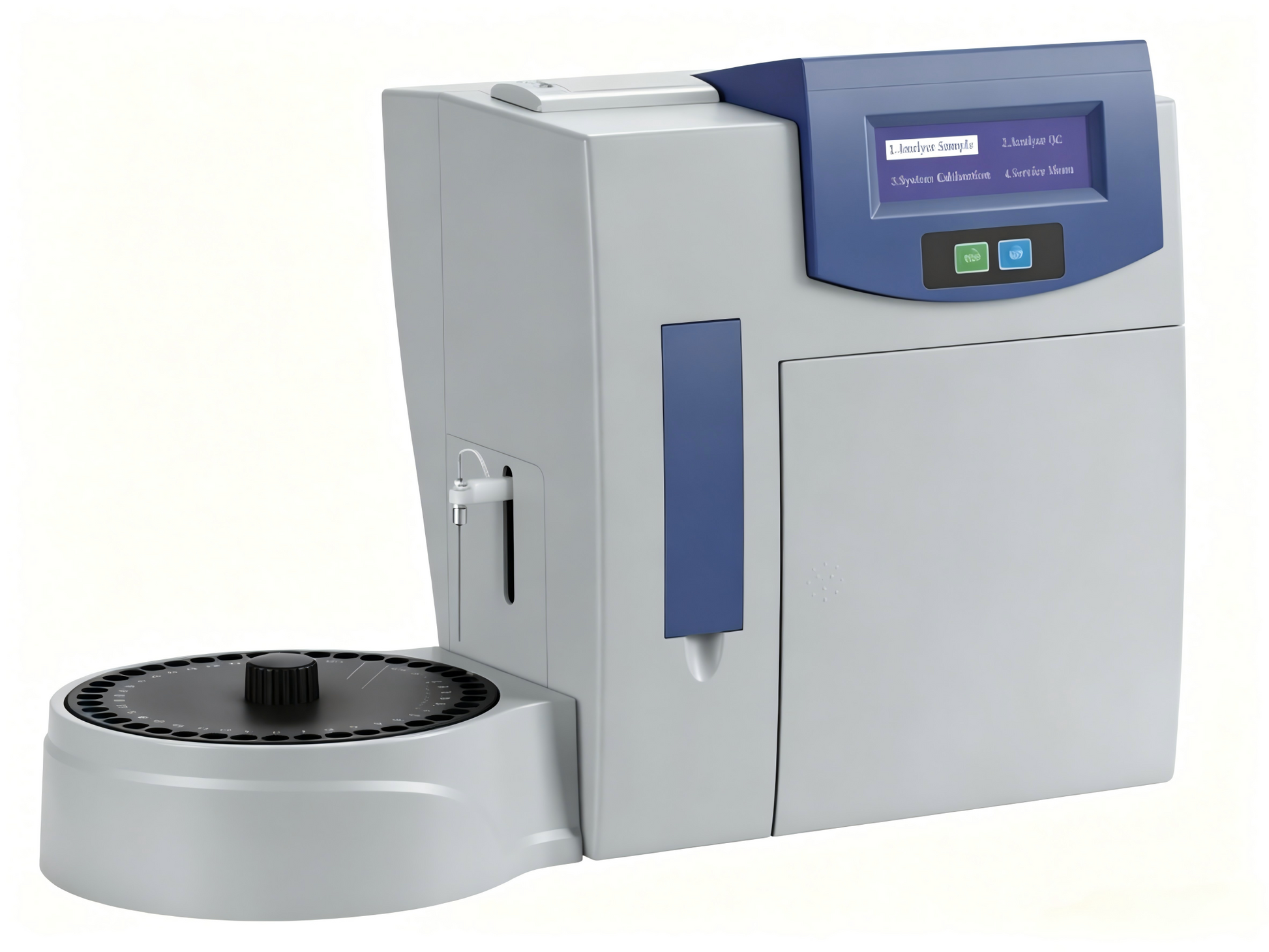

GHM IMS-972 Semi-auto D Electrolyte Analyzer #

GHM IMS-972 Semi-auto D Electrolyte Analyzer #

$1,899.00
$1,899.00
Sale Sold out
Shipping calculated at checkout.

Product Features – GHM IMS-972 Semi-auto D Electrolyte Analyzer

The Ultimate Electrolyte + Acid‑Base Panel
Type D configuration delivers the most comprehensive analysis: K⁺, Na⁺, Cl⁻, iCa, nCa, TCa, pH, TCO₂, and calculated Anion Gap (AG) – everything you need for full metabolic, calcium, and acid‑base assessment.

Simple YES/NO Prompted Operation
User‑friendly interface guides you through each test with simple prompts – minimal training, zero guesswork.

Blazing Fast – 80 Tests Per Hour
Results in ≤45 seconds per sample. Handles high workloads and emergency samples with ease.

High‑Accuracy, Long‑Life Sensors
Precision ion‑selective electrodes (ISE) for all parameters, plus a dedicated TCO₂ sensor – all built for extended service life and consistent performance.

Sleep Mode Saves Reagents
Automatically reduces reagent consumption when idle. Individual reagent design eliminates waste – lowers your cost per test.

Optional Sample Tray for Automation
Upgrade with an optional sample tray to streamline sample handling – perfect for busy labs.

Large Sample Capacity
39 positions including 5 emergency and 4 functional ports – always ready for STAT requests.

Built‑in Printer & RS232 Port
Internal thermal printer provides instant result printouts. RS232 interface allows seamless LIS/HIS integration.

Smart Maintenance & Reliability

  • Automatic potential tracking and correction software – stable performance every time

  • Auto‑detection and filtration of tiny bubbles – prevents clogs, ensures accuracy

  • Real‑time system working status diagnosis

  • Waste liquid automatic detection and alarm

  • Automatic calibration with two‑point correction (slope and intercept)

  • Wave flushing + direct flushing pipe method – no blockages, no cross‑contamination

Power Failure Protection
Safely stores up to 10,000 test results – no data loss during unexpected shutdowns.

Low Consumption, High Value
Minimizes reagent and consumable costs while delivering lab‑grade accuracy.

Compact & Durable

  • Temperature range: 10–30°C

  • Humidity: ≤80%

  • Power: AC220V ±22V, 50Hz ±1Hz, ≤120W

  • Dimensions: 640×296×433 mm (L×W×H)

  • Net weight: 8 kg – easy to place anywhere

Precision You Can Trust



Parameter Measuring Range Resolution Precision (CV%)
K⁺ 0.50–20.00 mmol/L 0.01 mmol/L ≤1.5%
Na⁺ 15.0–200.0 mmol/L 0.1 mmol/L ≤1.5%
Cl⁻ 15.0–200.0 mmol/L 0.1 mmol/L ≤1.5%
Ca⁺⁺ (iCa) 0.10–6.00 mmol/L 0.01 mmol/L ≤2.0%
pH 4.00–9.00 0.01 pH ≤2.0%
TCO₂ 2.0–70.0 mmol/L 0.1 mmol/L ≤3.5%
AG Calculated – –

Ideal for tertiary hospitals, ICUs, dialysis centers, and emergency rooms that demand a full electrolyte, calcium, pH, TCO₂, and anion gap profile – the IMS‑972 Type D is your all‑in‑one semi‑auto solution.
