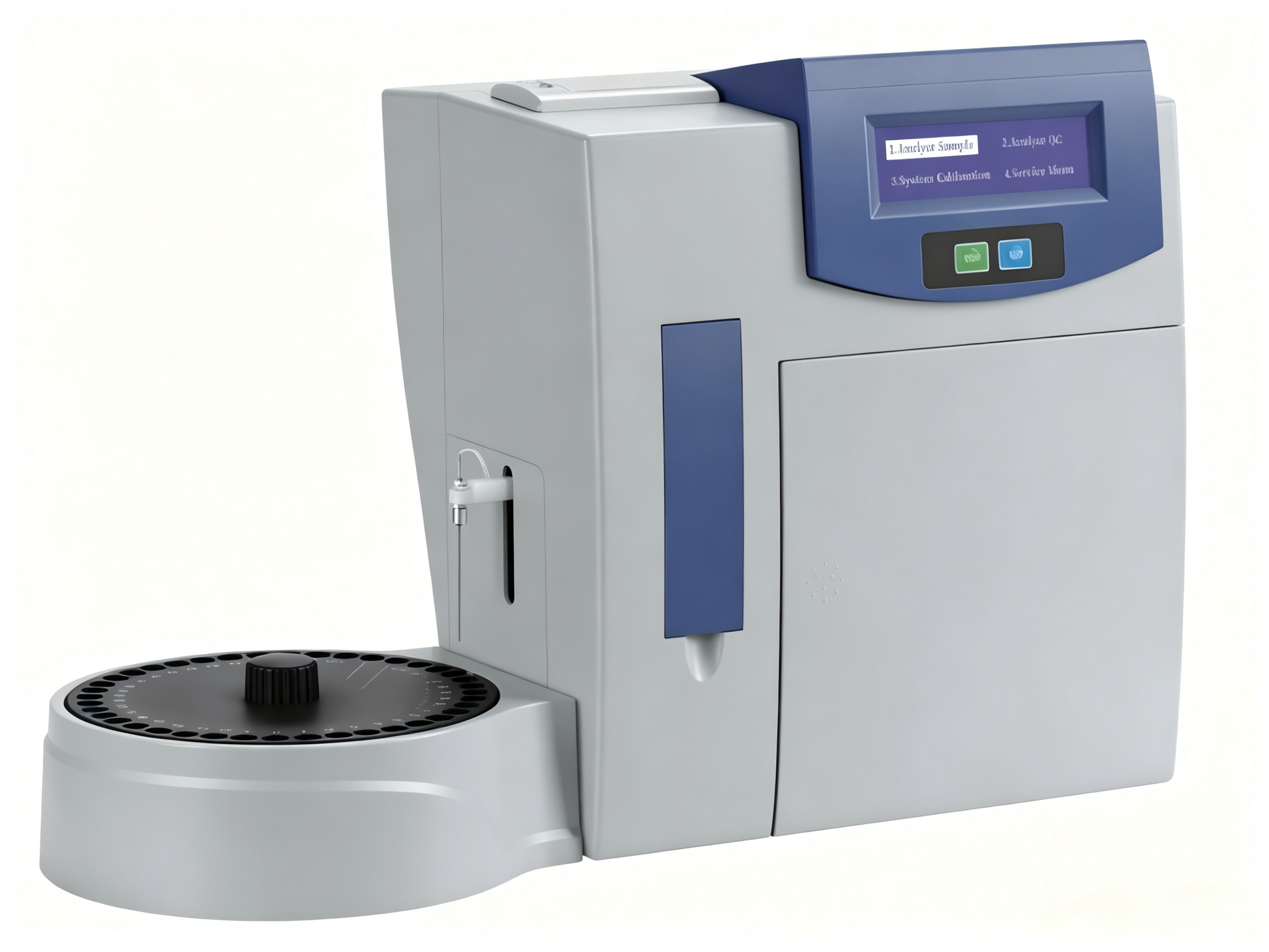

GHM IMS-972 Semi-auto I Electrolyte Analyzer #

GHM IMS-972 Semi-auto I Electrolyte Analyzer #

$2,099.00
$2,099.00
Sale Sold out
Shipping calculated at checkout.

Product Features – GHM IMS-972 Semi-auto I Electrolyte Analyzer

The Ultimate 10‑Parameter Panel
Type I configuration delivers the most advanced analysis available: K⁺, Na⁺, Cl⁻, iCa, nCa, TCa, pH, Li⁺, TCO₂, and calculated Anion Gap (AG) – a complete solution for routine electrolytes, ionized calcium, acid‑base balance, therapeutic lithium monitoring, and metabolic status.

Simple YES/NO Prompted Operation
Intuitive, step‑by‑step interface minimizes training time and eliminates operator errors – ideal for high‑complexity clinical labs.

Rapid Testing – 80 Tests Per Hour
Fast measurement speed with ≤45 seconds per sample. Handles high workloads and emergency STAT requests effortlessly.

High‑Accuracy, Long‑Life Sensors
Precision ion‑selective electrodes (ISE) for all parameters, plus a dedicated TCO₂ sensor and lithium electrode – all engineered for extended service life and consistent, repeatable results.

Sleep Mode Saves Reagents
Automatically reduces reagent consumption when idle. Individual reagent design eliminates waste – significantly lowers your cost per test.

Optional Sample Tray for Automation
Upgrade with an optional sample tray to automate sample handling – improves workflow efficiency in high‑volume labs.

Large Sample Capacity
39 sample positions, including 5 emergency ports and 4 functional positions – always ready for urgent tests.

Built‑in Printer & RS232 Port
Internal thermal printer delivers instant hard copies. RS232 interface allows seamless data export to LIS/HIS systems.

Smart Maintenance & Diagnostic Features

  • Automatic potential tracking and correction software ensures stable performance

  • Automatically detects and filters tiny bubbles – prevents clogs, guarantees accuracy

  • Real‑time system working status diagnosis

  • Waste liquid automatic detection and alarm

  • Automatic calibration with two‑point correction (slope and intercept)

  • Wave flushing + direct flushing pipe method – no blockages, no cross‑contamination

Power Failure Protection
Safely stores up to 10,000 test results – no data loss during unexpected shutdowns.

Low Consumption, High Value
Minimizes reagent and consumable costs while delivering lab‑grade accuracy – perfect for labs that need maximum information per test.

Compact & Durable Design

  • Operating temperature: 10–30°C

  • Humidity: ≤80%

  • Power: AC220V ±22V, 50Hz ±1Hz, ≤120W

  • Dimensions: 640×296×433 mm (L×W×H)

  • Net weight: 8 kg – easy to install and move

Precision You Can Trust



Parameter Measuring Range Resolution Precision (CV%)
K⁺ 0.50–20.00 mmol/L 0.01 mmol/L ≤1.5%
Na⁺ 15.0–200.0 mmol/L 0.1 mmol/L ≤1.5%
Cl⁻ 15.0–200.0 mmol/L 0.1 mmol/L ≤1.5%
Ca⁺⁺ (iCa) 0.10–6.00 mmol/L 0.01 mmol/L ≤2.0%
pH 4.00–9.00 0.01 pH ≤2.0%
Li⁺ 0.10–6.00 mmol/L 0.01 mmol/L ≤3.0%
TCO₂ 2.0–70.0 mmol/L 0.1 mmol/L ≤3.5%
AG Calculated – –

Ideal for tertiary hospitals, reference labs, psychiatric clinics, ICUs, and dialysis centers that demand a complete metabolic, calcium, lithium, and acid‑base profile – the IMS‑972 Type I is your all‑in‑one semi‑auto powerhouse.
