GHM-L151A Portable Color Doppler Ultrasound | Laptop-Style Diagnostic System for General Imaging #

Portable laptop-style color Doppler ultrasound with 15" HD display, 128GB SSD, 12 imaging modes, and 6000mAh battery. Ideal for abdominal, OB/GYN, vascular, and small parts imaging.

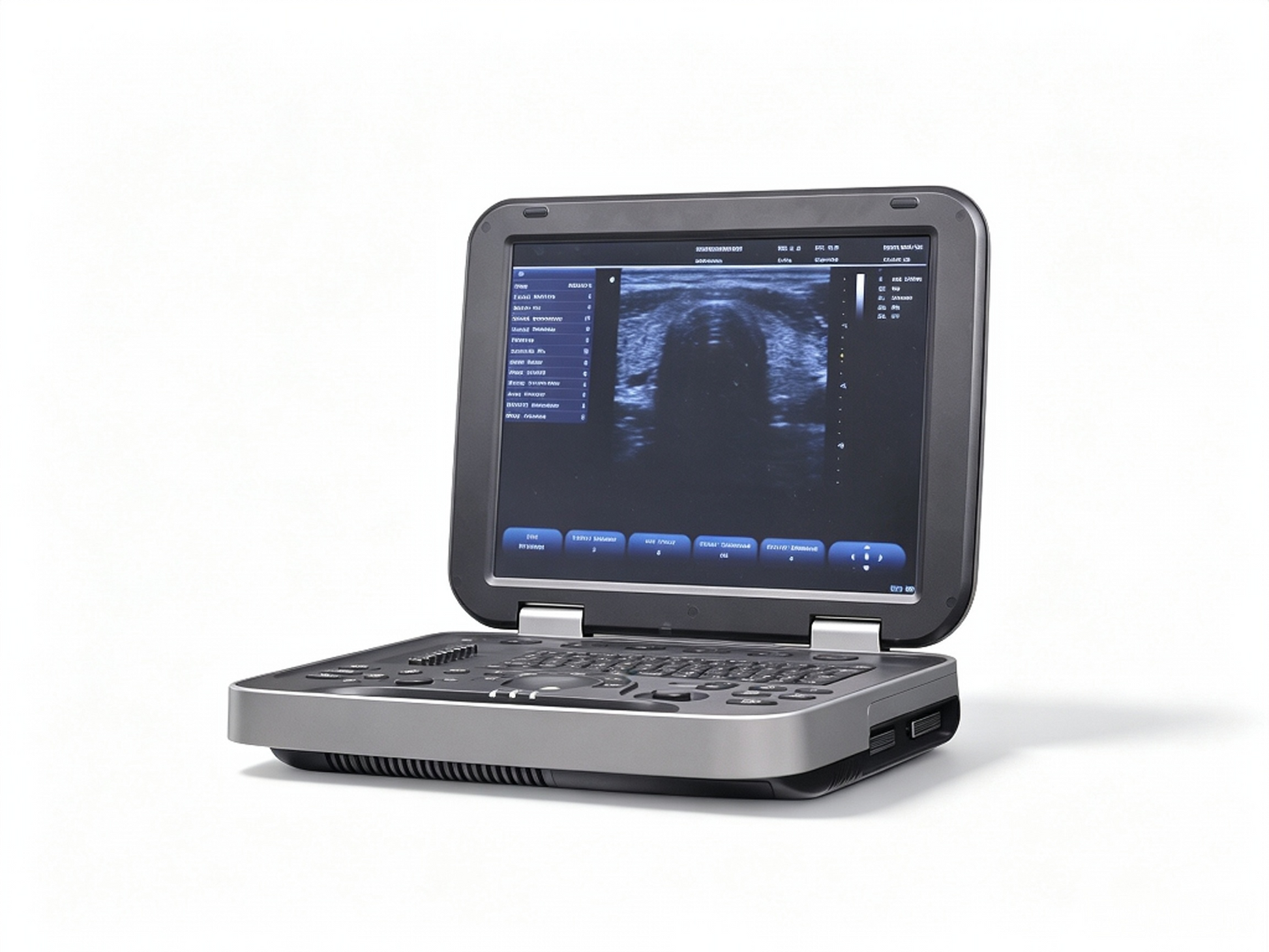

The Global Healthcare Medical GHM-L151A Portable Color Doppler Ultrasound System is a laptop-style diagnostic ultrasound machine designed for versatile, high-quality imaging across multiple clinical applications. Combining exceptional portability with powerful imaging capabilities, this system delivers the performance you need—wherever you need it.

Built on a Linux+ARM+FPGA technology platform and featuring a 15-inch high-resolution color LCD monitor, the GHM-L151A offers a comprehensive suite of imaging modes including B-mode, Color Doppler, Power Doppler, Pulsed Wave Doppler, M-mode, and Tissue Harmonic Imaging. With its lightweight design, integrated 6000mAh battery, and 128GB solid-state drive for reliable data storage, this system is built for the realities of modern clinical practice.

Whether you are performing abdominal scans, obstetric measurements, vascular assessments, or small parts imaging, the GHM-L151A delivers the clarity, versatility, and ease of use that healthcare professionals demand.

This device is intended for professional use in clinical and diagnostic settings. Not a substitute for professional medical diagnosis.

Key Features

🖥️ High-Resolution 15-Inch Display

The GHM-L151A features a 15-inch high-resolution color LCD monitor with 1024×768 resolution, delivering exceptional image clarity for confident diagnosis. The large screen ensures that even subtle anatomical details are clearly visible, enhancing diagnostic confidence during extended scanning sessions.

🔬 Comprehensive Imaging Mode Suite

The GHM-L151A supports a comprehensive range of imaging modes to accommodate diverse clinical applications:

• B-mode (2D Grayscale Imaging) – Standard imaging for general scanning

• Color Doppler Mode – Evaluates blood flow velocity, direction, and quality

• Power Doppler Imaging (PDI) – Displays the intensity of blood flow within the region of interest

• Pulsed Wave Doppler (PW) – Provides real-time spectral display of blood flow speed and direction

• M-mode – Motion mode for cardiac and fetal movement assessment

• Tissue Harmonic Imaging (THI) – Uses second harmonics to significantly increase contrast resolution and improve image quality

• Spatial Compounding Imaging – Enhances image quality through multi-angle acquisition

• B/Color/PW Trisynchronous Technology – Simultaneous display of all three modes

• Multibeam Parallel Processing – Excellent temporal resolution and higher frame rates

• Speckle Noise Suppression – Cleaner, clearer images

🔄 Versatile Probe Compatibility

The GHM-L151A supports a wide range of probe options through its dual zero-force metal body probe connectors:

Probe array elements: ≥96 | Probe frequency range: 2.5-10MHz

⚡ Portable Laptop Design with Long Battery Life

Weighing just 60mm thick with a compact footprint of 370mm × 350mm, the GHM-L151A is designed for true portability. The built-in 6000mAh lithium battery provides over 1 hour of continuous operation during active scanning, with the screen displaying real-time power information. The system also features a quick cold start of just 39 seconds, minimizing downtime between patients.

💾 Integrated Data Management with 128GB SSD

The GHM-L151A features a built-in 128GB solid-state drive for reliable, high-speed data storage. The system supports:

• Patient data management – Built-in patient data management station

• Image archiving – Complete storage management and playback of patient static and dynamic images

• Customized annotations – Insert, edit, and save annotations

• Image formats – Supports multiple image formats for flexible data management

🔌 Comprehensive Connectivity & DICOM 3.0

The GHM-L151A offers extensive connectivity options for seamless integration into any clinical environment:

• Network port – For network real-time transmission of user data to servers

• USB ports (2) – For external storage, printers, and accessories

• VGA / VIDEO / S-VIDEO – For external display connectivity

• Audio interface – For audio output

• Foot switch interface – For hands-free operation

• DICOM 3.0 interface – For medical digital imaging and communications

• Printing interface – Supports black & white and color video printers, laser printers, and inkjet printers

📐 Advanced Imaging Technologies

The GHM-L151A incorporates cutting-edge imaging technologies for superior image quality:

• Color Doppler Enhancement Technology – Optimizes color flow visualization

• Linear Array Probe Independent Deflection Imaging – Improves visualization of challenging structures

• Linear Trapezoidal Spread Imaging – Expands the field of view for linear probes

• Convex Expansion Imaging – Extends the imaging field for convex probes

• B-mode Image Enhancement – Real-time image quality optimization

• Logiqview – Advanced image review and analysis

• Dual power supply system – AC power with built-in battery backup

🌍 Multi-Language & International Usability

The GHM-L151A is designed for international healthcare settings with multi-language support for global usability.

🏥 Wide Clinical Applications

The GHM-L151A is suitable for a comprehensive range of clinical applications:

• Abdominal – Liver, gallbladder, pancreas, kidney, and spleen imaging

• Obstetrics & Gynecology – Fetal development monitoring and pelvic examinations

• Vascular – Blood flow assessment in veins and arteries

• Small Parts – Thyroid, breast, testes, and musculoskeletal imaging

• Cardiology – Basic cardiac assessment

• Urology – Kidney, bladder, and prostate examinations

• Pediatrics – Safe, non-invasive imaging for children

Specifications

Optional:

Linear probe    $1099
Transvaginal probe    $1099
Micro convex probe    $1099

Why Choose the GHM-L151A?

What's Included

• GHM-L151A Portable Color Doppler Ultrasound Main Unit

• 15-inch High-Resolution Color LCD Monitor

• Convex Probe (3.5MHz)

• 6000mAh Lithium Battery (built-in)

• 128GB SSD (built-in)

• Power Adapter

• User Manual

FAQ

Q: What is the GHM-L151A Portable Color Doppler Ultrasound System?

A: The GHM-L151A is a laptop-style portable diagnostic ultrasound system featuring Color Doppler, Power Doppler, PW Doppler, B-mode, M-mode, and Tissue Harmonic Imaging for a wide range of clinical applications.

Q: What imaging modes does the device support?

A: The GHM-L151A supports B-mode, Color Doppler, Power Doppler, PW Doppler, M-mode, Tissue Harmonic Imaging, Spatial Compounding, and B/Color/PW Trisynchronous imaging, among others.

Q: What probe options are available?

A: The device supports convex (3.5MHz), linear (7.5MHz), micro convex (6.5MHz), and transvaginal (6.5MHz) probes.

Q: How long does the battery last?

A: The built-in 6000mAh lithium battery provides over 1 hour of continuous operation during active scanning.

Q: What is the screen size and resolution?

A: The GHM-L151A features a 15-inch high-resolution color LCD monitor with 1024×768 resolution.

Q: Does the device have data storage?

A: Yes. The GHM-L151A features a built-in 128GB solid-state drive for reliable, high-speed data storage.

Q: Does the device support DICOM?

A: Yes. The GHM-L151A supports the DICOM 3.0 interface for medical digital imaging and communications.

Q: What clinical applications is the device suitable for?

A: The GHM-L151A is suitable for abdominal, obstetrics & gynecology, vascular, small parts, cardiology, urology, and pediatric imaging.

Q: What is the cold start time?

A: The GHM-L151A features a quick cold start of just 39 seconds.

Q: What connectivity options are available?

A: The GHM-L151A offers network port, 2×USB ports, VGA/VIDEO/S-VIDEO, audio interface, and foot switch interface.
