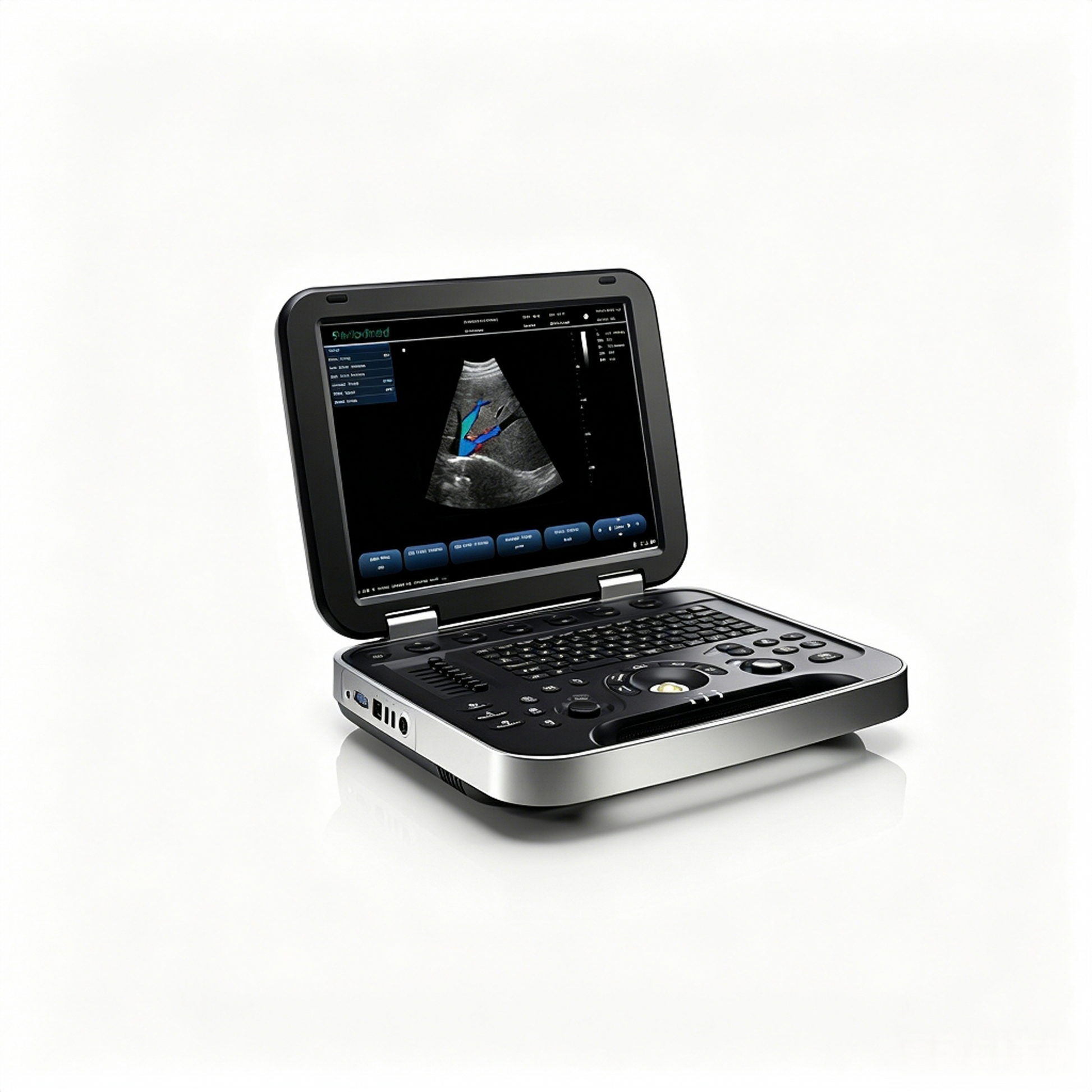

GHM-L151B Portable Urology Ultrasound | 15" Laptop Color Doppler System for Urology & General Imaging
GHM-L151B Portable Urology Ultrasound | 15" Laptop Color Doppler System for Urology & General Imaging
Portable laptop ultrasound for urology with 15" HD display, Color/Power Doppler, 5-hour battery, and DICOM 3.0. Ideal for kidney, bladder, prostate, and general imaging.
The Global Healthcare Medical GHM-L151B Portable Urology Ultrasound Device is a high-performance laptop-style color Doppler ultrasound system designed for urology and general diagnostic imaging. Featuring a 15-inch high-definition LCD monitor with 1024×768 resolution, this portable system delivers crystal-clear images that enhance diagnostic accuracy for kidney, bladder, prostate, and vascular assessments.
Built on a stable Linux+ARM+FPGA architecture with 80 array elements and 40 physical channels, the GHM-L151B combines advanced Color Doppler technology with a lightweight, portable design. Whether you're conducting urological exams in a clinic, performing bedside consultations, or working in remote settings, this system provides the versatility and reliability you need.
This device is intended for professional use in clinical and diagnostic settings. Not a substitute for professional medical diagnosis.
Key Features
🩺 Specialized Urology & General Imaging
The GHM-L151B is specifically designed to support a wide range of urological and general diagnostic applications, including:
-
Kidney – Renal stone detection, hydronephrosis assessment, and cystic evaluation
-
Bladder – Volume measurement and wall assessment
-
Prostate – Transrectal and transabdominal evaluation
-
Vascular – Carotid artery and peripheral vascular assessment
-
Obstetrics & Gynecology – Fetal and pelvic imaging
🖥️ 15‑Inch High‑Definition LCD Display
The GHM-L151B features a 15‑inch high‑definition LCD monitor with 1024×768 resolution, delivering clear, detailed imaging for confident diagnosis. The large screen ensures that even subtle anatomical details are clearly visible, enhancing diagnostic confidence during extended scanning sessions.
🔬 Advanced Color Doppler Imaging Modes
The GHM-L151B supports a comprehensive range of imaging modes for complete diagnostic coverage:
| Mode | Application |
|---|---|
| B Mode | Standard 2D grayscale imaging |
| BB Mode | Dual‑screen display for comparative viewing |
| 4B Mode | Quad‑screen display for multi‑angle assessment |
| M Mode | Motion mode for tissue movement evaluation |
| B/M Mode | Simultaneous B‑mode and M‑mode |
| CFM (Color Flow Mode) | Real‑time blood flow visualization |
| PW (Pulsed Wave Doppler) | Spectral analysis of blood flow velocity |
| PDI (Power Doppler Imaging) | High‑sensitivity flow detection |
🔄 Versatile Probe Compatibility
The GHM-L151B features dual probe connectors (dual-channel dual-interface) and supports a wide range of probe types for comprehensive clinical coverage:
Probe‑specific preset options allow for refined selection of different examination areas.
💾 Integrated Workstation with 128GB Storage
The GHM-L151B features a built‑in workstation with 128GB storage that supports patient data retrieval and browsing. The system supports:
🔋 Long Battery Life for Extended Use
The GHM-L151B is equipped with a large‑capacity lithium battery providing over 5 hours of standby time. This extended battery life ensures uninterrupted operation during long shifts, bedside consultations, and remote clinic visits.
⌨️ Ergonomic Design for Streamlined Workflow
The GHM-L151B features a backlit silicone keyboard for convenient operation in dark environments, such as interventional suites or dimly lit examination rooms. The user‑friendly interface allows for quick setup and operation, reducing the learning curve.
🌍 Multi‑Language Support
The GHM-L151B supports multiple languages including Chinese, English, Spanish, French, German, Czech, and Russian, with additional languages available upon request.
🔌 Comprehensive Connectivity & DICOM 3.0
The GHM-L151B offers extensive connectivity options for seamless integration into any clinical environment:
🏥 Wide Clinical Applications
The GHM-L151B is suitable for a comprehensive range of clinical applications:
-
Urology – Kidney, bladder, prostate, and scrotal imaging
-
Abdominal – Liver, gallbladder, pancreas, and spleen imaging
-
Obstetrics & Gynecology – Fetal development monitoring and pelvic examinations
-
Vascular – Carotid and peripheral vascular assessment
-
Small Parts – Thyroid, breast, and musculoskeletal imaging
-
Cardiology – Basic cardiac assessment
Specifications
| Feature | Specification |
|---|---|
| Product Type | Portable Color Doppler Ultrasound System |
| Model | GHM-L151B |
| Display | 15‑inch High‑Definition LCD Monitor |
| Screen Resolution | 1024 × 768 |
| System Architecture | Linux + ARM + FPGA |
| Array Elements | 80 |
| Physical Channels | 40 |
| Probe Connectors | 2 (dual‑channel dual‑interface) |
| Imaging Modes | B, BB, 4B, M, B/M, CFM, PW, PDI |
| Storage | 128GB built‑in |
| Battery | Large‑capacity lithium battery (>5 hours standby) |
| Weight | 5.9 kg |
| Image Formats | JPG, BMP, FRM, CIN AVI |
| Connectivity | Foot switch, VGA, 2×USB, LAN |
| DICOM | DICOM 3.0 support |
| Languages | Chinese, English, Spanish, French, German, Czech, Russian |
| Probe Options | Convex (3.5MHz), Micro Convex (5.0MHz), Transvaginal (6.5MHz), Linear (7.5MHz) |
| Applications | Urology, abdominal, OB/GYN, vascular, small parts, cardiology |
Applications
The GHM-L151B Portable Urology Ultrasound Device is suitable for:
-
Urology Clinics – Kidney stone detection, bladder volume measurement, prostate evaluation
-
Hospitals – Emergency, nephrology, and radiology departments
-
Outpatient Clinics – Routine urological and abdominal screening
-
Primary Care – Point‑of‑care diagnostic imaging
-
Obstetrics & Gynecology – Fetal and pelvic imaging
-
Vascular Medicine – Carotid and peripheral vascular assessment
Why Choose the GHM-L151B?
| Basic Portable Ultrasound Systems | Global Healthcare Medical GHM-L151B |
|---|---|
| Limited urology applications | Comprehensive urology + general imaging |
| Basic display | 15" high‑definition LCD monitor |
| Limited imaging modes | 8+ modes including Color/Power Doppler |
| Limited storage | 128GB built‑in workstation |
| Short battery life | 5+ hours standby time |
| Basic connectivity | DICOM 3.0, VGA, USB, LAN, foot switch |
FAQ
Q: What is the GHM-L151B Portable Urology Ultrasound Device?
A: The GHM-L151B is a laptop-style portable color Doppler ultrasound system designed for urology and general diagnostic imaging, featuring a 15-inch HD display and advanced Color Doppler technology.
Q: What imaging modes does the device support?
A: The GHM-L151B supports B, BB, 4B, M, B/M, CFM, PW, and PDI imaging modes.
Q: What probe options are available?
A: The device supports convex (3.5MHz), micro convex (5.0MHz), transvaginal (6.5MHz), and linear (7.5MHz) probes with dual probe connectors.
Q: How long does the battery last?
A: The large‑capacity lithium battery provides over 5 hours of standby time.
Q: What is the weight of the device?
A: The GHM-L151B weighs 5.9 kg.
Q: Does the device support DICOM?
A: Yes. The GHM-L151B supports DICOM 3.0 for PACS integration and medical digital imaging communications.
Q: What clinical applications is the device suitable for?
A: The GHM-L151B is suitable for urology (kidney, bladder, prostate), abdominal, OB/GYN, vascular, small parts, and cardiology imaging.
Q: What languages does the interface support?
A: The GHM-L151B supports Chinese, English, Spanish, French, German, Czech, and Russian, with additional languages available upon request.
Q: Does the device have a built‑in workstation?
A: Yes. The GHM-L151B features a built‑in workstation with 128GB storage for patient data retrieval and browsing.
Q: What image formats are supported?
A: The GHM-L151B supports JPG, BMP, FRM, and CIN AVI video formats.
