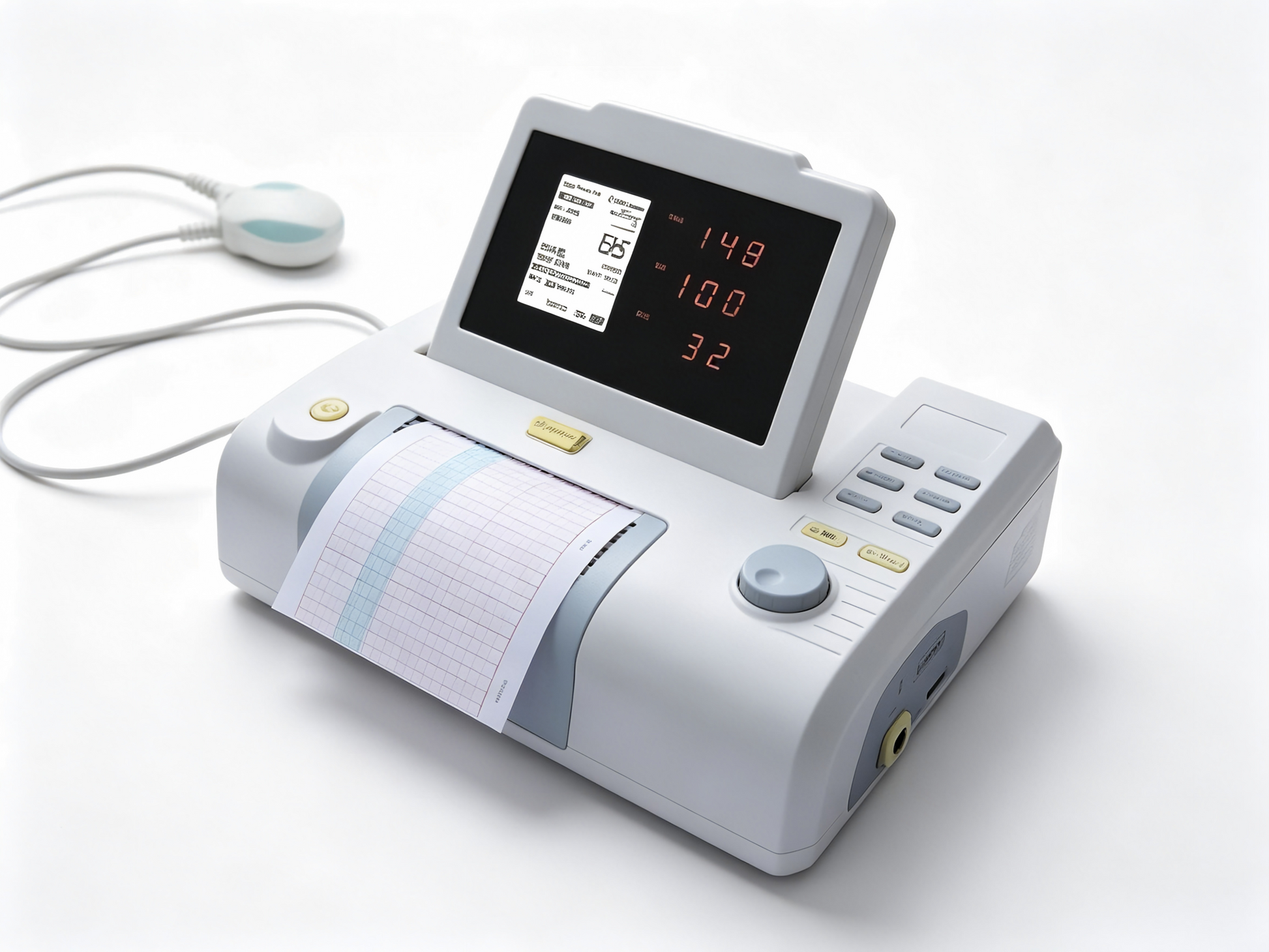

GHM L8 LED+LCD Fetal Monitor – 7" Foldable Fetal/Maternal Monitor with LED+LCD Display, Thermal Printer, Auto CTG Scoring, and Twins Function #

Cost-effective 7" LED+LCD fetal monitor with FHR, TOCO, FM, built-in thermal printer, auto CTG scoring (Krebs/Fischer/NST), and twins function. Rechargeable battery and central networking ready. Shop now.

Classic Fetal Monitoring at an Exceptional Value

The GHM L8 LED+LCD Fetal Monitor is a reliable, cost-effective maternal-fetal monitoring solution designed for obstetric wards, clinics, and medical practices. Featuring a dual LED+LCD display with a convenient 90-degree foldable design, the L8 LED+LCD delivers clear, real-time visualization of fetal heart rate (FHR), uterine contractions (TOCO), and fetal movement (FM).

Built with advanced DSP technology and high-sensitivity multi-crystal ultrasound transducers, the L8 LED+LCD ensures accurate, reliable FHR monitoring with ultra-low ultrasound power for maximum fetal safety. With built-in twins function and flexible configuration options, this monitor offers exceptional versatility at an entry-level price point.

Key Features

LED+LCD Dual Display – The 7-inch combination LED and LCD screen provides clear waveform and numeric data visualization. The 90° foldable design ensures optimal viewing from any position, making it ideal for both bedside and mobile use.

Built-in Long-Life Thermal Printer – Integrated high-resolution thermal printer supports direct printout of CTG waveforms and scoring reports. Features paper-out alarm for uninterrupted operation.

High-Sensitivity Ultrasound Probe – Features multi-crystal, wide-beam pulsed-wave transducers with <5mW/cm² ultrasound intensity, ensuring accurate FHR detection while prioritizing fetal safety.

DSP Technology for Accurate Results – Advanced digital signal processing enables real-time FHR identification and measurement with precise autocorrelation calculations for consistently reliable results.

Auto CTG Scoring & Printout – Automatically generates fetal monitoring reports with Krebs score, Fischer score, and NST (Non-Stress Test) scoring systems – saving valuable clinical time and ensuring consistent documentation.

Automatic Fetal Movement Detection – Both manual and automatic fetal movement detection and accounting options available for comprehensive fetal well-being assessment.

Rechargeable Li-Ion Battery – Built-in rechargeable battery supports long-duration continuous monitoring, ensuring uninterrupted operation even during patient transport or power interruptions.

Twins Function Built-In – Built-in twins monitoring capability (twin probes sold separately).

Central Monitoring Networking – Wired/wireless networking capability for seamless integration with GHM Central Monitoring System (CMS), enabling centralized patient data management across multiple beds.

Lightweight & Portable – Compact design at just 1.75 kg net weight, suitable for bedside, desktop, or wall-mounted use.

Technical Specifications

What's in the Box

• GHM L8 LED+LCD Fetal Monitor main unit

• FHR1 ultrasound transducer (1.0MHz)

• TOCO pressure transducer

• Fetal movement marker

• Power adapter & cable

• Thermal printer paper

• Patient belt

• User manual

Optional accessories: FHR2 twin probe (for twins function), touchscreen upgrade, and CMS software.

Why Choose GHM L8 LED+LCD?

• Exceptional Value – The most cost-effective entry into Global Healthcare Medical's trusted L8 series, delivering premium features at an accessible price point.

• Built-In Twins Function – Ready for twin pregnancy monitoring without additional hardware upgrades (twin probes sold separately).

• Proven Reliability – Backed by over 20 years of fetal monitoring expertise from Global Healthcare Medical.

• Clinically Validated – CE certified and compliant with international medical device standards.

• Scalable Solution – From single-bed use to full hospital-wide central monitoring networks.

• Trusted Worldwide – Sold to customers across Europe, Africa, Asia, and the Americas.

Who Is It For?

• Hospitals – Obstetrics departments, labor & delivery wards seeking cost-effective monitoring solutions

• Clinics – Women's health centers and prenatal care facilities

• Private Practices – OB/GYN offices wanting reliable, affordable fetal monitoring

• Distributors – Healthcare equipment distributors looking for a proven, best-selling fetal monitor

Order Information

For bulk orders, custom configurations, or distributor inquiries, please contact our sales team.
