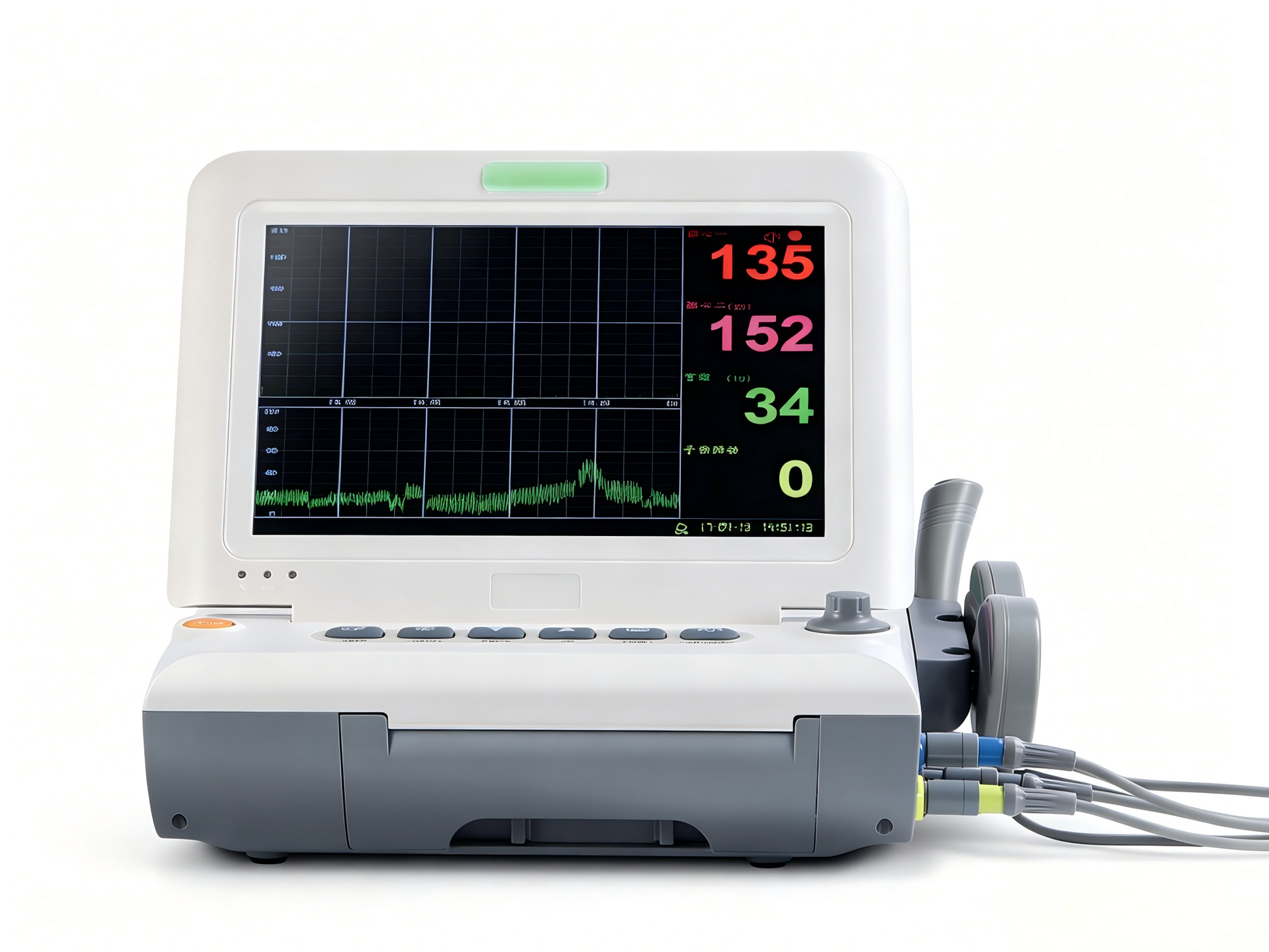

GHM L8M Fetal Monitor – 10.2" Maternal & Fetal Heart Rate Monitor with CTG, NIBP, SpO2, and Thermal Printer #

Advanced 10.2" fetal monitor with FHR, TOCO, FM, NIBP, SpO2, and ECG. Features auto CTG scoring, thermal printer, rechargeable battery, and central monitoring networking. Ideal for hospitals and clinics. Shop now.

Reliable Fetal & Maternal Monitoring for Modern Obstetrics

The GHM L8M Fetal Monitor is a high-performance, 10.2-inch maternal and fetal monitoring solution designed to meet the demanding needs of hospitals, clinics, and obstetric wards.Engineered with advanced DSP (Digital Signal Processing) technology and high-sensitivity multi-crystal ultrasound transducers, the L8M delivers accurate, reliable fetal heart rate (FHR) monitoring with ultra-low ultrasound power for maximum safety.

Whether you need basic fetal monitoring or comprehensive maternal-fetal surveillance, the L8M offers flexible configuration options to suit your clinical requirements.

Key Features

10.2" High-Resolution Foldable Display – The large TFT color screen provides crystal-clear waveform and numeric data visualization. The 0–90° adjustable angle ensures optimal viewing from any position, making it ideal for both bedside and mobile use.

Flexible Parameter Configurations – Choose from three configurations to match your clinical needs:

• 3-Parameter: FHR, TOCO, FM (Fetal Movement)

• 6-Parameter: FHR, TOCO, FM, SpO₂, NIBP, PR

• 9-Parameter: FHR, TOCO, FM, SpO₂, NIBP, PR, ECG, TEMP, HR, RESP

High-Sensitivity Ultrasound Probe – Features multi-crystal, wide-beam pulsed-wave transducers with <5mW/cm² ultrasound intensity, ensuring accurate FHR detection while prioritizing fetal safety.

DSP Technology for Accurate Results – Advanced digital signal processing enables real-time FHR identification and measurement with precise autocorrelation calculations for consistently reliable results.

Built-in Long-Life Thermal Printer – Integrated high-resolution 152mm thermal printer supports direct printout of CTG waveforms and scoring reports. Compatible with standard thermal paper for hassle-free operation.

Auto CTG Scoring System – Automatically generates fetal monitoring reports with Fischer and Krebs scoring, saving clinical time and improving documentation accuracy.

Automatic Fetal Movement Detection – Both manual and automatic fetal movement detection and accounting options are available, with fetal activity curve display for comprehensive assessment.

Rechargeable Li-Ion Battery – Built-in rechargeable battery supports long-duration continuous monitoring, ensuring uninterrupted operation even during patient transport or power interruptions.

Wired & Wireless Networking – Supports both wired Ethernet and WiFi connectivity for seamless integration with Luckcome Central Monitoring System (CMS).Expand your monitoring capabilities with centralized patient data management across multiple beds.

Large Data Storage – Continuous long-term CTG data storage with playback and fast printing capabilities. Review patient history effortlessly.

Twins Monitoring Option – Optional dual FHR probe support for twin pregnancy monitoring.

Comprehensive Alarm System – Multiple alarm functions including FHR limit alarms, paper-out alerts, and low-battery warnings for enhanced patient safety.

Technical Specifications

What’s in the Box

• GHM L8M Fetal Monitor main unit

• FHR1 ultrasound transducer (US1, 1.0MHz)

• TOCO pressure transducer

• Fetal movement marker

• Power adapter & cable

• Thermal printer paper (152mm × 100mm, 150 sheets)

• Patient belt

• User manual

Optional accessories available: FHR2 twin probe, SpO₂ probe, NIBP cuff, ECG cable, temperature probe, cart, and CMS software.

Why Choose GHM L8M?

• Proven Reliability – Backed by over 20 years of fetal monitoring expertise.

• Cost-Effective – Delivers premium features at a competitive price point, making advanced fetal monitoring accessible.

• Clinically Validated – CE certified and compliant with international medical device standards.

• Scalable Solution – From single-bed use to full hospital-wide central monitoring networks.

Who Is It For?

• Hospitals – Obstetrics departments, labor & delivery wards

• Clinics – Women's health centers, prenatal care facilities

• Medical Practices – OB/GYN offices requiring reliable fetal monitoring
