GHM L8P Fetal Monitor – 12.1" Large Display Maternal/Fetal Monitor with Thermal Printer, Auto CTG Scoring, and Twins Monitoring Option

Premium 12.1" fetal monitor with FHR, TOCO, FM, built-in thermal printer, auto CTG scoring (Fischer/Krebs), and rechargeable battery. Twins and 6/9-parameter options available. Ideal for hospitals and clinics. Shop now.

Premium Fetal Monitoring with a Large, Crystal-Clear Display

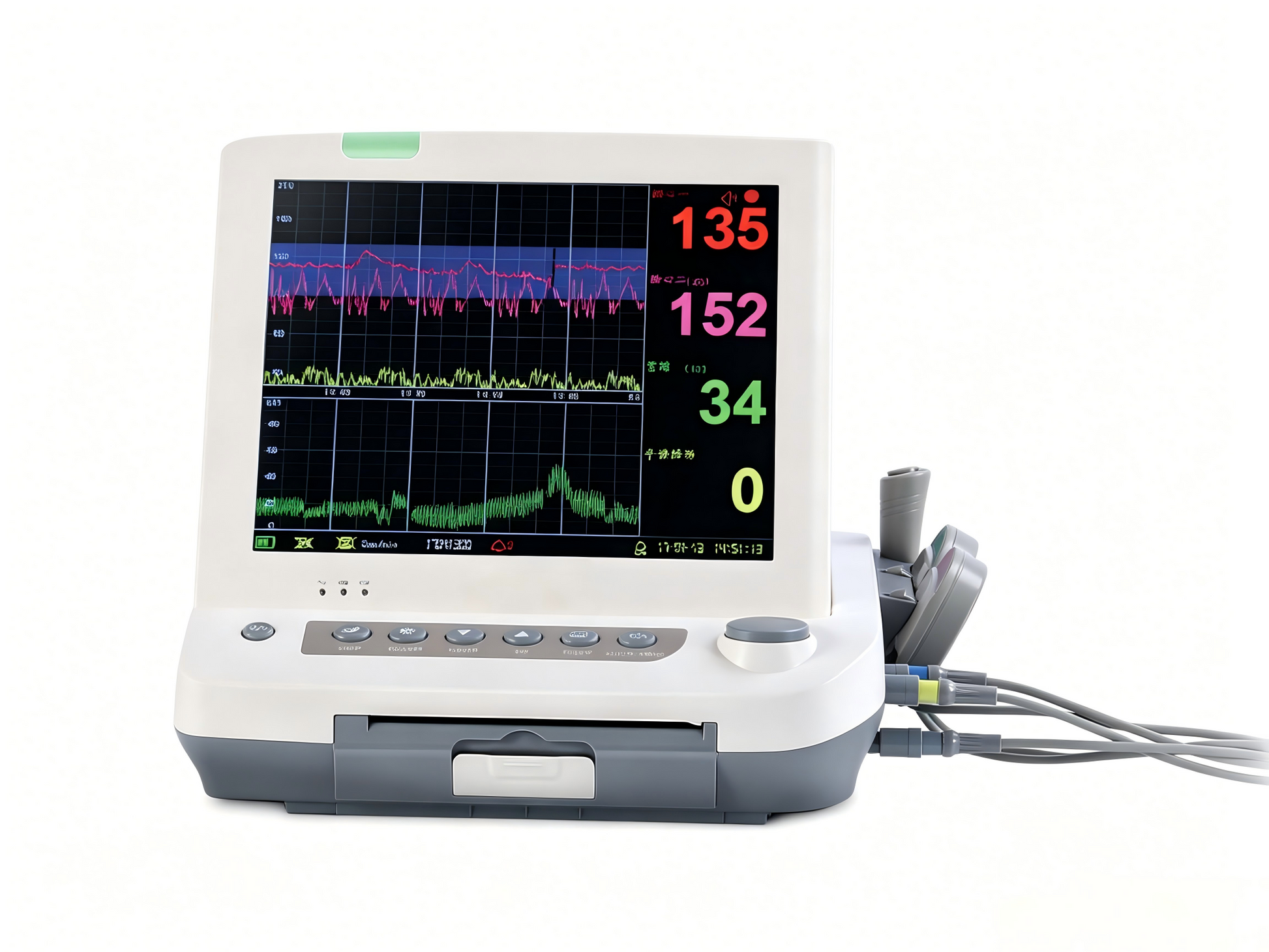

The GHM L8P Fetal Monitor is a high-end, reliable maternal-fetal monitoring solution designed for modern obstetric wards, hospitals, and clinics. Featuring a 12.1-inch high-resolution color TFT display with a convenient 0–90° adjustable angle, the L8P delivers exceptional waveform and numeric data visualization for enhanced clinical decision-making.

Built with advanced DSP technology and high-sensitivity multi-crystal ultrasound transducers, the L8P ensures accurate, reliable fetal heart rate (FHR) monitoring with ultra-low ultrasound power for maximum fetal safety. With flexible configuration options—from basic 3-parameter to comprehensive 9-parameter monitoring—the L8P meets the diverse needs of any healthcare facility.

Key Features

12.1" High-Resolution Display – The large 12.1-inch TFT color screen provides crystal-clear waveform and numeric data visualization. The 0–90° adjustable angle ensures optimal viewing from any position, making it ideal for both bedside and cart-based use.

Flexible Parameter Configurations – Choose from three configurations to match your clinical needs:

• 3-Parameter: FHR, TOCO, FM (Fetal Movement)

• 6-Parameter: FHR, TOCO, FM, SpO₂, NIBP, PR

• 9-Parameter: FHR, TOCO, FM, SpO₂, NIBP, PR, ECG, TEMP, HR, RESP

High-Sensitivity Ultrasound Probe – Features multi-crystal, wide-beam pulsed-wave transducers with <5mW/cm² ultrasound intensity, ensuring accurate FHR detection while prioritizing fetal safety.

DSP Technology for Accurate Results – Advanced digital signal processing enables real-time FHR identification and measurement with precise autocorrelation calculations for consistently reliable results.

Built-in Long-Life Thermal Printer – Integrated high-resolution 152mm thermal printer supports direct printout of CTG waveforms and scoring reports. Features paper-out alarm for uninterrupted operation.

Auto CTG Scoring & Printout – Automatically generates fetal monitoring reports with Fischer score and Krebs score – two internationally recognized CTG scoring systems. Supports both real-time and selected-segment scoring.

Automatic Fetal Movement Detection – Both manual and automatic fetal movement detection and accounting options available, with fetal activity curve display for comprehensive assessment.

Rechargeable Li-Ion Battery – Built-in rechargeable battery supports long-duration continuous monitoring, ensuring uninterrupted operation even during patient transport or power interruptions.

Long-Term Data Storage – Continuous CTG data storage with freeze, playback, and fast printing capabilities. Review patient history effortlessly.

Wired & Wireless Networking – Supports both wired Ethernet and WiFi connectivity for seamless integration with GHM Central Monitoring System (CMS).

Twins Monitoring Option – Optional dual FHR probe support for twin pregnancy monitoring with twin heart rate overlap alarming (SOV) and dual-trace separation.

Comprehensive Alarm System – Multiple alarm functions including FHR limit alarms, paper-out alerts, and low-battery warnings for enhanced patient safety.

Optional Touchscreen – Touchscreen upgrade available for enhanced user experience and intuitive operation.

Technical Specifications

What's in the Box

• GHM L8P Fetal Monitor main unit

• FHR1 ultrasound transducer (1.0MHz)

• TOCO pressure transducer

• Fetal movement marker

• Power adapter & cable

• Thermal printer paper (152mm × 100mm)

• Patient belt

• User manual

Optional accessories: FHR2 twin probe, SpO₂ probe, NIBP cuff, ECG cable, temperature probe, touchscreen upgrade, cart, and CMS software.

Why Choose GHM L8P?

• Largest Display in the Series – The 12.1-inch screen offers the most viewing area in the L8 series, making waveform interpretation easier and more comfortable for clinicians.

• Exceptional Versatility – From basic 3-parameter to comprehensive 9-parameter monitoring, the L8P adapts to any clinical requirement.

• Proven Reliability – Backed by over 20 years of fetal monitoring expertise from Global Healthcare Medical.

• Clinically Validated – CE certified and compliant with international medical device standards.

• Scalable Solution – From single-bed use to full hospital-wide central monitoring networks.

• Trusted Worldwide – Sold to customers across Europe, Africa, Asia, and the Americas.

Who Is It For?

• Hospitals – Obstetrics departments, labor & delivery wards requiring premium monitoring solutions

• Clinics – Women's health centers seeking high-quality, versatile fetal monitors

• Private Practices – OB/GYN offices wanting professional-grade equipment

• Distributors – Healthcare equipment distributors looking for a premium fetal monitor

Order Information

For bulk orders, custom configurations, or distributor inquiries, please contact our sales team.
