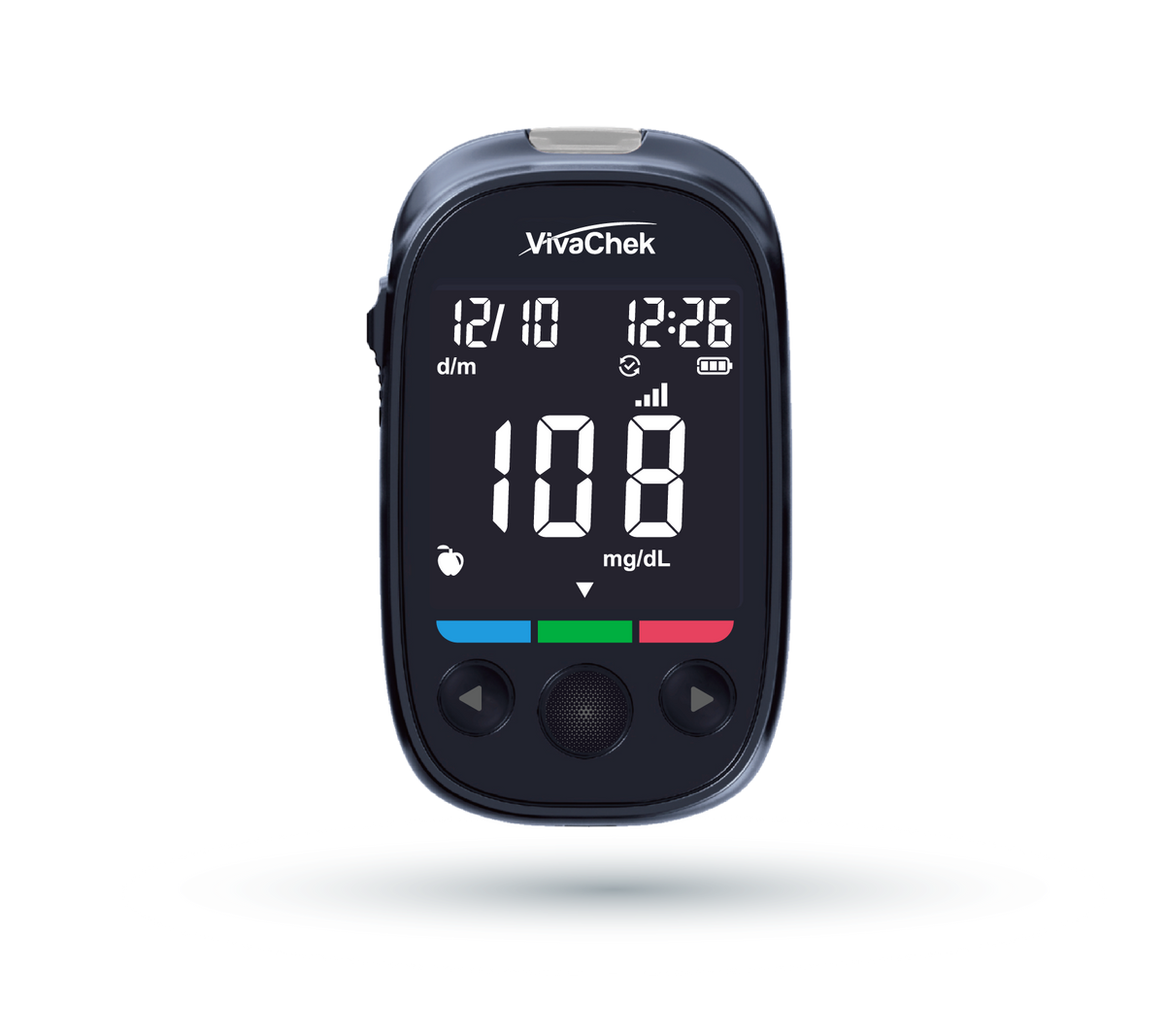

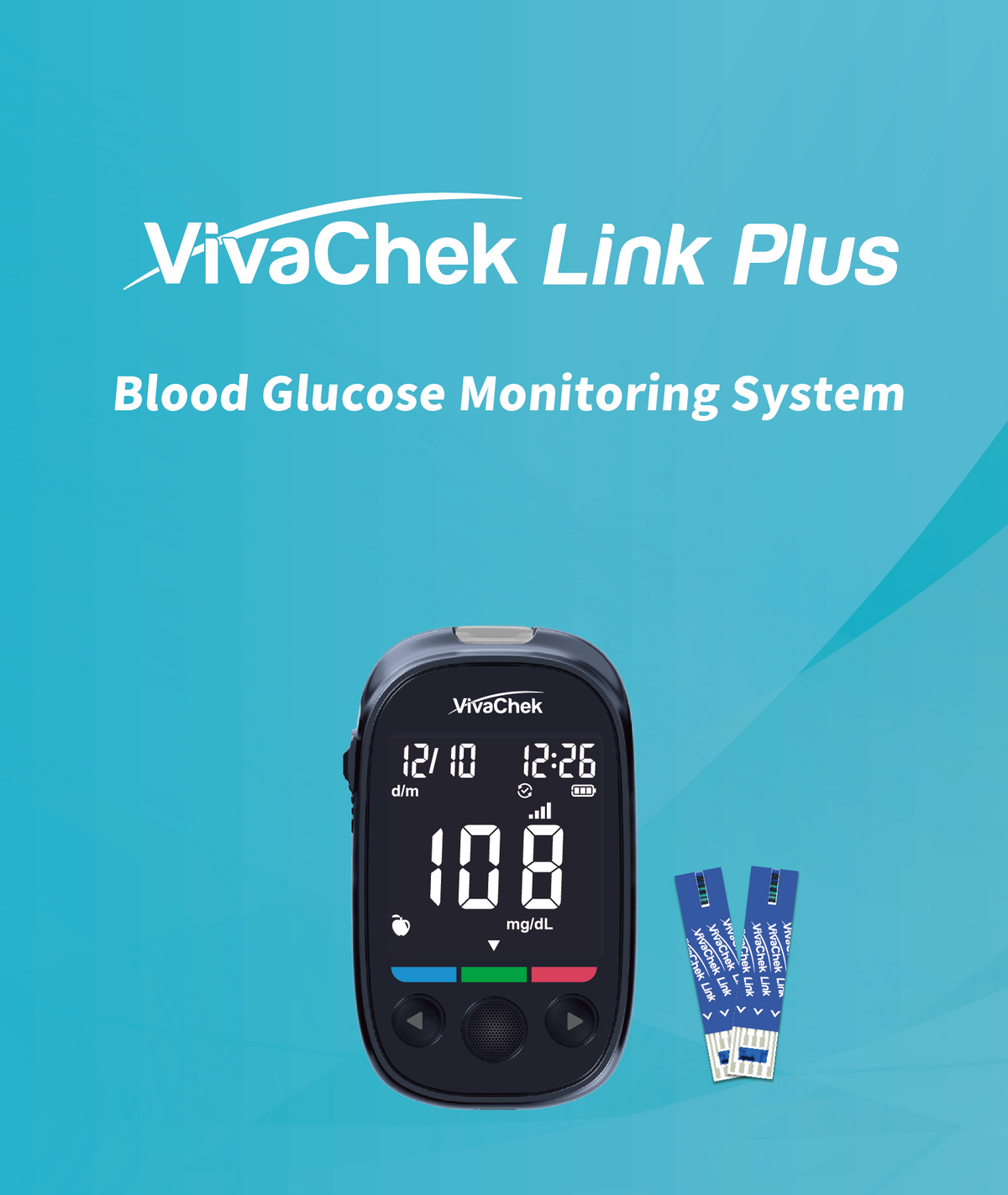

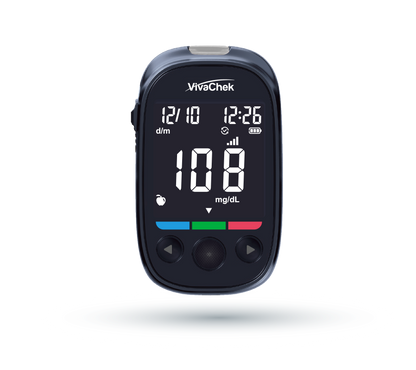

GHM Link Plus US Blood Glucose Monitoring System – 4G-Connected, Rechargeable, and Cloud-Synced
GHM Link Plus US Blood Glucose Monitoring System – 4G-Connected, Rechargeable, and Cloud-Synced
SKU: GHM Link Plus US
Brand: Global Healthcare Medical
Product Overview
Global Healthcare Medical GHM Link Plus US Blood Glucose Monitoring System is a 4G-connected, rechargeable blood glucose meter designed for reliable self-testing at home. The system is intended to quantitatively measure glucose concentration in fresh capillary whole blood samples drawn from the fingertips, supporting individuals who monitor their blood glucose as part of a diabetes management program.
The GHM Link Plus US features a 3.7-volt rechargeable lithium polymer battery that can be charged via USB port, and a built-in 4G module for real-time data transmission. It requires only a small blood sample of about 0.5 µL and delivers results in about 5 seconds. The meter supports a measurement range of 10–600 mg/dL (0.6–33.3 mmol/L) and is calibrated to plasma-equivalent results. It can store up to 500 test results with date and time.
The built-in 4G connectivity enables automatic synchronization of test results to the cloud platform, allowing users to monitor glucose trends anytime and anywhere, and share data with healthcare providers for remote monitoring and timely management. The system uses advanced electrochemical biosensor technology with 8-electrode test strips. The GHM Link Plus US is intended for self-measurement and home use. It is designed for use by a single patient and should not be shared. The system is FDA 510(k) cleared for use in the United States.
Key Features & Benefits
4G Real-Time Data Transmission – Cloud-Synced Monitoring
The GHM Link Plus US combines the accuracy of a blood glucose meter with the power of 4G real-time data transmission, enabling automatic synchronization of test results to the cloud platform for remote monitoring and timely management.
| Feature | Benefit |
|---|---|
| 4G connectivity | High-speed data transmission for real-time monitoring |
| Cloud synchronization | Test results automatically sync to cloud platform |
| Remote monitoring | Healthcare providers can access glucose data remotely |
| Timely management | Real-time data supports proactive diabetes management |
| Data sharing | Share results with healthcare providers or family members |
Fast, Small-Sample Testing – About 5 Seconds with Only 0.5 µL
The GHM Link Plus US requires only a tiny blood sample and delivers results in about 5 seconds, making it convenient for frequent testing throughout the day.
| Feature | Benefit |
|---|---|
| Test time | About 5 seconds per measurement |
| Sample volume | About 0.5 µL – a very small blood sample |
| Sample type | Fresh capillary whole blood |
| Calibration | Plasma-equivalent results |
| No-coding design | Insert a test strip and test without manual code entry |
| Automatic shutoff | 2 minutes after last action to conserve battery |
Wide Measurement Range – 10–600 mg/dL (0.6–33.3 mmol/L)
The GHM Link Plus US supports a broad measurement range, accommodating a wide variety of glucose levels for daily monitoring.
| Parameter | Specification |
|---|---|
| Measurement Range | 10–600 mg/dL (0.6–33.3 mmol/L) |
| Result Calibration | Plasma-equivalent |
| Sample Type | Fresh capillary whole blood |
| Sample Site | Fingertip |
| Test Time | About 5 seconds |
| Hematocrit Range | 20%–70% |
Memory – Up to 500 Test Results with Date and Time
The GHM Link Plus US stores up to 500 test results with date and time, supporting retrospective review of glucose patterns and trends over time.
| Feature | Benefit |
|---|---|
| Memory capacity | Up to 500 results with date and time |
| Data review | Supports retrospective review of glucose trends |
| Cloud sync | Results transfer automatically via 4G |
| Data port | Micro USB for data transfer |
Rechargeable Battery – USB Charging, Reduced Waste
The GHM Link Plus US features a rechargeable 3.7-volt lithium polymer battery that can be charged using a USB port, reducing disposable battery waste and supporting convenient daily use.
| Specification | Detail |
|---|---|
| Battery Type | Rechargeable 3.7V lithium polymer battery |
| Battery Capacity | 250 mAh, 3.7V DC nominal |
| Charging Input | 5V DC, 100 mAh |
| Dimensions | 90.4 mm × 54.5 mm × 27.8 mm |
| Weight | Approximately 53 g |
| Operating Temperature | 41°F to 113°F (5°C to 45°C) |
| Operating Humidity | 10% to 90% non-condensing |
| Hematocrit Range | 20% to 70% |
Advanced Test Strip Technology – 8 Electrodes per Strip
The VivaChek Ino test strips used with the GHM Link Plus US feature 8 electrodes per strip, contributing to reliable results and strong anti-interference capability.
| Feature | Benefit |
|---|---|
| 8 electrodes per strip | Supports reliable results and strong anti-interference |
| Sample volume | About 0.5 µL |
| Test time | About 5 seconds |
| No-coding system | Simplifies the testing process |
Product Specifications
| Specification | Detail |
|---|---|
| Model / SKU | GHM Link Plus US |
| Product Type | Blood Glucose Monitoring System |
| Intended Use | Quantitative measurement of glucose concentration in fresh capillary whole blood |
| Sample Type | Fresh capillary whole blood |
| Sample Site | Fingertip |
| Sample Volume | About 0.5 µL |
| Test Time | About 5 seconds |
| Measurement Range | 10–600 mg/dL (0.6–33.3 mmol/L) |
| Result Calibration | Plasma-equivalent |
| Battery | Rechargeable 3.7V lithium polymer battery, 250 mAh |
| Charging Input | 5V DC, 100 mAh |
| Dimensions | 90.4 mm × 54.5 mm × 27.8 mm |
| Weight | Approximately 53 g |
| Memory | Up to 500 results with date and time |
| Connectivity | 4G; Micro USB data port |
| Automatic Shutoff | 2 minutes after last action |
| Operating Temperature | 41°F to 113°F (5°C to 45°C) |
| Operating Humidity | 10% to 90% non-condensing |
| Hematocrit Range | 20% to 70% |
| Intended User | Self-measurement and home use; single patient use only |
| Test Strips | Compatible with VivaChek Ino test strips |
| Regulatory Clearance | FDA 510(k) cleared |
| Package Options | Single unit / retail package |
Why Users Choose Global Healthcare Medical
| Consideration | GHM Link Plus US |
|---|---|
| 4G connectivity | Real-time data transmission and cloud synchronization |
| Remote monitoring | Share glucose data with healthcare providers |
| Fast results | About 5 seconds per measurement |
| Small sample | About 0.5 µL blood sample required |
| Wide measurement range | 10–600 mg/dL |
| Large memory | Up to 500 results with date and time |
| Rechargeable battery | USB charging reduces disposable battery waste |
| Advanced test strip technology | 8 electrodes per strip for reliable results |
| FDA cleared | 510(k) clearance for the VivaChek Link Plus Blood Glucose Monitoring System |
About Global Healthcare Medical
Global Healthcare Medical is dedicated to connecting healthcare providers, retailers, and distributors with high-quality medical devices designed for reliable performance. The GHM Link Plus US is part of our blood glucose monitoring line, developed to support accurate and connected self-testing for individuals managing their glucose levels at home.
Our focus is on dependable performance, clear documentation, and responsive support for professional and home-care environments.
