Global Healthcare Medical

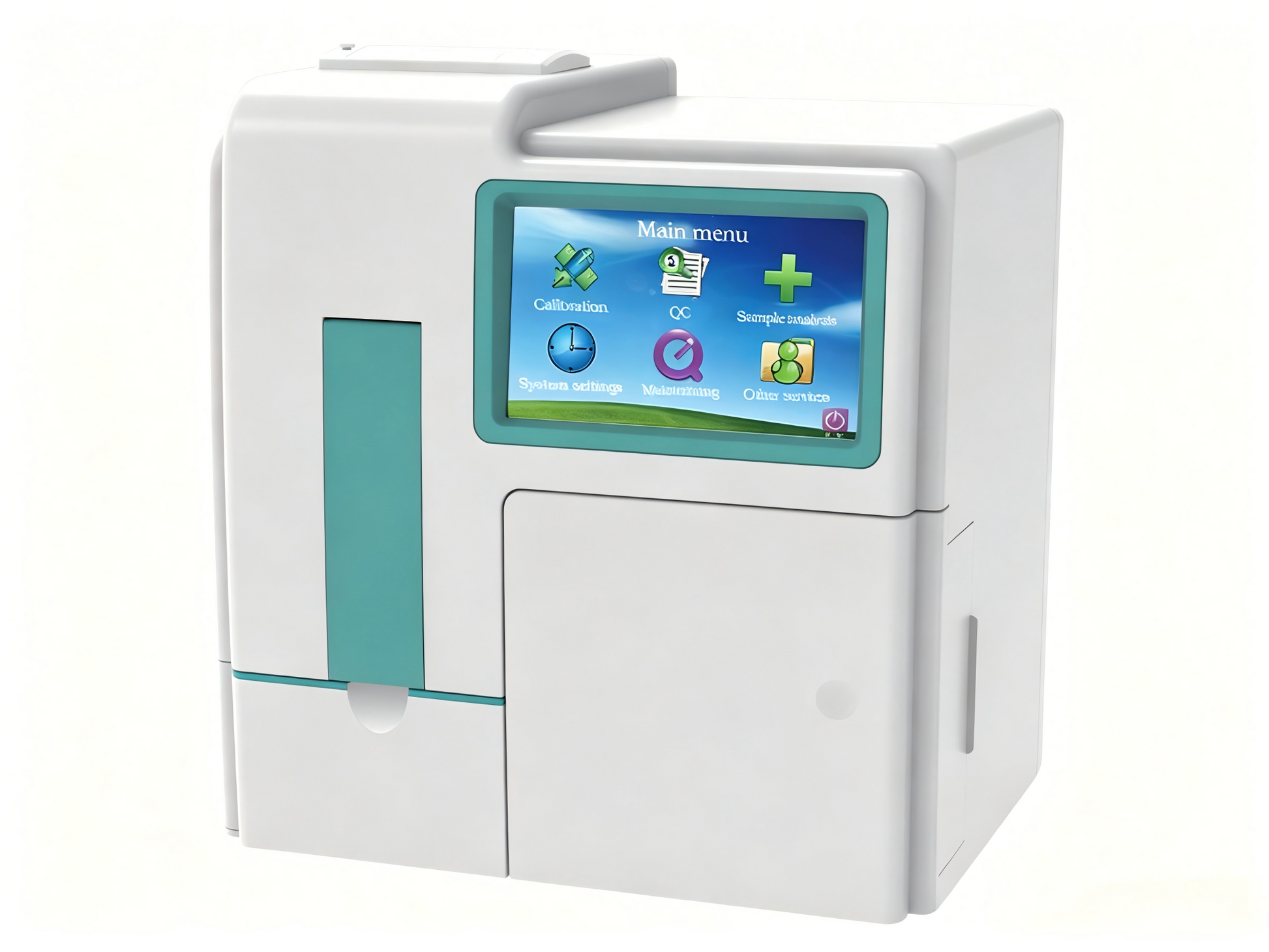

GHM M-900 Semi-auto K Electrolyte Analyzer #

GHM M-900 Semi-auto K Electrolyte Analyzer #

$1,688.00
$1,688.00
Sale Sold out
Shipping calculated at checkout.

Magnesium, Ionized Calcium & pH – Essential for Cardiac & Neuromuscular Care

The GHM M-900 Semi-auto K is designed for serum, plasma, whole blood, and dilute urine samples. It measures potassium (K⁺), sodium (Na⁺), chloride (Cl⁻), ionized calcium (iCa⁺⁺), normalized calcium (nCa), total calcium (TCa), pH, and magnesium (Mg⁺⁺). This makes it the perfect choice for cardiology, neurology, ICUs, and metabolic labs where magnesium monitoring is critical for heart rhythm, muscle function, and neurological stability.

Key Features

  • 7" Color Touch Screen
    Intuitive human‑machine interface – easy to operate with minimal training.

  • Low Cost of Use – Fast Return on Investment
    Consumables cost a fraction of imported alternatives. Most users recover their investment quickly – ideal for budget‑conscious facilities.

  • Comprehensive Parameter Set – Model K Configuration

    • Potassium (K⁺): 0.50–20.00 mmol/L

    • Sodium (Na⁺): 15.0–200.0 mmol/L

    • Chloride (Cl⁻): 15.0–200.0 mmol/L

    • Ionized Calcium (iCa⁺⁺): 0.10–6.00 mmol/L – bioactive calcium for cardiac and nerve function

    • Normalized Calcium (nCa) – pH‑adjusted for accurate assessment

    • Total Calcium (TCa)

    • pH: 4.00–9.00 – acid‑base balance

    • Magnesium (Mg⁺⁺): 0.10–4.00 mmol/L – vital for cardiac conduction, muscle contraction, and enzyme function

  • High Precision Across All Analytes
    Ion‑selective electrode (ISE) technology. Measuring time ≤40 seconds.
    Precision (CV%):

    • K, Na, Cl, Ca⁺⁺ ≤1.5%

    • pH ≤2.0%

    • Mg⁺⁺ ≤3.5% (per M-900 specifications)

  • Compact & Lightweight
    334 × 252 × 365 mm, only 5 kg – saves bench space and reduces shipping costs.

  • Automatic Flushing After Each Sample
    Keeps electrodes clean and extends their life – reduces maintenance.

  • Large Data Storage
    Stores up to 10,000 test results with power failure protection – no data loss.

  • Blockage Prevention & Cross‑Contamination Control
    Original wave flushing + direct injection tube design minimizes clogs and cross‑pollution for accurate results.

  • Error Warnings & Auto Troubleshooting
    Alerts you to issues and guides problem‑solving – improves workflow efficiency.

  • Connectivity Ready
    RS‑232 port for LIS connection. Print QC graphs and statistical parameters for hospital management.

  • Sleep Mode
    Reduces reagent consumption when idle – saves money and extends consumable life.

Specifications (Model K)



Parameter Measuring Range Resolution Precision (CV%)
K⁺ 0.50–20.00 mmol/L 0.01 mmol/L ≤1.5%
Na⁺ 15.0–200.0 mmol/L 0.1 mmol/L ≤1.5%
Cl⁻ 15.0–200.0 mmol/L 0.1 mmol/L ≤1.5%
Ca⁺⁺ (iCa) 0.10–6.00 mmol/L 0.01 mmol/L ≤1.5%
pH 4.00–9.00 0.01 pH ≤2.0%
Mg⁺⁺ 0.10–4.00 mmol/L 0.01 mmol/L ≤3.5%

  • Sample types: Serum, plasma, whole blood, dilute urine

  • Analysis method: Ion‑selective electrode (ISE)

  • Measuring time: ≤40 seconds

  • Printer: Internal thermal printer

  • Storage: Up to 10,000 results

  • Working environment: 5–40°C, 30–85% RH

  • Power supply: AC 100‑240V, 50/60Hz

  • Dimensions: 334 × 252 × 365 mm

  • Net weight: 5 kg

Why choose Model K?
Magnesium is often overlooked but critical for cardiac arrhythmias, pre‑eclampsia, and neuromuscular disorders. The M-900 Semi-auto K delivers accurate magnesium alongside ionized calcium and pH – all in one compact, affordable analyzer. Ideal for cardiology wards, ICUs, and metabolic clinics.

View full details
