GHM M16 US Mesh Nebulizer – Portable, Battery or USB Powered, ≤3 μm Particle Size, ≤50 dB Quiet Operation
GHM M16 US Mesh Nebulizer – Portable, Battery or USB Powered, ≤3 μm Particle Size, ≤50 dB Quiet Operation
SKU: GHM M16 US
Brand: Global Healthcare Medical
Product Overview

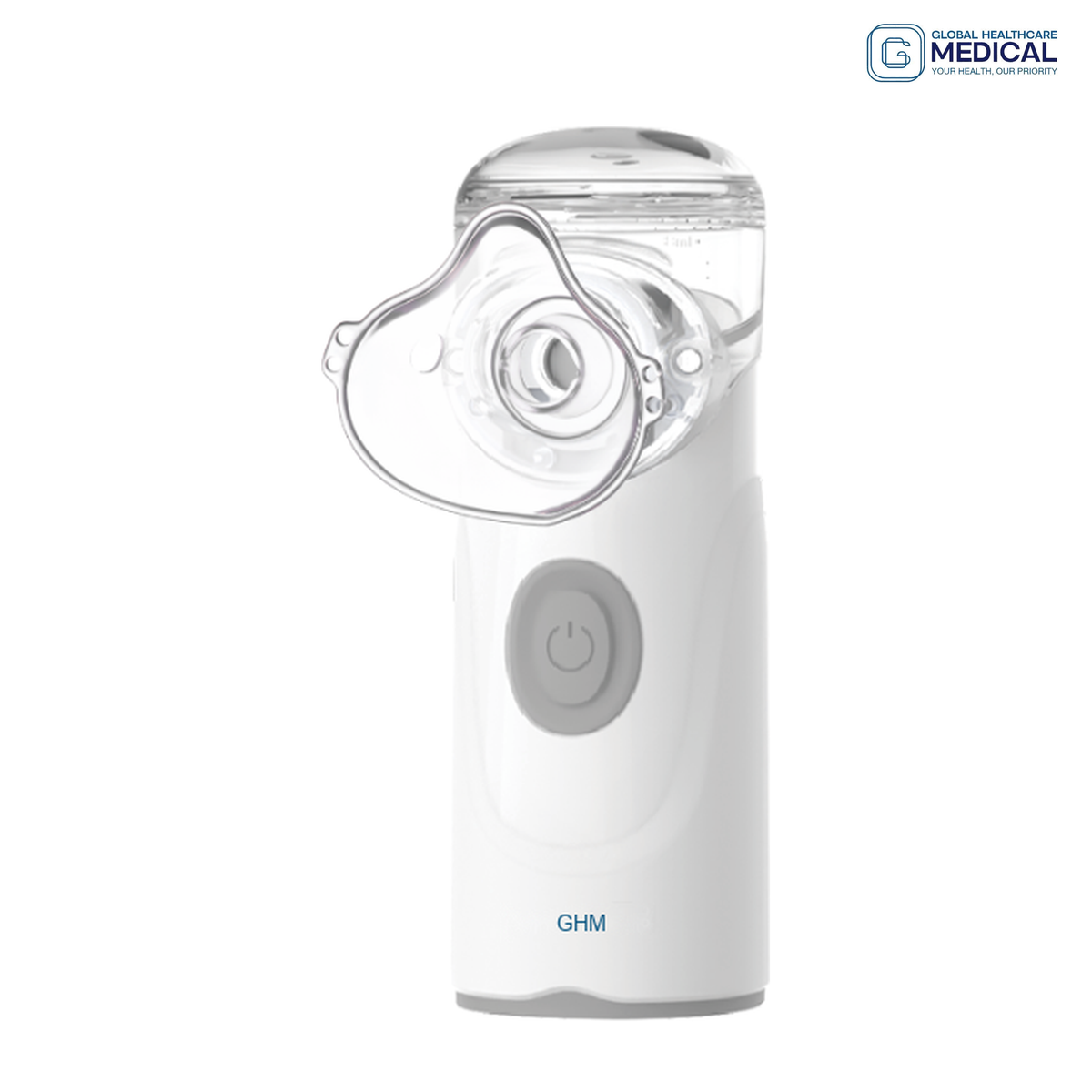

Global Healthcare Medical GHM M16 US Mesh Nebulizer is a portable, handheld mesh nebulizer designed to convert liquid medication into a fine aerosol mist for inhalation. The device utilizes vibrating mesh technology to produce consistently small particles, making it suitable for use in hospitals, clinics, and home healthcare settings.
The GHM M16 US is powered by a 3.7V 800 mAh lithium battery or a USB cable (5V), offering flexible power options for convenient use at home or on the go. The nebulizer features a nebulization rate of ≥0.2 mL/min, a particle size of ≤3 μm (EN 13544-1), and a medication bottle capacity of ≤8 mL. It operates at a noise level of ≤50 dB, providing quiet and comfortable operation. The device is lightweight (approximately 138 g excluding batteries) and compact (43 × 119 × 60 mm), making it easy to carry and store.
The system is designed for professional and home use. The device provides efficient and reliable nebulization with simple operation.
This product is intended for the nebulization of liquid medication. For professional and home use.
Key Features & Benefits
Vibrating Mesh Technology – Efficient and Consistent Nebulization
The GHM M16 US uses vibrating mesh technology to convert liquid medication into a fine aerosol mist. This technology provides efficient and consistent nebulization with a particle size of ≤3 μm, suitable for inhalation.
| Feature | Benefit |
|---|---|
| Mesh technology | Efficient and consistent aerosol generation |
| Particle size | ≤3 μm (EN 13544-1) |
| Nebulization rate | ≥0.2 mL/min |
| Medication bottle capacity | ≤8 mL |
| Reliable performance | Consistent mist output |
Flexible Power Options – Battery or USB
The GHM M16 US can be powered by a 3.7V 800 mAh lithium battery or a USB cable (5V), providing flexibility for use in different settings. The battery supports approximately 300 charge cycles.
| Feature | Benefit |
|---|---|
| Lithium battery | 3.7V 800 mAh for portable use |
| USB power | 5V USB cable for continuous operation |
| Battery life | 300 charge cycles |
| Power consumption | Approximately 2 W |
| Flexible use | Suitable for home and clinical settings |
Quiet Operation – Comfortable for All Users
The GHM M16 US operates at a noise level of ≤50 dB, providing quiet and comfortable nebulization. This feature is particularly beneficial for pediatric and sensitive users.
| Feature | Benefit |
|---|---|
| Noise level | ≤50 dB |
| Quiet operation | Comfortable for all users |
| Suitable for children | Gentle and non-intrusive |
| User-friendly | Reduces disturbance during use |
Compact and Lightweight – Portable Design
The GHM M16 US is compact (43 × 119 × 60 mm) and lightweight (approximately 138 g excluding batteries), making it easy to carry and store. Its portable design supports use at home, in clinics, or while traveling.
| Feature | Benefit |
|---|---|
| Compact dimensions | 43 × 119 × 60 mm |
| Lightweight | Approximately 138 g (excluding batteries) |
| Portable | Easy to carry and store |
| User-friendly | Simple to handle and operate |
Simple Operation – Professional and Home Use
The GHM M16 US is designed for ease of use with intuitive controls. The user simply fills the medication bottle, connects the mouthpiece or mask, and turns on the device.
| Step | Action |
|---|---|
| 1 | Add liquid medication to the medication bottle (≤8 mL) |
| 2 | Connect the mouthpiece or mask |
| 3 | Press the power button to start nebulization |
| 4 | Breathe normally until nebulization is complete |
Product Specifications
| Specification | Detail |
|---|---|
| Model / SKU | GHM M16 US |
| Product Type | Mesh Nebulizer |
| Power Source | 3.7V 800 mAh lithium battery or USB Cable (5V) |
| Power Consumption | Approximately 2 W |
| Nebulization Rate | ≥0.2 mL/min |
| Particle Size | ≤3 μm (EN 13544-1) |
| Capacity of Medication Bottle | ≤8 mL |
| Noise Level | ≤50 dB |
| Battery Life | 300 charge cycles |
| External Dimensions | 43 (W) × 119 (H) × 60 (L) mm |
| Weight | Approximately 138 g (excluding batteries) |
| Intended Use | Nebulization of liquid medication; professional and home use |
| Package Options | Nebulizer, medication bottle, mouthpiece, mask, USB cable, user manual |
Why Clinical Laboratories Choose Global Healthcare Medical
| Consideration | GHM M16 US |
|---|---|
| Mesh technology | Efficient and consistent nebulization |
| Small particle size | ≤3 μm for inhalation |
| Flexible power | Battery or USB operation |
| Quiet operation | ≤50 dB noise level |
| Compact and lightweight | Portable design for home and clinical use |
| Battery life | 300 charge cycles |
| Medication capacity | ≤8 mL |
| Simple operation | Intuitive controls for all users |
| Professional and home use | Suitable for clinical and home settings |
| Reliable performance | Consistent mist output |
About Global Healthcare Medical
Global Healthcare Medical is dedicated to connecting clinical laboratories, hospitals, and healthcare distributors with high-quality medical devices designed for reliable performance. The GHM M16 US Mesh Nebulizer is part of our respiratory care product line, developed to support efficient nebulization in professional and home settings.
Our focus is on dependable performance, clear documentation, and responsive support for clinical and laboratory environments.
