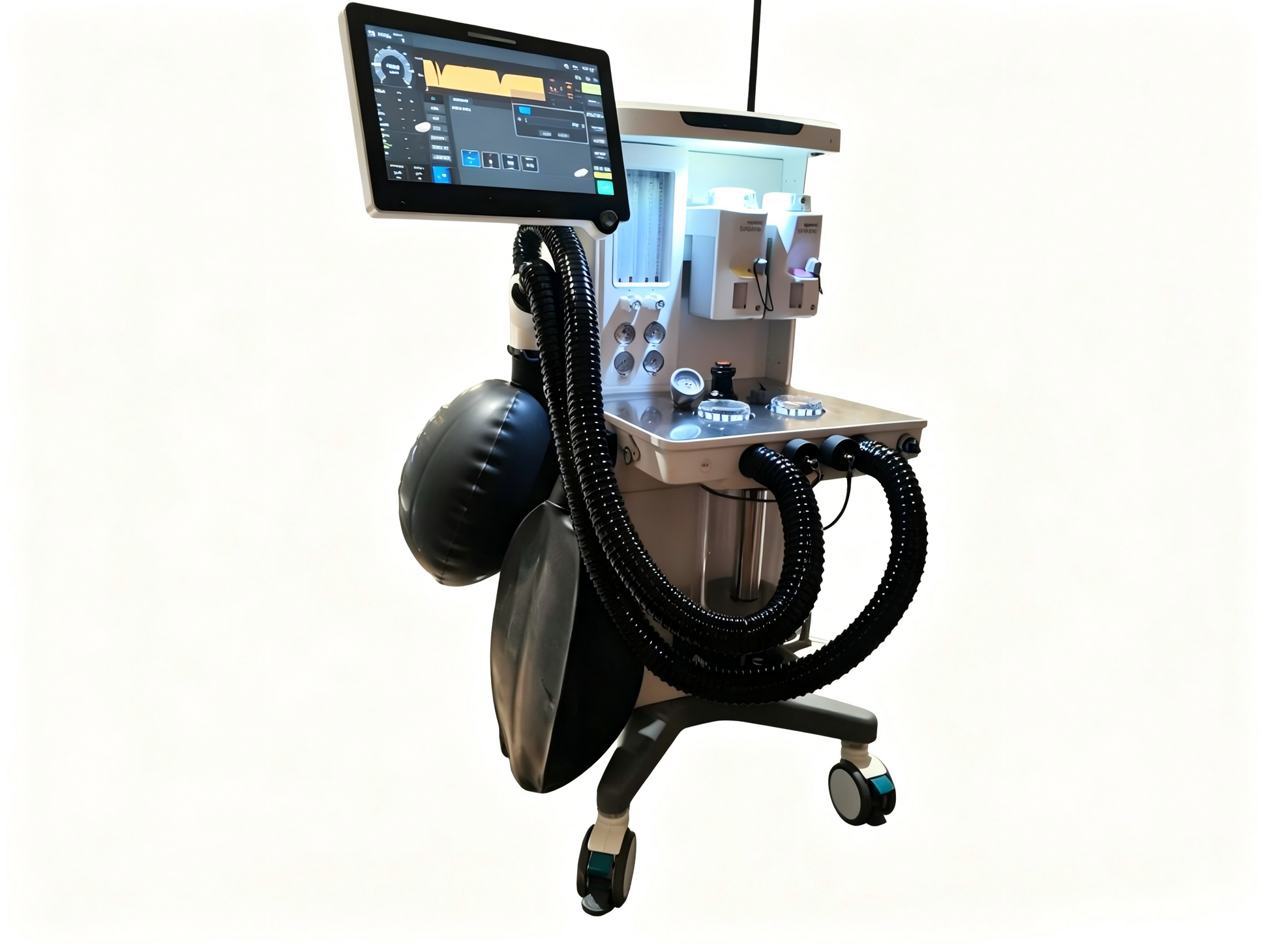

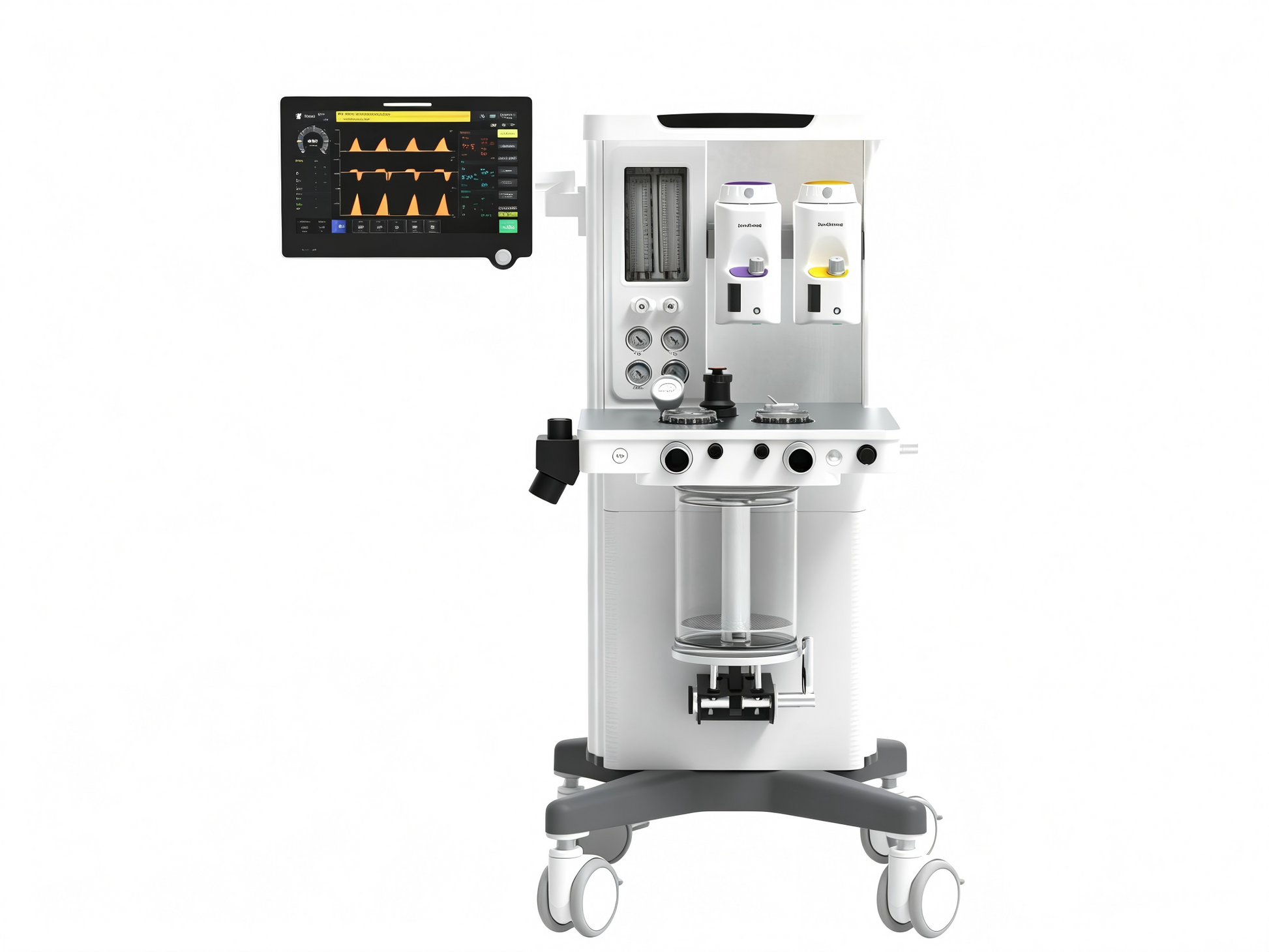

GHM M800 Equine Anesthesia Machine #

The GHM M800 Equine Anesthesia Machine delivers complete anesthesia solutions for horses, large animals, and their young—covering a weight range from 5 kg to 1,800 kg. With an integrated ventilator design, electric drive mechanism (no driving gas required), and a 15.6-inch high-resolution touchscreen, the GHM M800 streamlines complex procedures while reducing operational costs.

Key Features:

• One Machine for the Entire Barn — From Foal to Full‑Grown Horse
  With a tidal volume range of 50 ml to 19 L, the GHM M800 safely anesthetizes patients from 5 kg all the way up to 1,800 kg. Whether you're working with a newborn foal or a 1,800 kg draft horse, this single machine handles them all—no need for multiple units or circuit changes.

• No Driving Gas, Lower Operating Costs
  The GHM M800 uses an electrically driven and controlled mechanism—unlike many large‑animal machines that require a separate driving gas source. You save on consumable gases and reduce long‑term operational expenses, all while getting the ventilation power you need.

• Up to 1,000 L/min Inspiratory Flow — For Even the Most Demanding Cases
  Large equine patients require high flow rates, and the GHM M800 delivers with a maximum inspiratory flow of 1,000 L/min. Whether you're managing a compromised airway or a prolonged procedure, the GHM M800 ensures adequate ventilation under challenging conditions.

• 10 Ventilation Modes — From Controlled to Support Breathing
  From standard VCV and PCV to advanced AVS (Adaptive Ventilation Strategy) and VS (Volume Support with intelligent triggering and backup rate), the GHM M800 gives you the flexibility to match the mode to the patient. VS mode synchronizes with spontaneous breathing and includes a backup respiratory rate to prevent hypoventilation. AVS mode automatically adjusts ventilation based on end‑tidal CO₂ for optimal gas exchange.

• 15.6‑inch HD Touchscreen — See Everything at a Glance
  The large 1920 x 1080 display puts all critical parameters and waveforms in clear view. Customize the screen layout to match your clinical workflow—no more squinting at small screens or toggling through endless menus during a procedure.

• Precise Oxygen Delivery — Configurable for Your Practice
  Choose between O₂/Air or O₂/N₂O flowmeters, paired with an oxygen sensor for accurate concentration delivery. Two gas cylinder yokes come standard, and the machine can mount two vaporizers simultaneously for rapid switching between anesthetic agents.

• Expandable Monitoring — Add What You Need
  The GHM M800 supports optional mainstream EtCO₂, mainstream anesthetic gas, sidestream EtCO₂ modules, and additional agent monitoring. Start with the core configuration and upgrade as your practice grows.

• Built for the Clinic — Anesthetic‑Resistant Work Surface
  The work surface is designed to resist damage from anesthetic agents and daily wear, keeping your GHM M800 looking professional and performing reliably for years.

Conclusion / Call to Action:

Ready to upgrade your large‑animal anesthesia capabilities? The GHM M800 combines veterinary‑specific engineering with advanced ventilation technology to help you deliver safer, more efficient care for equine patients of all sizes.
