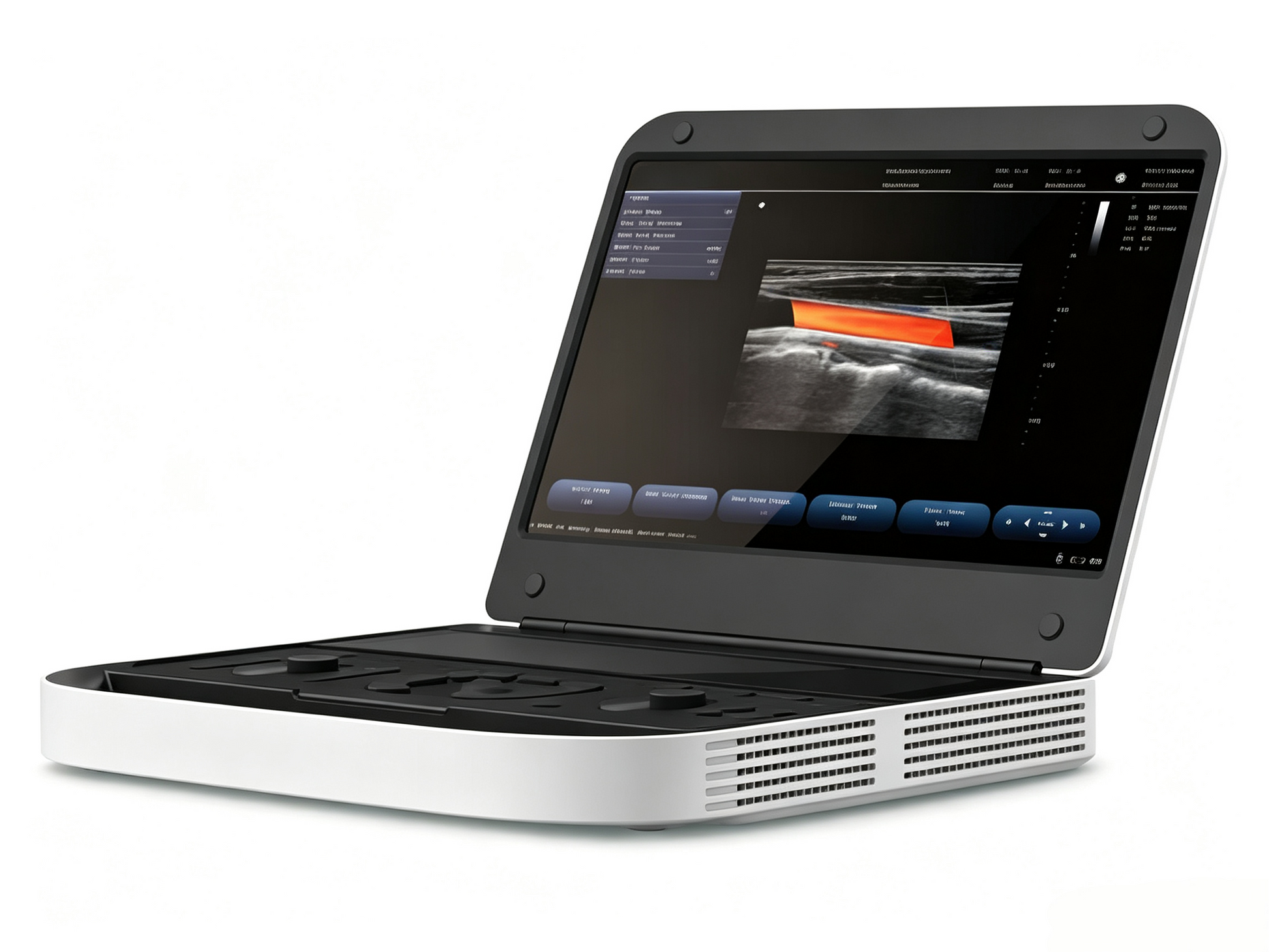

GHM-ML151A Premium Diagnostic Ultrasound | High-End Portable Color Doppler System
GHM-ML151A Premium Diagnostic Ultrasound | High-End Portable Color Doppler System
Premium portable color Doppler ultrasound with 15.6" anti-glare display, 12.6" touchscreen, GPU+CPU architecture, and 16-beam processing. Ideal for cardiology, OB/GYN, vascular, and general imaging.
The Global Healthcare Medical GHM-ML151A Premium Diagnostic Ultrasound System is a high-end portable color Doppler ultrasound system that redefines diagnostic imaging performance. Built on a powerful GPU+CPU parallel computing architecture with advanced beamforming technologies—including plane wave, ZST domain focusing, and pencil focusing—this system delivers exceptional image quality, high frame rates, and diagnostic confidence across the full spectrum of clinical applications.
Featuring a dual-screen design with a 15.6-inch anti-glare LED display and a 12.6-inch multi-function touchscreen, the GHM-ML151A combines the portability of a laptop-style system with the advanced imaging capabilities of a high-end cart-based system. With support for two simultaneous probe connections, 16-beam parallel processing, and a comprehensive suite of imaging modes including B, CF, M, PW, CW, PDI, DPDI, TDI, 3D, 4D, contrast imaging, and elastography, this system is the ultimate diagnostic tool for modern clinical practice.
This device is intended for professional use in clinical and diagnostic settings. Not a substitute for professional medical diagnosis.
Key Features
🖥️ Dual-Screen Design for Enhanced Workflow
The GHM-ML151A features a dual-screen display system that revolutionizes the ultrasound workflow:
-
15.6-inch anti-glare LED display (1920×1080) – Delivers crisp, high-resolution diagnostic images
-
12.6-inch multi-function touchscreen – Provides intuitive control over system settings, measurements, and annotations
⚡ GPU+CPU Parallel Computing Architecture
Built on a GPU+CPU parallel computing architecture, the GHM-ML151A achieves real-time data transfer rates of up to 3.2Gb/s. This powerful processing capability enables:
-
16-beam parallel processing – Excellent temporal resolution and higher frame rates
-
Advanced beamforming technologies – Plane wave, ZST domain focusing, and pencil focusing
-
Superior computational power – Supports the most demanding imaging algorithms
🔬 Comprehensive Imaging Mode Suite
The GHM-ML151A supports an extensive range of imaging modes for complete diagnostic coverage:
| Mode | Application |
|---|---|
| B Mode | Standard 2D grayscale imaging |
| CF (Color Flow) | Real-time blood flow visualization |
| M Mode | Motion mode for cardiac and fetal assessment |
| PW (Pulsed Wave Doppler) | Spectral analysis of blood flow velocity |
| CW (Continuous Wave Doppler) | High-velocity flow assessment |
| PDI (Power Doppler Imaging) | High-sensitivity flow detection |
| DPDI (Directional Power Doppler) | Flow detection with direction information |
| TDI (Tissue Doppler Imaging) | Quantitative assessment of myocardial motion |
| 3D/4D Imaging | Volumetric and real-time 3D imaging |
| Contrast Imaging | Microangiography with advanced quantitative analysis |
| Elastography | Tissue stiffness assessment |
| Wide Scene Imaging | Panoramic field-of-view |
| Puncture Mode | Guided biopsy and intervention |
🖼️ Advanced Imaging Technologies
The GHM-ML151A incorporates cutting-edge imaging technologies for superior image quality:
-
Echo Enhancement Technology – Adaptive signal processing with intelligent echo detection analyzes echo signals through a unique intelligent data sensing method, improving image resolution and uniformity
-
Tissue Harmonic Imaging (THI) – Uses second harmonics generated by tissue boundary layers to significantly increase contrast resolution and improve image quality
-
Composite Imaging Technology – Multi-angle spatial compounding enhances contrast and improves resolution
-
Contrast Imaging – Second harmonic and nonlinear fundamental wave imaging with microangiography function and advanced quantitative analysis software
-
Elastography Technology – Latest elastography technology improves sensitivity, reduces operator dependence, and delivers higher frame rates, better stability, and repeatability
-
One-Click Optimization – Automatic structure detection improves image quality instantly
-
Rich Echo Beamforming – Uses echo signals from traditionally ignored adjacent beams to form thinner, stronger imaging beams for better out-of-focus resolution and deeper penetration
📐 Anatomical M-Mode Technology
The GHM-ML151A features anatomical M-mode technology that allows users to obtain accurate anatomical observations by freely placing sampling lines at any angle. Up to three sampling lines can be displayed simultaneously for comprehensive assessment.
🔄 Versatile Probe Compatibility & Connectivity
The GHM-ML151A supports two simultaneous probe connections with a wide range of probe options:
| Probe Type | Applications |
|---|---|
| Convex Array | Abdominal and obstetric imaging |
| Linear Array | Vascular, small parts, and thyroid imaging |
| Micro Convex Array | Pediatric and cardiac imaging |
| Transvaginal Probe | Gynecological examinations |
| Phased Array Probe | Cardiac and deep abdominal imaging |
| 4D Volume Probe | Volumetric imaging |
🔗 Comprehensive Connectivity & Data Management
The GHM-ML151A offers extensive connectivity options for seamless integration:
-
DICOM 3.0 – PACS integration for medical digital imaging and communications
-
USB ports – External storage and accessory support
-
Network connectivity – Data transmission and remote consultation
-
VGA/Video output – External display connectivity
⌨️ Ergonomic Design for Streamlined Workflow
The GHM-ML151A features an ergonomic key operation design with:
-
Silicone interactive backlit keyboard – Comfortable, efficient operation in any lighting condition
-
Trackball – Precise cursor control
-
Intuitive touchscreen interface – Quick access to system settings and measurements
Specifications
| Feature | Specification |
|---|---|
| Product Type | Premium Portable Color Doppler Ultrasound System |
| Model | GHM-ML151A |
| Display | 15.6" Anti-glare LED (1920×1080) + 12.6" Multi-function Touchscreen |
| Architecture | GPU + CPU parallel computing |
| Probe Connectors | 2 |
| Beam Processing | 16-beam parallel processing |
| Imaging Modes | B, CF, M, PW, CW, PDI, DPDI, TDI, 3D, 4D, Contrast, Elastography, Wide Scene, Puncture |
| Advanced Features | THI, Composite Imaging, Anatomical M-Mode, One-Click Optimization, Echo Enhancement |
| Data Transfer Rate | Up to 3.2Gb/s |
| Connectivity | DICOM 3.0, USB, Network, VGA/Video |
| Design | Portable, ergonomic, silicone backlit keyboard, trackball |
| Applications | Cardiology, OB/GYN, Vascular, Abdominal, Small Parts, MSK, Urology, Pediatrics |
Applications
The GHM-ML151A Premium Diagnostic Ultrasound System is suitable for:
-
Cardiology – Cardiac imaging, TDI for myocardial motion assessment
-
Obstetrics & Gynecology – Fetal development, 3D/4D imaging
-
Vascular – Carotid, peripheral vascular assessment
-
Abdominal – Liver, gallbladder, pancreas, kidney imaging
-
Small Parts – Thyroid, breast, testes
-
Musculoskeletal (MSK) – Tendon, ligament, muscle evaluation
-
Urology – Kidney, bladder, prostate
-
Pediatrics – Safe, non-invasive imaging
Why Choose the GHM-ML151A?
| Standard Portable Ultrasound Systems | Global Healthcare Medical GHM-ML151A |
|---|---|
| Single display | Dual-screen (15.6" LED + 12.6" touchscreen) |
| Limited imaging modes | 15+ modes including TDI, 3D/4D, contrast, elastography |
| Standard processing | GPU+CPU architecture with 16-beam processing |
| Basic image quality | Echo enhancement, THI, composite imaging, elastography |
| Limited connectivity | DICOM 3.0, USB, network, VGA/Video |
| Standard probes | 6+ probe types including 4D volume |
FAQ
Q: What is the GHM-ML151A Premium Diagnostic Ultrasound System?
A: The GHM-ML151A is a high-end portable color Doppler ultrasound system featuring GPU+CPU parallel computing architecture, dual-screen design, and comprehensive imaging modes including TDI, 3D/4D, contrast imaging, and elastography.
Q: What are the key imaging modes?
A: The system supports B, CF, M, PW, CW, PDI, DPDI, TDI, 3D, 4D, contrast imaging, elastography, wide scene imaging, and puncture mode.
Q: What is the display configuration?
A: The GHM-ML151A features a 15.6-inch anti-glare LED display (1920×1080) and a 12.6-inch multi-function touchscreen.
Q: How many probes can be connected simultaneously?
A: The system supports two simultaneous probe connections.
Q: What advanced imaging technologies are included?
A: The GHM-ML151A includes echo enhancement technology, tissue harmonic imaging (THI), composite imaging, contrast imaging, elastography, one-click optimization, and rich echo beamforming.
Q: What is the data transfer rate?
A: The system achieves real-time data transfer rates of up to 3.2Gb/s based on GPU architecture.
Q: What clinical applications is the system suitable for?
A: The GHM-ML151A is suitable for cardiology, obstetrics & gynecology, vascular, abdominal, small parts, musculoskeletal, urology, and pediatrics.
Q: Does the system support DICOM?
A: Yes. The GHM-ML151A supports DICOM 3.0 for PACS integration and medical digital imaging communications.
Q: What probe types are available?
A: Available probe types include convex, linear, micro convex, transvaginal, phased array, and 4D volume probes.
