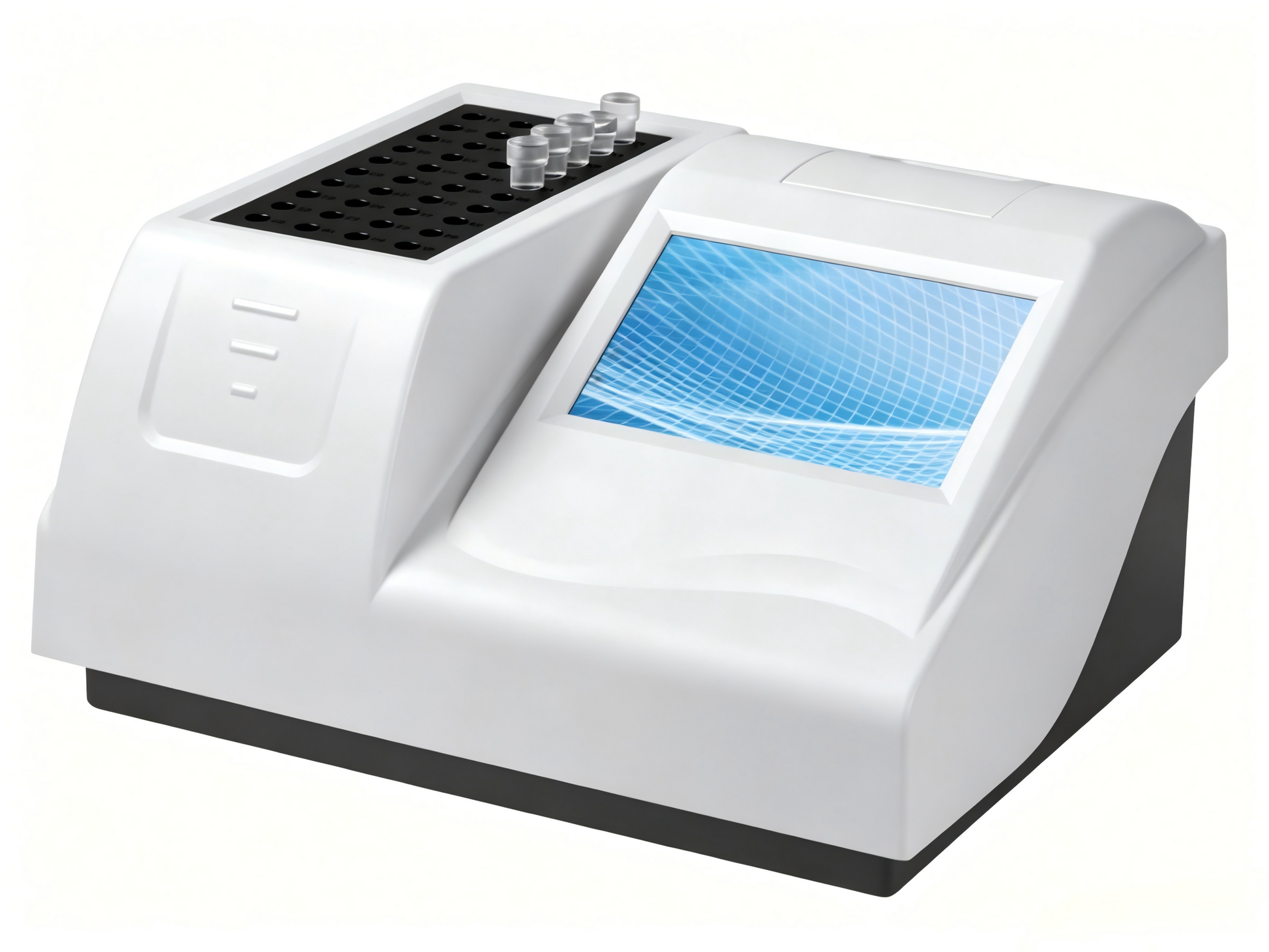

GHM Oron-200 ESR Analyzer #

Reliable ESR Measurement
Uses infrared sensor technology and the standard Westergren method – delivers accurate erythrocyte sedimentation rate results for infection and inflammation screening.

Multiple Channel Options
Available in 10, 20, or 40 channels – choose the model that fits your lab’s workload.

High Throughput
Processes up to 80 samples per hour – ideal for outpatient clinics, emergency departments, and small to mid‑sized labs.

Flexible Loading & Random Access
Supports random loading of samples – no need to run batches; add STAT samples anytime.

Fast Measuring Time
Selectable measuring time: 30 minutes or 60 minutes – faster results when you need them.

Sample Interval
Only 3 minutes between sample starts – efficient continuous operation.

Wide Measurement Range
0–140 mm/h – covers normal to markedly elevated ESR values.

Automatic Temperature Compensation
Compensates to 18°C automatically (selectable) – ensures consistent results regardless of room temperature.

High Reading Resolution
Reading resolution: 0.2 mm | Result resolution: 1 mm/1h or 1 mm/2h – precise reporting.

User‑Friendly Touchscreen
Color LCD screen with touch input – intuitive operation and result display.

Built‑In Thermal Printer
Print results directly from the analyzer – no external computer needed.

Connectivity
RS‑232 serial port – connect to LIS or external systems.

Universal Power Supply
AC 100–240V, 50/60Hz – works anywhere in the world.

Compact & Lightweight

• Dimensions: 365mm (L) × 300mm (W) × 180mm (H)

• Net weight: only 11 kg – easy to place on any bench and move as needed.

Reliable Operating Conditions
Temperature: 10–30°C | Humidity ≤80% – suitable for typical lab environments.

✅ Why Choose the Oron‑200?

The Oron‑200 ESR Analyzer delivers affordable, accurate Westergren ESR with the convenience of random loading, touchscreen operation, and multiple channel configurations (10/20/40) – perfect for clinics and labs that need reliable inflammation markers without complexity.
