GHM Pro US Multi-function Monitoring System – Professional-Grade Connectivity with Color Touch Screen, 10,000-Patient Memory, and LAN/WiFi/Bluetooth Data Transfer
GHM Pro US Multi-function Monitoring System – Professional-Grade Connectivity with Color Touch Screen, 10,000-Patient Memory, and LAN/WiFi/Bluetooth Data Transfer
SKU: GHM Pro US
Brand: Global Healthcare Medical
Product Overview
Global Healthcare Medical GHM Pro US Multi-function Monitoring System is a professional-grade, multi-parameter monitoring device engineered for clinical environments and point-of-care testing. The system is designed to quantitatively measure glucose, ketone, and uric acid levels in fresh whole blood samples, supporting healthcare professionals in making timely, data-driven treatment decisions.

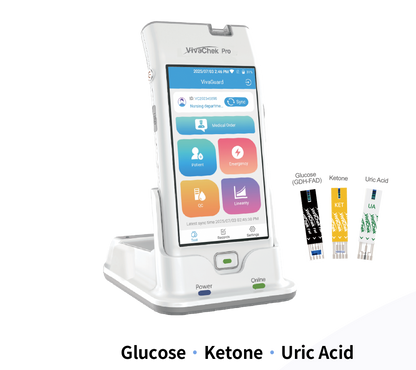

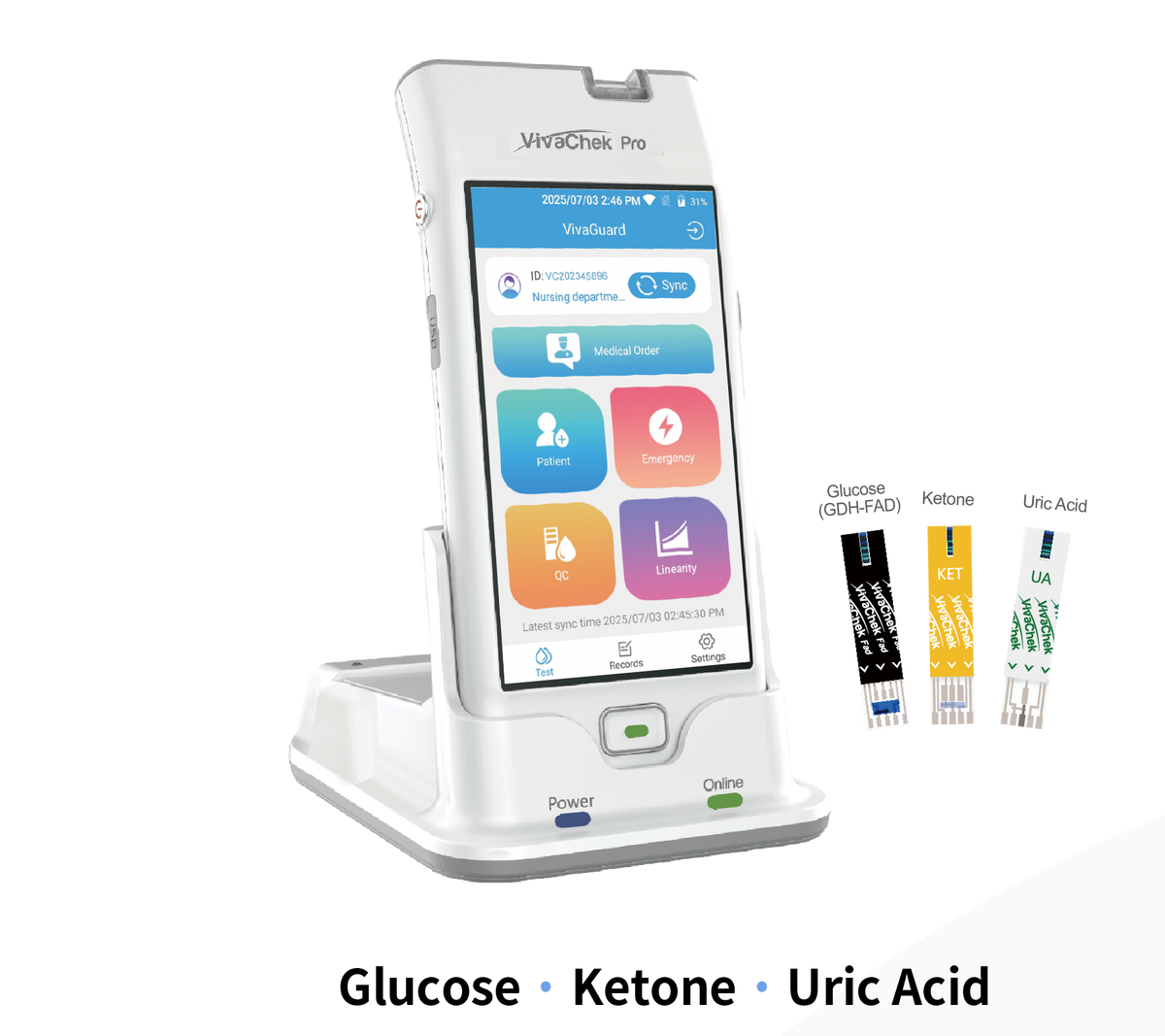

The GHM Pro US features a 4.5-inch color touch screen, an integrated infrared barcode scanner, and a one-click strip ejector, delivering an intuitive and hygienic user experience. With a rechargeable 1800mAh lithium polymer battery providing up to 8 hours of operation, the system is built to support continuous use throughout the workday.
Built-in LAN, WiFi, and Bluetooth connectivity enables seamless integration with Hospital Information Systems (HIS), Laboratory Information Systems (LIS), and Electronic Medical Records (EMR), facilitating real-time data upload and remote management. The system supports user authentication for enhanced data security and compliance, making it a reliable solution for hospitals, clinics, and professional healthcare settings.
Key Features & Benefits
Multi-Parameter Testing – Glucose, Ketone, and Uric Acid
The GHM Pro US consolidates three essential clinical testing functions into a single professional-grade device. The system delivers accurate and reliable readings for glucose, ketone, and uric acid levels, streamlining workflow in clinical environments.
| Parameter | Measurement Range | Test Time | Sample Volume | Coding |
|---|---|---|---|---|
| Glucose (GDH-FAD) | 10–600 mg/dL (0.6–33.3 mmol/L) | 5 seconds | 0.5 μL | Auto-coding |
| Glucose (GOD) | 10–600 mg/dL (0.6–33.3 mmol/L) | 5 seconds | 0.5 μL | Auto-coding |
| Ketone | 0.1–8.0 mmol/L | 10 seconds | 0.8 μL | Auto-coding |
| Uric Acid | 179–1190 μmol/L | 15 seconds | 1.5 μL | Code strip |
Seamless Data Transmission – LAN, WiFi, and Bluetooth Connectivity
The GHM Pro US supports multiple data transmission channels, enabling rapid upload of test results to hospital systems and facilitating quick clinical decision-making. Healthcare professionals can access and manage Point-of-Care data efficiently through EMR/HIS/LIS integration.
| Feature | Benefit |
|---|---|
| LAN + WiFi + Bluetooth | Multiple connectivity options for flexible data transfer |
| HIS/LIS/EMR integration | Seamless data exchange with existing hospital systems |
| Real-time data upload | Quick test result transmission for timely treatment decisions |
| Remote management | Enables centralized monitoring and data oversight |
Large-Capacity Memory – 10,000 Patients / 20,000 Tests
The GHM Pro US is equipped with an extensive memory system capable of storing up to 10,000 patient records, 20,000 test results, 10,000 QC tests, and 2,000 operator profiles, supporting high-volume clinical testing environments.
| Memory Type | Capacity |
|---|---|
| Patient records | 10,000 patients |
| Test results | 20,000 tests |
| QC tests | 10,000 QC tests |
| Operator profiles | 2,000 operators |
4.5-Inch Color Touch Screen – Intuitive Operation
The GHM Pro US features a 4.5-inch color touch screen, providing a clear and responsive interface for efficient navigation. Healthcare professionals can easily access patient data, initiate tests, and manage system settings with minimal training.
Infrared Barcode Scanner – Streamlined Workflow
An integrated infrared barcode scanner allows for rapid scanning of test strips, patient wristbands, or sample labels, reducing manual data entry errors and accelerating the testing process.
Strip Ejector – Enhanced Hygiene and Safety
The GHM Pro US includes a one-click strip ejector, allowing users to release used test strips without direct contact. This feature supports infection control protocols and reduces contamination risks in clinical environments.
User Authentication – Enhanced Data Security
The GHM Pro US supports user authentication, helping healthcare facilities maintain data security, accountability, and compliance with clinical documentation standards.
Portable and Rechargeable – Built for Clinical Mobility
The GHM Pro US features a rechargeable lithium polymer battery with ≥1800mAh capacity, providing up to 8 hours of continuous operation. The system is powered via a 100V-240V AC adapter with 5V input charge voltage, supporting flexible use across different clinical settings.
| Specification | Detail |
|---|---|
| Dimensions | 158.4 mm × 73.2 mm × 21.2 mm |
| Weight | 150 g (without docking unit) |
| Battery | Rechargeable, ≥1800mAh, 3.7V DC nominal, lithium polymer |
| Battery Life | 8 hours |
| Power Supply | 100V-240V AC~, 50Hz/60Hz, 0.35A Max |
| Data Transfer | LAN + WiFi + Bluetooth |
Product Specifications
| Specification | Detail |
|---|---|
| Model / SKU | GHM Pro US |
| Product Type | Multi-function Monitoring System |
| Intended Use | Quantitative measurement of glucose, ketone, and uric acid in fresh whole blood |
| Parameters Tested | Glucose, Ketone, Uric Acid |
| Testing Method | Electrochemical Biosensor |
| Sample Type | Fresh whole blood (capillary, venous, arterial, neonatal) |
| Glucose (GDH-FAD) Range | 10–600 mg/dL (0.6–33.3 mmol/L) |
| Glucose (GOD) Range | 10–600 mg/dL (0.6–33.3 mmol/L) |
| Ketone Range | 0.1–8.0 mmol/L |
| Uric Acid Range | 179–1190 μmol/L |
| Glucose Test Time | 5 seconds |
| Ketone Test Time | 10 seconds |
| Uric Acid Test Time | 15 seconds |
| Glucose Sample Volume | 0.5 μL |
| Ketone Sample Volume | 0.8 μL |
| Uric Acid Sample Volume | 1.5 μL |
| Glucose Hematocrit Range | 0–70% (GDH-FAD); 20–70% (GOD) |
| Ketone Hematocrit Range | 20–65% |
| Uric Acid Hematocrit Range | 30–55% |
| Screen | 4.5-inch color touch screen |
| Barcode Scanner | Infrared barcode scanner |
| Strip Ejector | Yes |
| User Authentication | Yes |
| Memory | 10,000 patients / 20,000 tests / 10,000 QC tests / 2,000 operators |
| Data Transfer | LAN + WiFi + Bluetooth |
| Battery | Rechargeable, ≥1800mAh, 3.7V DC nominal, lithium polymer |
| Battery Life | 8 hours |
| Power Supply | 100V-240V AC~, 50Hz/60Hz, 0.35A Max |
| Dimensions | 158.4 mm × 73.2 mm × 21.2 mm |
| Weight | 150 g (without docking unit) |
| Integration | HIS / LIS / EMR compatible |
| Intended User | Professional healthcare use |
| Test Strips | Glucose (GDH-FAD / GOD), ketone, and uric acid test strips |
Why Clinical Professionals Choose Global Healthcare Medical
| Consideration | GHM Pro US |
|---|---|
| Multi-parameter testing | One device for glucose, ketone, and uric acid |
| Hospital system integration | Seamless HIS/LIS/EMR connectivity |
| Real-time data transmission | LAN, WiFi, and Bluetooth for instant result sharing |
| Large memory capacity | 10,000 patients / 20,000 tests / 10,000 QC tests |
| User authentication | Enhanced data security and compliance |
| Color touch screen | 4.5-inch intuitive interface |
| Infrared barcode scanner | Reduced manual entry errors |
| Strip ejector | Improved hygiene and infection control |
| Rechargeable battery | Up to 8 hours of continuous operation |
| Portable design | 150 g lightweight, suitable for bedside testing |
About Global Healthcare Medical
Global Healthcare Medical is dedicated to connecting healthcare providers, retailers, and distributors with high-quality medical devices designed for reliable performance. The GHM Pro US is part of our professional monitoring line, developed to support accurate, connected, and efficient point-of-care testing in clinical environments.
Our focus is on dependable performance, clear documentation, and responsive support for professional and home-care environments.
