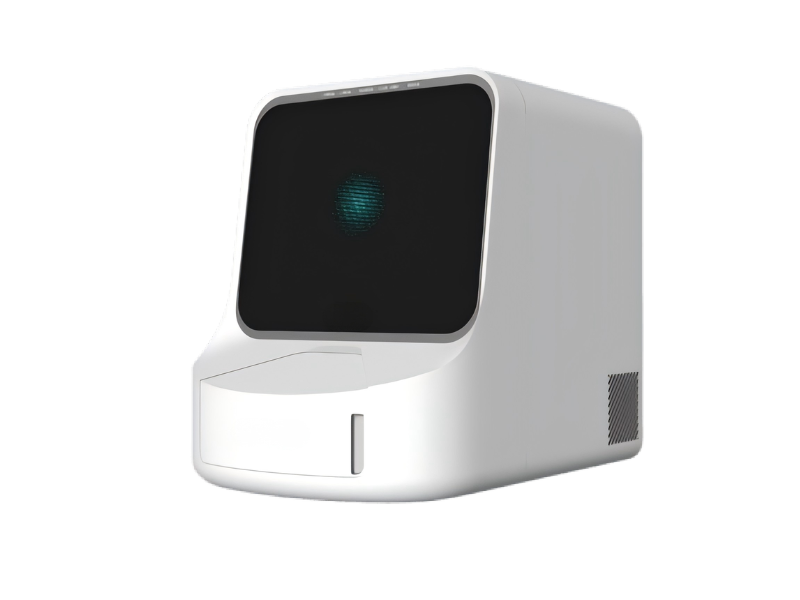

GHM PRX-S Digital Pathology 20-120 Slides Scanner

High-Throughput Digital Pathology Scanner – Fast, Precise, and Efficient
The GHM PRX-S is a high-throughput digital pathology slide scanner featuring 20-120 slide rack-based batch scanning — delivering lightning-fast scan speeds, high-fidelity whole-slide imaging, and ultra-precise positioning for clinical labs, education, and remote consultation.

Lightning Fast Speed for High-Throughput Labs

• Scan speed: 15 seconds per slide at 20x, 25 seconds per slide at 40x (15mm × 15mm region)

• Throughput: Up to 90 slides per hour at 20x (including slide load, preview, and focus time)

• Resolution: 0.36 μm/pixel at 20x, 0.18 μm/pixel at 40x

• Batch scanning: Supports 20–120 slides with rack-based system

• Continuous loading: Load slides while scanning – no downtime

Scan an entire batch of 120 slides in approximately 80 minutes — keep pace with demanding clinical workloads.

High Fidelity Whole-Slide Imaging (WSI)

• Resolution: High-fidelity scanning with fine detail preservation

• Scan method: Line scanning for consistent, artifact-free imaging

• Output formats: .SVS, .DCM, .TIFF

Delivers exceptional image fidelity for confident diagnosis and remote consultation.

Ultra-High Precision Scanning

• Positioning accuracy: 50nm positioning accuracy

• Support: Supports up to 80x magnification

• Motor drive: Magnetic suspension motor drive for quiet, stable operation

• Success rate: 99.85% of slides scanned successfully

Nanometer-level precision ensures every scan is sharp, clear, and reliable.

Brightfield & Fluorescence Compatibility

• Brightfield: Standard high-speed line scanning

• Fluorescence: Upgradeable with 3–10 channel options

• Fluorescence speed: ≤6 min/slide (10mm × 10mm, 3 filters); ≤12 min/slide (10mm × 10mm, 6 filters)

• Fluorescence resolution: 0.33 μm/pixel at 20x, 0.17 μm/pixel at 40x

• Fluorescence output: .QPTIFF

One scanner for both brightfield and fluorescence applications — expandable as your lab's needs grow.

Advanced Imaging Capabilities

• Z-Stack scanning: ≤10 layers for 3D tissue analysis

• Multi-layer image fusion: Support for extended depth of field

• Field of view (FOV): 1mm

Comprehensive scanning modes support routine clinical, research, and fluorescence applications.

High-Quality Olympus Objective Lenses

• Objective lens: Evident X-Line UPLXAPO 20x (0.8NA) and 40x (0.95NA)

• Optional objectives: 4x, 10x, 50x, 60x

• Objective sockets: 5 positions for flexible multi-magnification imaging

Professional-grade objectives deliver exceptional optical performance.

Flexible Rack-Based System

• Slide capacity: 20–120 slides (configurable)

• Slide holder type: Rack

• Slide holder capacity: 20 slides per rack

• Maximum racks: 4 racks

• Direct placement of racks with handles intact: Yes (up to 60 slides, 3 racks × 20 slides)

• Continuous loading: Support for uninterrupted operation

Flexible rack configuration accommodates varying batch sizes — from small studies to high-volume runs.

Complete Workstation Package

• PC model: Dell OptiPlex 7020MT Plus

• CPU: Intel I5-14500

• RAM: 64GB (32GB × 2)

• Hard drive: 1TB SSD NVME

• Monitor: 24-inch display

• Network: 1Gb RJ45 Ethernet

• Operating system: Windows 10 Professional 64-bit

Ready-to-use complete scanning workstation — no additional computer purchase required.

Universal Slide Compatibility

• Slide standard: 1" × 3" (25mm × 75mm), compatible with ISO 8037/1

• Thickness: 0.9mm – 1.1mm (excluding coverslip)

• Tissue thickness: Optimized for 3–5μm

• Coverslip: Standard borosilicate glass or cellulose tri-acetate film (0.17mm nominal thickness)

• Label area: 25mm × 25mm

• Barcodes supported: 1D and 2D barcodes, QR Code, DataMatrix Code

Accepts standard histology slides with flexible label and barcode requirements.

Professional Services & Support

• Customization: Customize products within a short time

• Support: In-time technical and after-sales services

• Experience: Backed by pathology imaging expertise

Technical Specifications

• Power supply: 100–240V AC, 50/60Hz

• Power socket types: Type A, C, D, E/F, G, I, J, L, M (universal compatibility)
