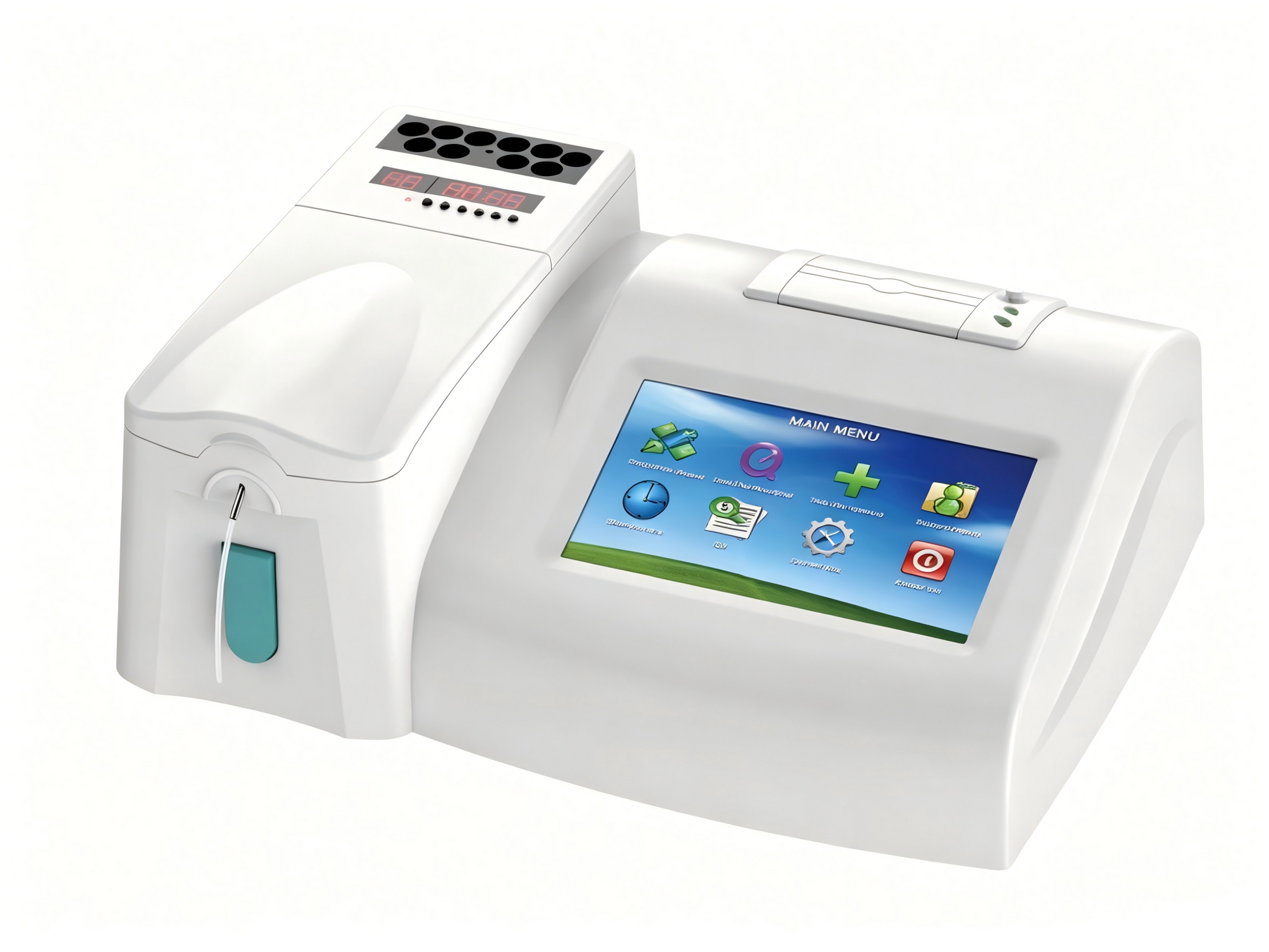

GHM RD-171 Semi-auto Biochemistry Analyzer #

Compact, Reliable, and Affordable
Ideal for small clinics, emergency rooms, and teaching labs – semi-automatic operation delivers professional biochemistry results without the high cost of fully automated systems.

7 Built‑in Wavelengths
Standard wavelengths: 340, 405, 492, 510, 546, 578, 630 nm (800 nm optional) – covering most routine clinical chemistry tests (e.g., liver, kidney, glucose, lipid panels).

High‑Quality Flow Cell
32 μL quartz flow cell ensures excellent optical clarity and durability for consistent readings.

Wide Sample Volume Range
Adjustable from 0 to 1000 μL – flexible for different test protocols and sample types.

Excellent Linearity & Absorbance Precision

• Linearity range: 0 – 3.5 Abs

• Absorbance display: 0.001 Abs | Calculation: 0.0001 Abs – sensitive enough for trace analysis.

Low Carry‑over & High Repeatability

• Carry‑over ≤ 1%

• Repeatability ≤ 3% – reliable results for routine testing.

Multiple Temperature Control
Choose from 37°C, 30°C, or 25°C – adapt to different test requirements (e.g., kinetic, endpoint assays).

Long‑Life Lamp
Lamp life: 2,000 hours or 6 months – reduces replacement frequency and maintenance costs.

User‑Friendly 7″ Touchscreen
Intuitive interface for easy operation, result viewing, and parameter setting.

Built‑in Thermal Printer
Print results directly from the analyzer – no external computer required.

Flexible Connectivity
Supports USB, LAN, and RS‑232 interfaces – easily connect to LIS systems, external printers, or PCs.

Universal Power Supply
100–240V, 50/60Hz, 60VA – works anywhere in the world without a voltage converter.

Ultra‑Compact & Lightweight

• Dimensions: 358mm (L) × 282mm (W) × 141mm (H)

• Weight: only 4 kg – fits on any bench and is easy to move or store.

✅ Why Choose the RD-171?

The RD‑171 delivers semi‑auto affordability with auto‑analyzer-grade optics and a 7‑wavelength system. Perfect for small laboratories, doctor’s offices, and field settings where space and budget are limited but quality cannot be compromised.
