GHM Revo T2 Vet Ultrasound | Cart-Based System for Small Animal Cardiac Monitoring
GHM Revo T2 Vet Ultrasound | Cart-Based System for Small Animal Cardiac Monitoring
Cart-based veterinary ultrasound with phased array probe, AI-assisted MPI monitoring, and GPU beamforming. Ideal for canine/feline ejection fraction and cardiac function assessment.

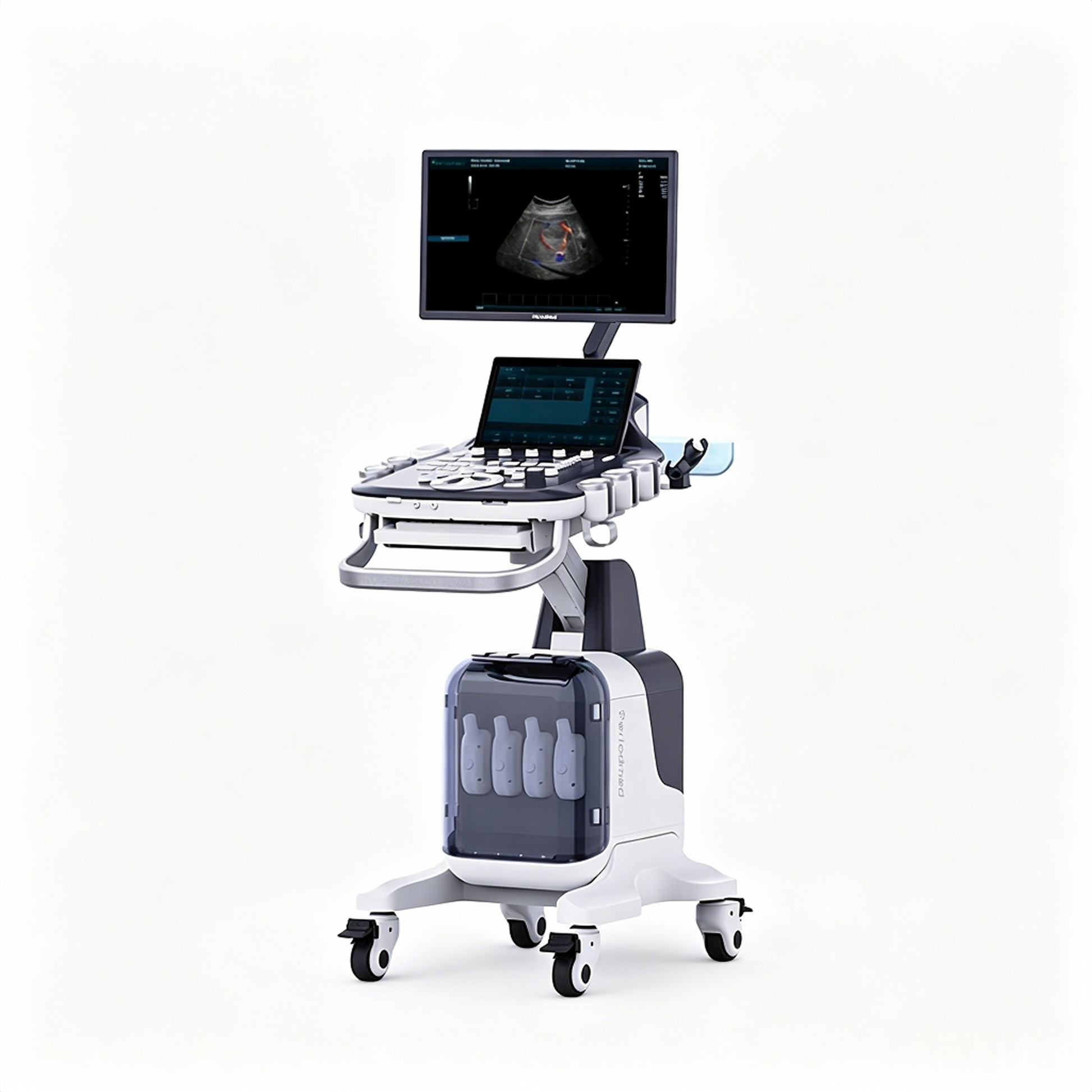

The Global Healthcare Medical GHM-REVO-T2-VET Ultrasound System is a premium cart-based diagnostic platform engineered specifically for small companion animal cardiac monitoring. Featuring a 23.8‑inch HD LED main screen, a 13.3‑inch adjustable touchscreen, and a dedicated phased array probe, this system delivers the imaging performance and computational power typically found in stationary imaging units—with the mobility to move between exam rooms.
Powered by GPU-based Soft Beamformer Technology with 192 elements, 64 channels, and a 16‑beam compound algorithm, the GHM‑REVO‑T2‑VET provides crystal‑clear imaging for precise ejection fraction calculations, stroke volume measurement, and myocardial performance index (MPI) monitoring in dogs and cats. Its AI-assisted algorithms streamline complex cardiac parameter calculations, reducing operator learning curves and expanding adoption potential in both specialized and general veterinary practices.
This device is intended for professional veterinary use. Not a substitute for professional veterinary diagnosis.
Key Features
🐾 Specialized Canine/Feline Cardiac Function Assessment
The GHM‑REVO‑T2‑VET is purpose‑built for small animal cardiology, delivering exceptional imaging for:
-
Ejection fraction monitoring – Critical for assessing cardiac output and function in dogs and cats
-
Stroke volume measurement – For comprehensive hemodynamic assessment
-
Myocardial Performance Index (MPI) monitoring – AI‑assisted algorithms capture subtle myocardial function changes in companion animals
-
Valvular function assessment – Identify valvular insufficiency with high sensitivity
-
Comprehensive heart evaluations – Compatible with PW, M‑mode, and CF display modes
🖥️ Premium Cart‑Based Design for Clinical Excellence
The GHM‑REVO‑T2‑VET features a sturdy cart design optimized for small animal hospitals and clinics:
-
23.8‑inch HD LED main screen – Crystal‑clear image display (1920×1080 resolution)
-
13.3‑inch adjustable touchscreen – Intuitive, responsive control
-
Four‑wheel foot brake – Ensures stability in busy clinical environments
-
Silent lock and hidden keyboard – Enhances usability in veterinary settings
-
Silent casters – Easy maneuverability between exam rooms
🖼️ Advanced Imaging Technologies
The GHM‑REVO‑T2‑VET incorporates cutting‑edge imaging technologies for superior diagnostic confidence:
-
GPU‑based Soft Beamformer Technology – Delivers crystal‑clear imaging for precise cardiac measurements
-
16‑beam compound algorithm – Ensures dynamic, accurate cardiac parameter calculations
-
192 elements and 64 channels – High‑resolution signal processing
-
Holographic domain technology – Breaks through traditional beam synthesis limitations
-
Speckle noise reduction – Enhances visual clarity by minimizing grainy distortions
-
Dynamic range: ≥120dB – Outstanding image contrast
📊 Comprehensive Imaging Mode Suite
The GHM‑REVO‑T2‑VET supports an extensive range of imaging modes for complete diagnostic coverage:
🔄 Versatile Probe Compatibility
The GHM‑REVO‑T2‑VET features a four‑probe universal interface accommodating a wide range of transducers:
| Probe Type | Application |
|---|---|
| Phased Array Probe | Canine/feline cardiac examination (myocardial pulse, ejection fraction, cardiac function index) |
| Convex Probe | Abdominal and reproductive imaging |
| Linear Probe | Small parts and musculoskeletal imaging |
| Micro‑convex Probe | Small animal cardiac and abdominal imaging |
| Volume Array | 3D/4D volumetric imaging |
| Intracavity Probe | Gynecological and urological examinations |
🏥 Wide Clinical Applications
The GHM‑REVO‑T2‑VET is suitable for a comprehensive range of veterinary applications:
| Application Area | Specific Uses |
|---|---|
| Cardiology | Canine/feline ejection fraction, stroke volume, MPI monitoring, valvular function assessment |
| Obstetrics | Pregnancy monitoring and fetal development tracking |
| Gynecology | Reproductive health and uterine evaluation |
| Abdomen | Liver, kidney, spleen, and gastrointestinal evaluation |
| Vascular | Blood flow analysis and vascular assessment |
| Small Parts | Thyroid, musculoskeletal, and soft tissue imaging |
| Urology | Kidney, bladder, and prostate examinations |
| MSK | Tendon, ligament, and muscle evaluation |
📱 Smart Ergonomic Design for Operator Comfort
The GHM‑REVO‑T2‑VET is designed to improve patient and operator comfort during cardiac ultrasound performance:
-
Rotatable control panel layout – Customizable positioning
-
Smart ergonomics – Reduces work‑related musculoskeletal disorders
-
Low‑noise operational workflow – With silent wheel lock for a quiet work environment
-
Brightness adjustable – Optimal viewing in any environment
📊 Comprehensive Data Management
The GHM‑REVO‑T2‑VET supports multiple image formats for flexible data management:
-
Image formats: AVI, BMP, JPG, PNG
-
DICOM support – Seamless integration with PACS systems
Specifications
Applications
The GHM‑REVO‑T2‑VET Ultrasound System is suitable for:
-
Small Animal Veterinary Hospitals – Comprehensive cardiac monitoring for dogs and cats
-
Cardiology Specialty Practices – Ejection fraction, stroke volume, and MPI assessment
-
Mixed‑Animal Practices – Versatile imaging across companion and large animals
-
Veterinary Teaching Hospitals – Advanced cardiac imaging for training and research
-
Emergency & Critical Care – Rapid cardiac assessment in urgent cases
-
Research Institutions – Advanced cardiac function studies
-
Mobile Veterinary Services – Cart‑based portability for on‑site diagnostics
Why Choose the GHM‑REVO‑T2‑VET?
FAQ
Q: What is the GHM‑REVO‑T2‑VET Ultrasound System?
A: The GHM‑REVO‑T2‑VET is a premium cart‑based veterinary ultrasound system specifically engineered for small companion animal cardiac monitoring, featuring a phased array probe, GPU‑based Soft Beamformer Technology, and AI‑assisted MPI calculations.
Q: What are the key cardiac applications?
A: The system supports ejection fraction monitoring, stroke volume measurement, myocardial performance index (MPI) assessment, and valvular function evaluation in dogs and cats.
Q: What is the display configuration?
A: The GHM‑REVO‑T2‑VET features a 23.8‑inch HD LED main screen (1920×1080) and a 13.3‑inch adjustable touchscreen.
Q: What probe types are compatible?
A: The system features a four‑probe universal interface accommodating phased array, convex, linear, micro‑convex, volume array, and intracavity probes.
Q: What imaging modes are available for cardiac assessment?
A: The GHM‑REVO‑T2‑VET supports PW, M‑mode, CF, CW, PDI, DPDI, and Color M modes for comprehensive cardiac evaluation.
Q: Does the system have AI capabilities?
A: Yes. The system features AI‑assisted myocardial performance index (MPI) monitoring, integrating advanced algorithms to streamline MPI calculations and capture subtle myocardial function changes.
Q: What is the beamforming technology?
A: The system leverages GPU‑based Soft Beamformer Technology with 192 elements, 64 channels, and a 16‑beam compound algorithm for crystal‑clear imaging and precise cardiac measurements.
Q: Is the system suitable for other species?
A: Yes. Beyond small animal cardiology, the system supports pregnancy monitoring, tumor diagnosis, and musculoskeletal imaging across dogs, cats, horses, cattle, sheep, and pigs.
Q: What is the cart design like?
A: The cart features a four‑wheel foot brake for stability, silent lock and hidden keyboard for usability, and silent casters for easy maneuverability in veterinary clinics.
