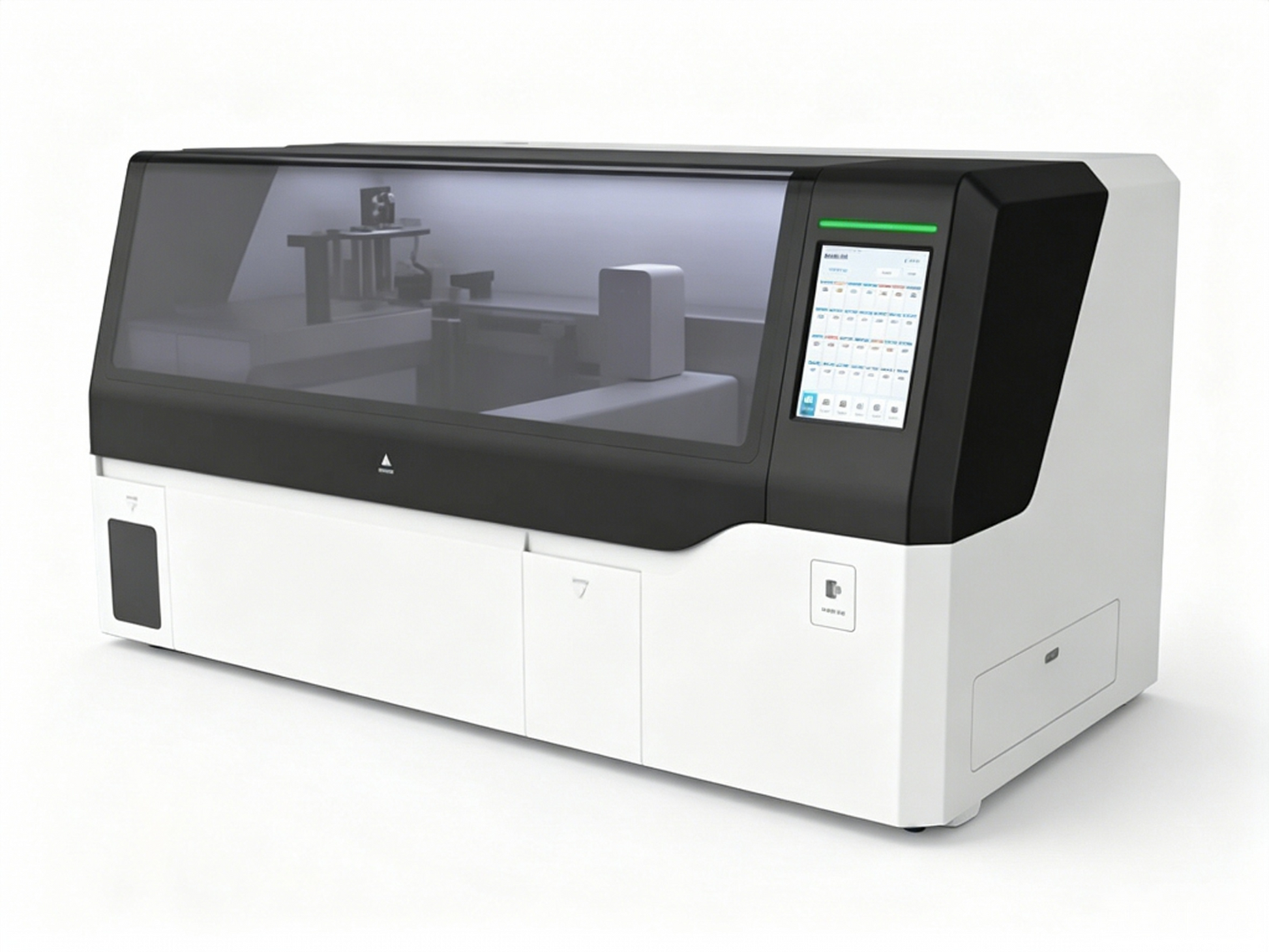

GHM RF-II Stainer and Coverslipper #

🚀 200 Slides per Hour — Double the Throughput of RF-I

Upgrade your lab's capacity without upgrading your team. The RF-II delivers 200 slides per hour for staining and 300 slides per hour for coverslipping — exactly double the staining throughput of the RF-I. For coverslips alone, that's 1,200 coverslips per hour at peak capacity.

Why it matters: Process twice as many slides in the same shift. Perfect for mid-volume labs scaling up from entry-level automation without moving to a full industrial system.

---

⚡ Complete in 5 Minutes — Staining & Coverslipping Together

Just like its smaller sibling, the RF-II completes the entire staining and coverslipping process in just 5 minutes. Load a rack, press start, and walk away — both processes run simultaneously in a single integrated instrument.

Why it matters: No waiting for a separate coverslipper to catch up. No transferring wet slides between instruments. A true one-button, all-in-one solution.

---

🧪 27 Total Stations — 20 Reagent Stations — 450ml Containers

The RF-II significantly expands your staining capabilities:

• 27 total stations (vs. 24 on RF-I)

• 20 dedicated reagent stations — up from 16 on RF-I

• 450ml reagent containers — nearly three times the volume of RF-I's 160ml containers

Why it matters: Run longer without refilling reagents. Accommodate more complex staining protocols. Perfect for high-volume H&E, special stains, and research applications where reagent top-ups disrupt workflow.

---

🧩 30-Slide Rack Capacity — Batch Processing at Scale

The RF-II accepts 30 slides per rack — a massive upgrade from RF-I's 8-slide capacity. The input/output drawer accommodates one rack at a time, but the larger rack size means fewer changeovers per run.

Why it matters: Process 30 slides in a single batch. Load once, walk away, return to 30 finished slides. Minimize technician hands-on time and maximize throughput.

---

📏 Macroslide Rack Available — Handle Large Specimens

Unlike the RF-I, the RF-II supports macroslide racks. This means you can process larger-format slides for whole-mount sections, breast cancer resection margins, and other macro specimens that won't fit on standard slides.

Why it matters: One instrument handles your entire case mix — from routine biopsies to large surgical resections. No need for a separate macroslide processing system.

---

🔬 4 Heated Stations with ±1°C Precision

The RF-II includes 4 reagent heating stations with precise temperature control from 0°C to 60°C, maintaining ±1°C accuracy. This matches the RF-I's heating precision but with larger reagent volumes.

Why it matters: Reproducible results run after run for temperature-sensitive protocols like special stains and immunohistochemistry. No hot spots, no cold spots — just consistent staining.

---

📱 11.6-Inch Touchscreen — Bigger, Clearer, Easier

The RF-II features an 11.6-inch color touchscreen — significantly larger than RF-I's 7-inch display. The intuitive interface makes program selection, status monitoring, and maintenance simple for all skill levels.

Why it matters: Less squinting, fewer errors. Technicians can monitor runs from across the room. Programming is straightforward, so training time is minimal.

---

💾 24 Custom Programs — Up to 54 Steps Each

Store up to 24 custom staining programs with up to 54 steps per program. Whether it's H&E, special stains, cytology, or research protocols, the RF-II adapts to your needs instantly.

Why it matters: Switch between stains in seconds. Validate and save your best protocols. Perfect for labs that run multiple stain types daily.

---

🛡️ Smart Coverslipping — 200 Coverslip Capacity, 300 Slides/Hour

The integrated coverslipper delivers 300 slides per hour — 50% faster than the RF-I's 200 slides/hour. Smart features include:

• Defective coverslip detection — automatically rejects damaged or flawed coverslips

• Empty coverslip detection — real-time monitoring of coverslip availability

• Low inventory pre-alert — warns before coverslips run out

• 200 coverslip storage capacity

Why it matters: No ruined slides from bad coverslips. No mid-run surprises. Your coverslipper runs smoothly from morning to evening with fewer refills.

---

🧩 90-Slide Output Rack Capacity

The RF-II's output rack holds 90 slides — dramatically larger than RF-I's 16-slide capacity. That's three full staining racks worth of finished slides waiting for the next step.

Why it matters: Less frequent unloading. Let the machine run while you attend to other duties. Perfect for labs that batch process and want minimal interruptions.

---

🔊 Voice Reminders — Keep Moving

The RF-II includes voice reminders to alert technicians when cycles complete, when reagents need attention, or when coverslips are running low.

Why it matters: Multitask without constantly watching the screen. Voice alerts mean you never miss a cycle completion, even across a busy lab.

---

📦 Compact Footprint for Mid-Volume Power

Dimensions: 1270mm × 590mm × 760mm (W×D×H). Weight: 130kg. The RF-II packs double the throughput of the RF-I into a footprint that fits through standard doorways and onto standard benches.

Why it matters: Massive throughput without massive space requirements. Easy to install, easy to maintain, easy to love.

---

🔌 CE-IVDR Certified — Ready for Diagnostic Labs

The RF-II is CE-IVDR certified, meeting the latest European regulatory standards for in vitro diagnostic medical devices.

Why it matters: Regulatory confidence for diagnostic labs worldwide. Deploy with assurance that your automation meets global standards.

---

🌍 Global Power Ready — 100–240V, 50/60Hz

Operates on 100–240V AC, 50/60Hz with interchangeable power sockets (Types A, C, D, E/F, G, I, J, L, M). Rated power: just 200VA.

Why it matters: Same instrument works anywhere in the world. No transformer needed. Low power consumption keeps operational costs down.

---

📊 Quick Specs — GHM-RF-II

---

📈 RF Series Comparison — Where RF-II Fits

Which one is right for you?

• Choose RF-I if you process up to 100 slides/hour and need a compact entry point

• Choose RF-II if you need 200 slides/hour with larger reagent volumes and macroslide support

• Choose RF-III for 300+ slides/hour with expanded capacity

• Choose RF-V for industrial-scale or core lab environments processing 600 slides/hour

---

💡 Perfect For

✅ Hospital pathology labs — Mid-volume H&E and special stain processing
✅ Reference laboratories — 200 slides/hour keeps pace with busy accessioning
✅ Research institutions — Macroslide support for whole-mount sections
✅ Teaching hospitals — Easy-to-operate system with flexible programming
✅ Scaling labs — The perfect upgrade from RF-I when volume grows

---

🎯 Why Upgrade to RF-II from RF-I?

---

📦 What's Included

• GHM-RF-II Stainer and Coverslipper unit

• Staining racks (30-slide capacity each)

• Reagent containers (450ml each, 20 included)

• Coverslip magazine (holds 200 coverslips, 24×50mm)

• Output racks (90-slide total capacity)

• Macroslide rack (optional — available on request)

• Power cord (regional type supplied)

• Quick start guide and protocol templates

• 1-year warranty with technical support

---

🔧 What's in the Box — Shipping Configurations

Why it matters: Multiple shipping options for global delivery. Air freight for urgent installations, ocean freight for cost-effective bulk shipping.
