GHM-RPM10 Respiratory Pressure Meter | Portable MIP/MEP Tester with PC Software #

Portable respiratory pressure meter for MIP and MEP testing with real-time waveform display, quality control rating, trend charts, and PC software. Ideal for pulmonary rehabilitation and weaning assessment.

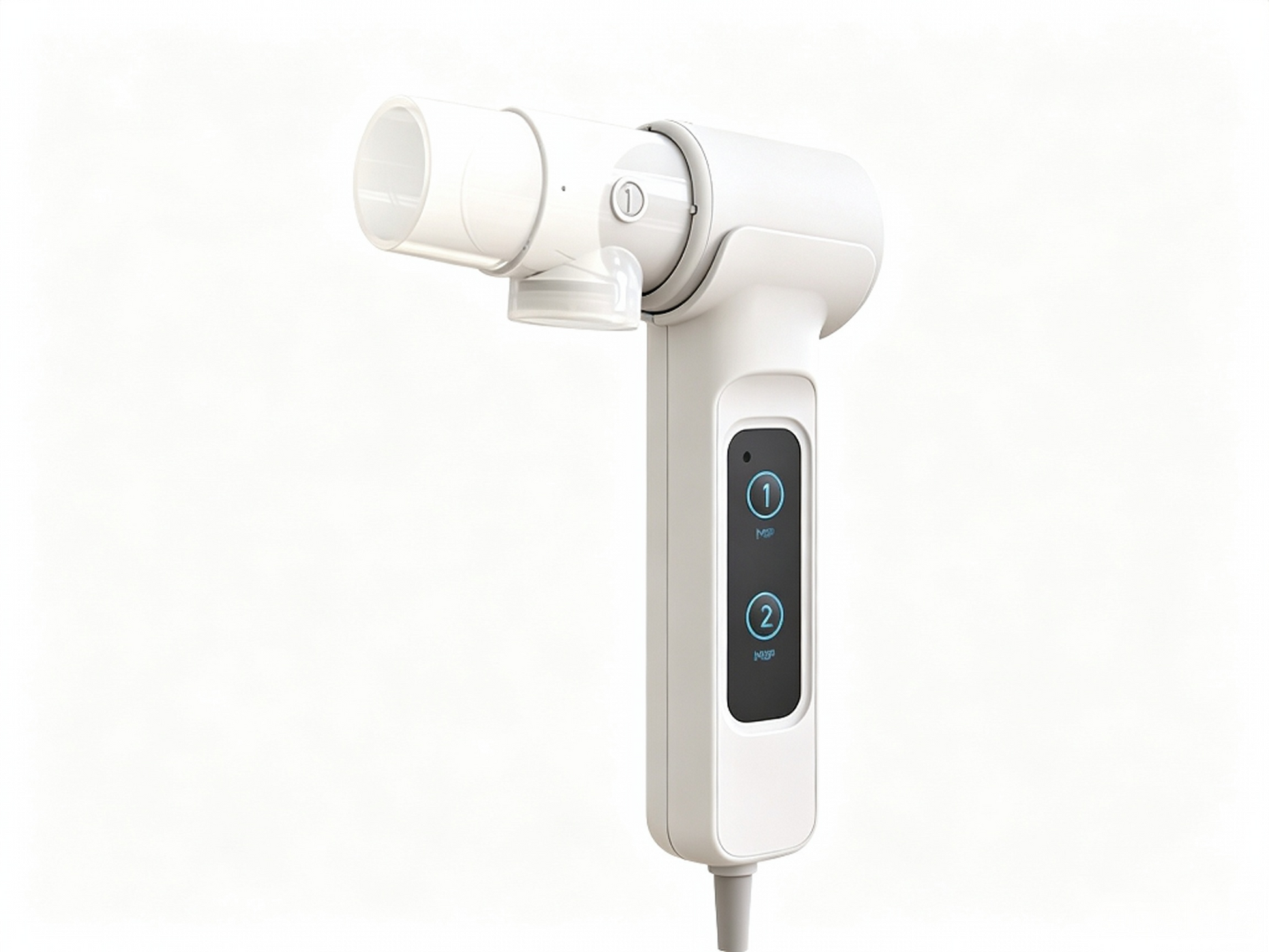

The Global Healthcare Medical GHM-RPM10 Respiratory Pressure Meter is a portable, non‑invasive device designed for accurate measurement of respiratory muscle strength. It measures Maximal Inspiratory Pressure (MIP) and Maximal Expiratory Pressure (MEP) through non‑invasive pressure acquisition, displaying real‑time pressure/time curves for immediate clinical insight.

This device is essential for evaluating the impact of neuromuscular diseases on inspiratory muscle function, assessing lung conditions, and monitoring the effectiveness of respiratory muscle rehabilitation exercises. It is particularly valuable for patients with chronic obstructive pulmonary disease (COPD), thoracic malformations, and drug poisoning.

The GHM-RPM10 also serves as a critical indicator for determining readiness to discontinue artificial mechanical ventilation. Widely used in hospitals, pulmonary rehabilitation centers, and respiratory clinics, it provides clinicians with objective data to support diagnosis and treatment planning.

This device is intended for professional use in clinical settings by trained healthcare professionals. Not a substitute for professional medical diagnosis.

Key Features

📊 Comprehensive MIP & MEP Testing

The GHM-RPM10 provides dedicated testing for both inspiratory and expiratory muscle strength:

• MEP (Maximal Expiratory Pressure) Function Test – Displays real‑time pressure waveforms, calculates parameter values and their ratios to expected values, provides quality control ratings, and shows the best value from multiple measurements

• MIP (Maximal Inspiratory Pressure) Function Test – Displays real‑time respiratory waveforms, calculates parameter values and their ratios to expected values, provides quality control ratings, and shows the best value from multiple measurements

📈 Real‑Time Waveform Display

The device displays pressure/time curves in real time during testing, allowing clinicians to observe patient effort and technique immediately. This instant visual feedback helps ensure test quality and accurate results.

📉 Trend Chart Visualization

The GHM-RPM10 generates trend charts that visualize changes in respiratory pressure over time, enabling clinicians to track patient progress, evaluate treatment effectiveness, and make data‑driven decisions about rehabilitation protocols.

✅ Quality Control Rating System

Each test is automatically evaluated with a quality control rating, helping clinicians quickly identify the most reliable measurements and ensure diagnostic accuracy.

💻 PC Software for Advanced Data Management

The GHM-RPM10 includes dedicated PC software for data analysis, storage, and reporting. This enables comprehensive patient data management, report generation, and long‑term trend tracking.

🔌 Visual & Audible Feedback

• LED Indication – Solid light confirms successful connection; flickering light indicates active data collection

• Buzzer Prompts – A confirmation beep sounds upon successful connection and when keys are pressed

📦 Ultra‑Compact & Portable Design

• Dimensions: 146mm × 107mm × 40mm

• Weight: Approximately 130g

• Lightweight and handheld – Easy to transport between clinical settings and patient bedsides

Specifications

What's Included

• GHM-RPM10 Respiratory Pressure Meter Main Unit

• User Manual

• 2 Disposable Mouthpieces

• Nose Clip

• Inspiratory Valve

• Expiratory Valve

• RPM10 PC Software

Applications

The GHM-RPM10 Respiratory Pressure Meter is suitable for:

• Pulmonary Rehabilitation – Assessing and monitoring respiratory muscle function in COPD patients

• Neuromuscular Disease Management – Evaluating the effect of neuromuscular diseases on inspiratory muscle function

• Mechanical Ventilation Weaning – Serving as an indicator for determining readiness to discontinue artificial mechanical ventilation

• Preoperative Assessment – Evaluating respiratory muscle strength before thoracic surgery

• Drug Poisoning Evaluation – Assessing respiratory muscle function in cases of drug poisoning

• Thoracic Malformation Assessment – Evaluating respiratory function in patients with thoracic malformations

• Respiratory Clinics & Hospitals – Providing objective data for diagnosis and treatment planning

Why Choose the GHM-RPM10?

FAQ

Q: What is the GHM-RPM10 Respiratory Pressure Meter?

A: The GHM-RPM10 is a portable device that measures maximal inspiratory pressure (MIP) and maximal expiratory pressure (MEP) through non‑invasive pressure acquisition, displaying real‑time pressure/time curves for respiratory muscle strength assessment.

Q: What parameters does the device measure?

A: The device measures Maximal Inspiratory Pressure (MIP) and Maximal Expiratory Pressure (MEP).

Q: What is the pressure range and accuracy?

A: The GHM-RPM10 has a pressure range of ±300 cmH₂O with an accuracy of ±3% or 3 cmH₂O (maximum).

Q: Does the device display waveforms in real time?

A: Yes. The GHM-RPM10 displays real‑time pressure/time curves during testing.

Q: Does the device include software?

A: Yes. The GHM-RPM10 includes dedicated PC software for data analysis, storage, and reporting.

Q: What quality control features are available?

A: The device provides quality control ratings for each test and shows the best value from multiple measurements.

Q: What clinical applications is the device suitable for?

A: The GHM-RPM10 is suitable for COPD management, neuromuscular disease evaluation, weaning assessment, preoperative evaluation, and pulmonary rehabilitation.

Q: Is the device portable?

A: Yes. The GHM-RPM10 is a handheld device weighing approximately 130g with dimensions of 146mm × 107mm × 40mm.

Q: What is included in the package?

A: The package includes the main unit, user manual, 2 disposable mouthpieces, a nose clip, an inspiratory valve, an expiratory valve, and RPM10 PC software.
