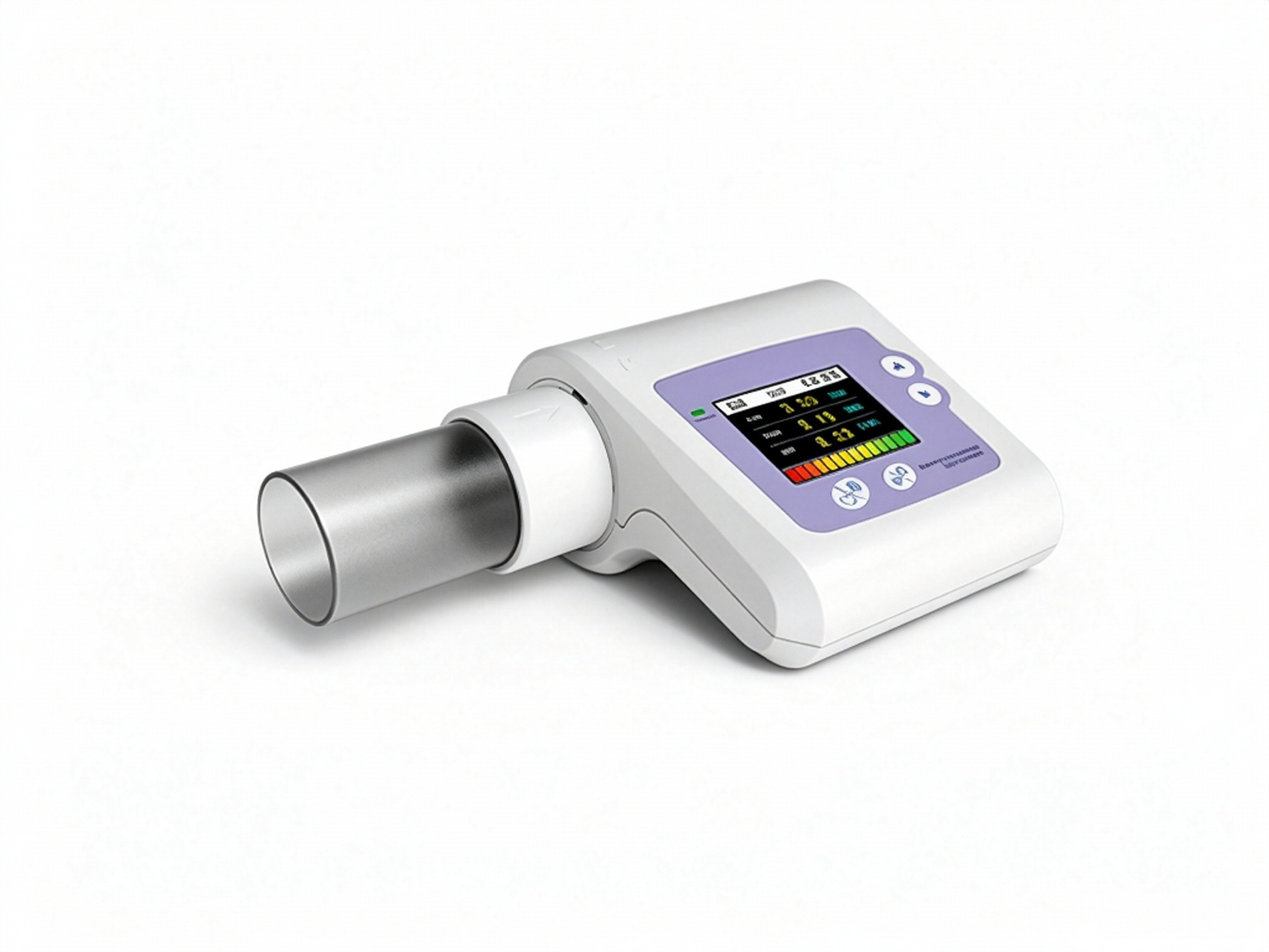

GHM-SP10 Spirometer | Handheld Lung Function Tester with Rechargeable Battery
GHM-SP10 Spirometer | Handheld Lung Function Tester with Rechargeable Battery
Handheld spirometer with FVC, FEV1, PEF measurement, flow-volume/volume-time charts, trend analysis, rechargeable battery, and auto shut-off. Ideal for asthma, COPD, and pulmonary function screening.
The Global Healthcare Medical GHM-SP10 Spirometer is a handheld, portable device designed for checking lung conditions and assessing respiratory function. Adopting infrared mode technology for measuring relative items, it is applicable for hospital, clinic, and family routine testing.[0†L2-L4]
Whether you're managing chronic respiratory conditions like asthma and COPD, screening for occupational lung diseases, or monitoring lung function at home, the GHM-SP10 delivers reliable, reproducible results with minimal patient effort. Its rechargeable lithium battery and automatic power-off feature make it a convenient and energy‑efficient tool for both clinical and home use.
This device is intended for professional use in clinical settings and home monitoring. Not a substitute for professional medical diagnosis.
Key Features
📊 Comprehensive Pulmonary Function Testing
The GHM-SP10 measures a full range of key spirometry parameters[0†L5-L8]:
-
Forced Vital Capacity (FVC) – Total volume of air exhaled during a forced maneuver
-
FEV₁ – Forced expiratory volume in one second
-
FEV₁/FVC Ratio (FEV1%) – Key indicator for obstructive vs. restrictive lung disease
-
Peak Expiratory Flow (PEF) – Maximum flow rate during forced expiration
-
FEF25 – Forced expiratory flow at 25% of FVC
-
FEF75 – Forced expiratory flow at 75% of FVC
-
FEF25-75 – Average flow between 25% and 75% of FVC[0†L7-L8]
The patient's condition can be shown by the ratio of the measured value to the predicted value.[0†L8-L9]
📈 Graphical Display with Flow‑Volume & Volume‑Time Charts
The device displays flow rate‑volume charts and volume‑time charts on screen[0†L9-L10], providing visual confirmation of test quality and patient effort.
📊 Trend Chart & Data Management
The GHM-SP10 displays trend charts for monitoring changes in lung function over time[0†L11], enabling long‑term patient tracking and treatment evaluation. Data can be stored, deleted, uploaded, and reviewed directly on the device[0†L10], making it easy to track patient progress.
✅ Calibration & Smart Alerts
-
Scaling (Calibration) function ensures test accuracy[0†L11]
-
Information prompts when volume or flow goes beyond the limits[0†L11-L12]
🔋 Rechargeable Battery & Auto Power‑Off
The GHM-SP10 features a rechargeable lithium battery with charging tips[0†L13] and battery power display[0†L13-L14]. The device automatically powers off when there is no operation in one minute[0†L12-L13], preserving battery life for extended use.
Specifications
| Feature | Specification |
|---|---|
| Product Type | Handheld Spirometer / Lung Function Tester |
| Model | GHM-SP10 |
| Measurement Technology | Infrared mode |
| Parameters | FVC, FEV₁, FEV₁/FVC (FEV1%), PEF, FEF25, FEF75, FEF25-75 |
| Chart Display | Flow rate‑volume chart, volume‑time chart |
| Data Management | Storage, deletion, upload, review |
| Trend Chart | Yes |
| Calibration | Yes |
| Alerts | Information prompts for volume/flow limits |
| Power Supply | Rechargeable lithium battery with charging tips |
| Battery Display | Power indication |
| Auto Shutdown | After 1 minute of inactivity |
| Intended Use | Hospital, clinic, family routine testing |
| Certifications | CE |
What's Included
-
GHM-SP10 Spirometer Main Unit
-
Disposable Mouthpieces
-
Nose Clip
-
USB Charging Cable
-
User Manual
Applications
The GHM-SP10 Spirometer is suitable for:
-
Hospitals & Clinics – Routine pulmonary function testing, respiratory disease screening, and monitoring
-
Primary Care & Family Practice – Quick, reliable lung function assessment for patients of all ages
-
Home Healthcare – Convenient self‑monitoring for patients with asthma, COPD, and other chronic respiratory conditions
-
Occupational Health – Screening for work‑related respiratory conditions
-
Respiratory Medicine – Diagnosis and monitoring of asthma, COPD, and other pulmonary conditions
Why Choose the GHM-SP10?
| Basic Spirometers | Global Healthcare Medical GHM-SP10 |
|---|---|
| Limited parameters | Comprehensive FVC, FEV₁, PEF, FEF25-75 measurement |
| Numeric only | Flow‑volume & volume‑time chart display |
| No data management | Storage, upload, and review functions |
| Disposable batteries | Rechargeable lithium battery with power display |
| Manual power management | Automatic power‑off after 1 minute |
| No trend analysis | Trend chart display for long‑term monitoring |
FAQ
Q: What is the GHM-SP10 Spirometer?
A: The GHM-SP10 is a handheld spirometer that uses infrared mode technology to measure key pulmonary function parameters including FVC, FEV₁, FEV₁/FVC, PEF, FEF25, FEF75, and FEF25-75.
Q: What parameters does the device measure?
A: The device measures FVC, FEV₁, FEV₁/FVC ratio (FEV1%), PEF, FEF25, FEF75, and FEF25-75.
Q: Does the device display graphs?
A: Yes. The GHM-SP10 displays flow rate‑volume charts and volume‑time charts on screen.
Q: Can I store and review patient data?
A: Yes. Data can be stored, deleted, uploaded, and reviewed directly on the device.
Q: How is the device powered?
A: The GHM-SP10 features a rechargeable lithium battery with charging tips and battery power display.
Q: Does the device have an auto‑off function?
A: Yes. The device automatically powers off when there is no operation in one minute.
Q: What clinical settings is the device suitable for?
A: The GHM-SP10 is suitable for hospitals, clinics, and family routine testing.
Q: What conditions can the device help monitor?
A: The GHM-SP10 assists in the screening and monitoring of respiratory diseases such as asthma and COPD.
