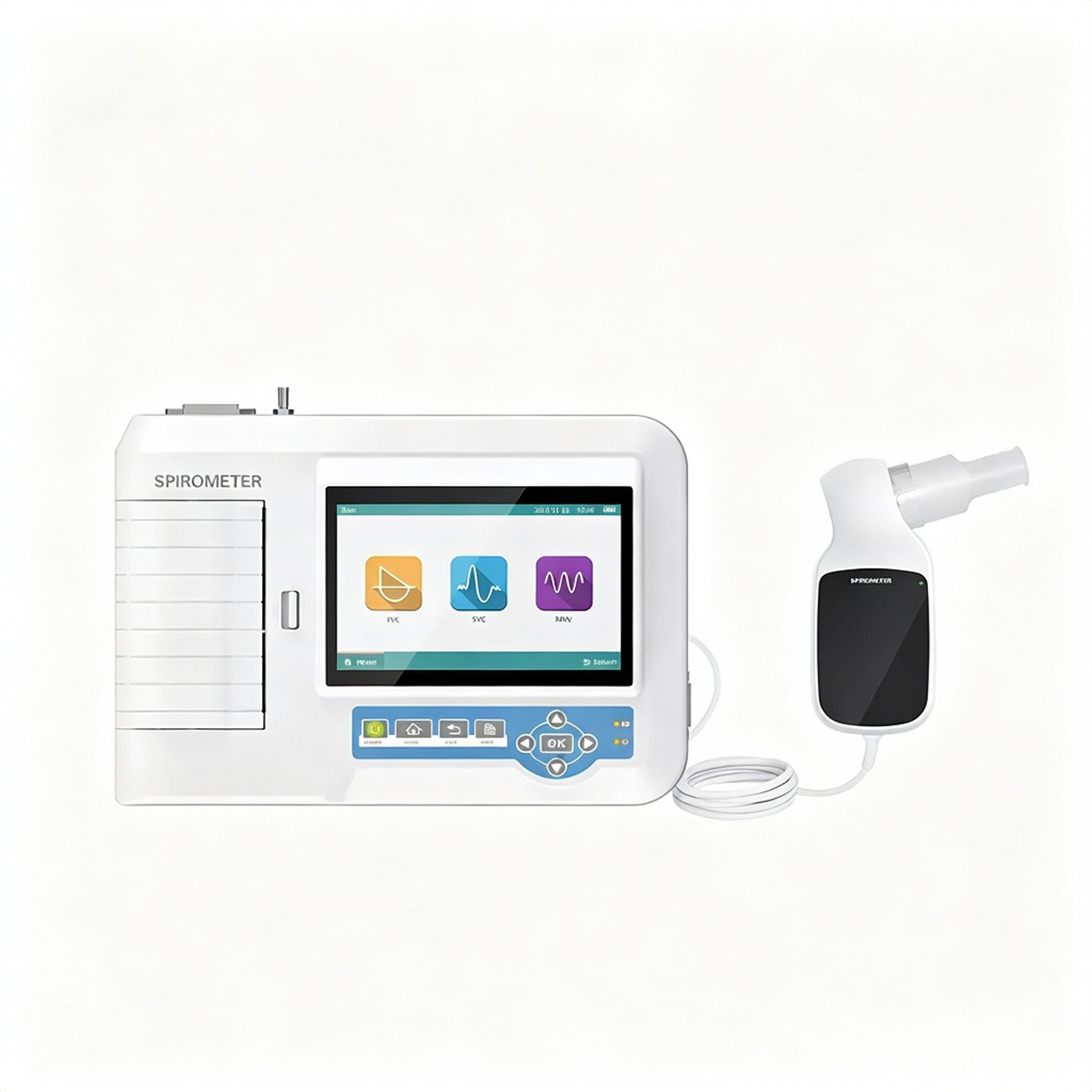

GHM-SP100 Desktop Spirometer | 7" Touch Screen Lung Function Tester with Built-in Printer #

Desktop spirometer with 7" color touch screen, built-in thermal printer, and over 50 pulmonary parameters. BTPS correction, 10,000+ data storage, and PC-free operation. Ideal for hospitals, clinics, and occupational health screening.

The Global Healthcare Medical GHM-SP100 Desktop Spirometer is a portable yet powerful lung function testing device designed for comprehensive pulmonary assessment in hospitals, clinics, community health centers, schools, and occupational health settings. Using advanced differential pressure detection technology, the GHM-SP100 measures over 50 parameters related to Forced Vital Capacity (FVC), Vital Capacity (VC/SVC), and Maximum Voluntary Ventilation (MVV).

Featuring a 7-inch color TFT touch screen, a built-in thermal printer for instant report generation, and an intuitive animation-guided operation, the GHM-SP100 makes pulmonary function testing accessible for patients of all ages—from children to the elderly.

This device is intended for professional use in clinical settings. Not a substitute for professional medical diagnosis.

Key Features

📊 Comprehensive Pulmonary Function Testing

The GHM-SP100 measures a wide range of key spirometry parameters:

Forced Vital Capacity (FVC) Parameters:

• FVC, FEV₁, PEF, FEV₁%, FEV₁/FVC Ratio

• FEF25, FEF50, FEF75, FEF25-75

• FEV₁/VC, FEV₆, FEV₁/FEV₆

• ELA, FET, EVOL, FIVC, FIV₁, FIV₁/FIVC, PIF, MVV, and more

Vital Capacity (VC/SVC) Parameters:

• VC, IC, ERV, IRV, EVC, IVC, TV, VE, RR, tI, tE, and more

Maximum Ventilatory Volume (MVV): MVV measurement

In total, the device can measure and display more than 50 parameters.

🖥️ 7" Color TFT Touch Screen

The 7-inch color TFT touch screen provides clear, vibrant display of real-time respiratory waveforms—including Flow-Volume loops and Volume-Time curves. Dual operation via touch screen and buttons offers maximum flexibility for healthcare professionals.

🖨️ Built-in Thermal Printer for Instant Reports

The GHM-SP100 features a built-in thermal printer that allows reports to be printed directly from the device—eliminating the need for an external printer or PC.

🎮 Incentive Animation Operation Guide

The device includes an incentive animation operation guide that makes testing easy and engaging for patients of all ages—especially helpful for children and the elderly.

🌡️ BTPS Automatic Correction

The GHM-SP100 features BTPS (Body Temperature, Pressure, Saturated) automatic correction, which measures temperature, humidity, and barometric pressure automatically to compensate for environmental differences and ensure accurate results.

🔧 Calibration & Quality Control

• Calibration function ensures measurement accuracy

• Quality control function with automatic QC rating

• Volume calibration and three flows verification

💾 Massive Data Storage

The device can store more than 10,000 groups of data, making it ideal for long-term patient tracking and epidemiological studies.

📈 Advanced Analysis Functions

• Lung age estimation function

• Trend chart display for monitoring changes over time

• Pulmonary function assessment

• Bronchial dilation / provocation test support

• Follow-up questionnaires function

🔋 Dual Power Supply

Powered by a built-in rechargeable lithium battery that supports both AC and DC operation, the GHM-SP100 offers flexibility for use in any clinical setting.

👶 Versatile Patient Population

• Multiple predicted value settings suitable for different populations

• Patient information can be entered, managed, and queried

• Suitable for children, adults, and the elderly

⏱️ Test Time & Environmental Display

The device displays test time and environment temperature for complete documentation.

Specifications

What's Included

• GHM-SP100 Desktop Spirometer Main Unit

• 7" Color TFT Touch Screen

• Built-in Thermal Printer

• Disposable Mouthpieces (4 pcs)

• Nose Clip

• USB Cable

• Recording Paper

• Power Cord

• User Manual

Applications

The GHM-SP100 Desktop Spirometer is suitable for:

• Hospitals & Diagnostic Centers – Comprehensive pulmonary function testing

• Clinics & Physician Offices – Routine respiratory assessment

• Community Health Programs – Epidemiological investigation and health examinations

• Occupational Health & Industrial Screening – Workplace respiratory monitoring

• Schools – Pediatric respiratory screening

• Preventive Healthcare – Routine checkups and early detection

FAQ

Q: What is the GHM-SP100 Desktop Spirometer?

A: The GHM-SP100 is a portable desktop spirometer that uses differential pressure detection technology to measure over 50 pulmonary function parameters, including FVC, FEV₁, PEF, and MVV.

Q: Does the device have a built-in printer?

A: Yes. The GHM-SP100 features a built-in thermal printer that allows reports to be printed directly from the device.

Q: What type of display does it have?

A: The GHM-SP100 features a 7-inch color TFT touch screen that displays real-time Flow-Volume loops and Volume-Time curves.

Q: How much data can the device store?

A: The GHM-SP100 can store more than 10,000 groups of data.

Q: Does the device have BTPS correction?

A: Yes. The GHM-SP100 features BTPS automatic correction, which compensates for temperature, humidity, and barometric pressure differences.

Q: Is the device suitable for children and elderly patients?

A: Yes. The device includes an incentive animation operation guide that makes testing easy and engaging for patients of all ages.

Q: How is the device powered?

A: The GHM-SP100 features a built-in rechargeable lithium battery that supports both AC and DC operation.

Q: What safety classification does the device have?

A: The GHM-SP100 is classified as Class I equipment with Type BF applied part.

Q: What is included in the package?

A: The package includes the GHM-SP100 main unit, 4 disposable mouthpieces, a nose clip, a USB cable, recording paper, a power cord, and a user manual.

Q: What clinical settings is the device suitable for?

A: The GHM-SP100 is suitable for hospitals, clinics, community health centers, schools, factories, and occupational health screening.
