GHM-SP10W Spirometer | Handheld Wireless Lung Function Tester with Bluetooth #

Handheld wireless spirometer with Bluetooth, 1.8" color LCD, FVC/FEV1/PEF measurement, flow-volume charts, trend analysis, and rechargeable battery. Ideal for asthma, COPD, and pulmonary function screening.

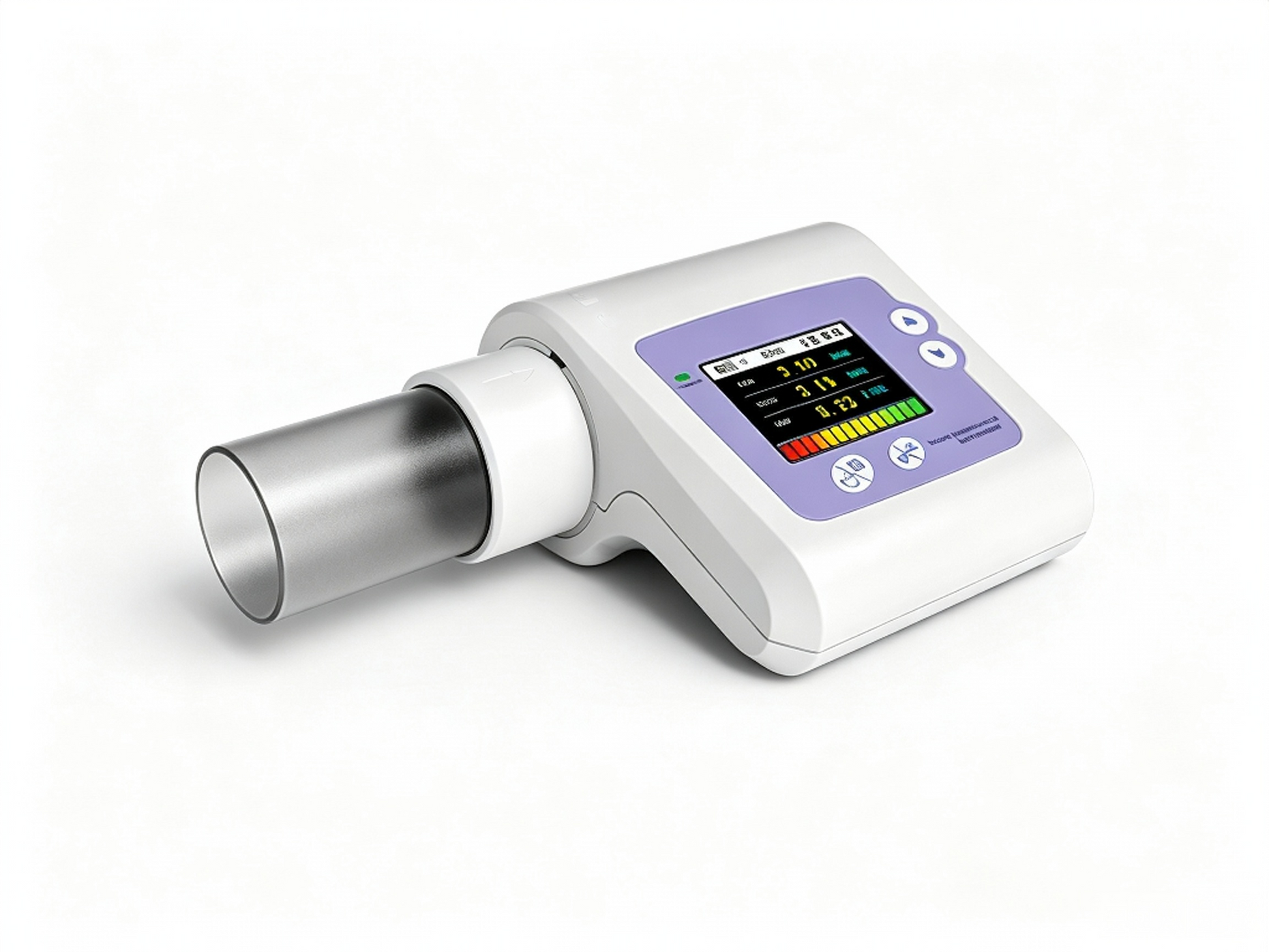

The Global Healthcare Medical GHM-SP10W Spirometer is a handheld, portable device designed for checking lung conditions and assessing respiratory function. Adopting infrared mode technology for measuring relative items, it is applicable for hospital, clinic, and family routine testing.

Whether you're managing chronic respiratory conditions like asthma and COPD, screening for occupational lung diseases, or monitoring lung function at home, the GHM-SP10W delivers reliable, reproducible results with minimal patient effort. Its wireless Bluetooth transmission capability and rechargeable lithium battery make it a versatile tool for both clinical and home use.

This device is intended for professional use in clinical settings and home monitoring. Not a substitute for professional medical diagnosis.

Key Features

📊 Comprehensive Pulmonary Function Testing

The GHM-SP10W measures a full range of key spirometry parameters:

• Forced Vital Capacity (FVC) – Total volume of air exhaled during a forced maneuver

• FEV₁ – Forced expiratory volume in one second

• FEV₁/FVC Ratio – Key indicator for obstructive vs. restrictive lung disease

• Peak Expiratory Flow (PEF) – Maximum flow rate during forced expiration

• FEF25 – Forced expiratory flow at 25% of FVC

• FEF50 – Forced expiratory flow at 50% of FVC

• FEF75 – Forced expiratory flow at 75% of FVC

• FEF25-75 – Mid-expiratory flow rate between 25% and 75% of FVC

The patient's condition can be shown by the ratio of the measured value to the predicted value.

🖥️ 1.8" Color LCD Display with Graphical Charts

The 1.8‑inch color LCD screen (160×128 resolution) clearly displays measurement results. The device displays flow rate‑volume charts and volume‑time charts on screen, providing visual confirmation of test quality and patient effort.

📈 Trend Chart & Health Status Monitoring

The GHM-SP10W displays trend charts for monitoring changes in lung function over time, enabling long‑term patient tracking and treatment evaluation.

💾 Data Storage, Upload & Review

Data can be stored, deleted, uploaded, and reviewed directly on the device, making it easy to track patient progress over time.

📱 Wireless Transmission

The GHM-SP10W supports wireless (Bluetooth) transmission for convenient data transfer to PCs and mobile devices.

✅ Calibration & Smart Alerts

• Calibration function ensures test accuracy

• Information prompts when volume or flow goes beyond the limits

🔋 Rechargeable Battery with Power Display

• Rechargeable lithium battery with charging tips

• Battery power display shows remaining charge

• Automatic power off when there is no operation in one minute

Specifications

What's Included

• GHM-SP10W Spirometer Main Unit

• 1.8" Color LCD Display

• Disposable Mouthpieces

• Nose Clip

• USB Charging Cable

• User Manual

Applications

The GHM-SP10W Spirometer is suitable for:

• Hospitals & Clinics – Routine pulmonary function testing, respiratory disease screening, and monitoring

• Primary Care & Family Practice – Quick, reliable lung function assessment for patients of all ages

• Home Healthcare – Convenient self‑monitoring for patients with asthma, COPD, and other chronic respiratory conditions

• Occupational Health – Screening for work‑related respiratory conditions

• Respiratory Medicine – Diagnosis and monitoring of asthma, COPD, and other pulmonary conditions

Why Choose the GHM-SP10W?

FAQ

Q: What is the GHM-SP10W Spirometer?

A: The GHM-SP10W is a handheld, wireless spirometer that uses infrared mode technology to measure key pulmonary function parameters including FVC, FEV₁, FEV₁/FVC, PEF, and FEF25-75.

Q: What parameters does the device measure?

A: The device measures FVC, FEV₁, FEV₁/FVC ratio, PEF, FEF25, FEF50, FEF75, and FEF25-75.

Q: Does the device display graphs?

A: Yes. The GHM-SP10W displays flow rate‑volume charts and volume‑time charts on its 1.8" color LCD screen.

Q: Does the device support wireless data transfer?

A: Yes. The GHM-SP10W supports wireless (Bluetooth) transmission for convenient data transfer to PCs and mobile devices.

Q: Can I store and review patient data?

A: Yes. Data can be stored, deleted, uploaded, and reviewed directly on the device.

Q: How is the device powered?

A: The GHM-SP10W features a rechargeable lithium battery with power display and charging tips.

Q: Does the device have an auto‑off function?

A: Yes. The device automatically powers off when there is no operation in one minute.

Q: What clinical settings is the device suitable for?

A: The GHM-SP10W is suitable for hospitals, clinics, and family routine testing.

Q: What conditions can the device help monitor?

A: The GHM-SP10W assists in the screening and monitoring of respiratory diseases such as asthma and COPD.
