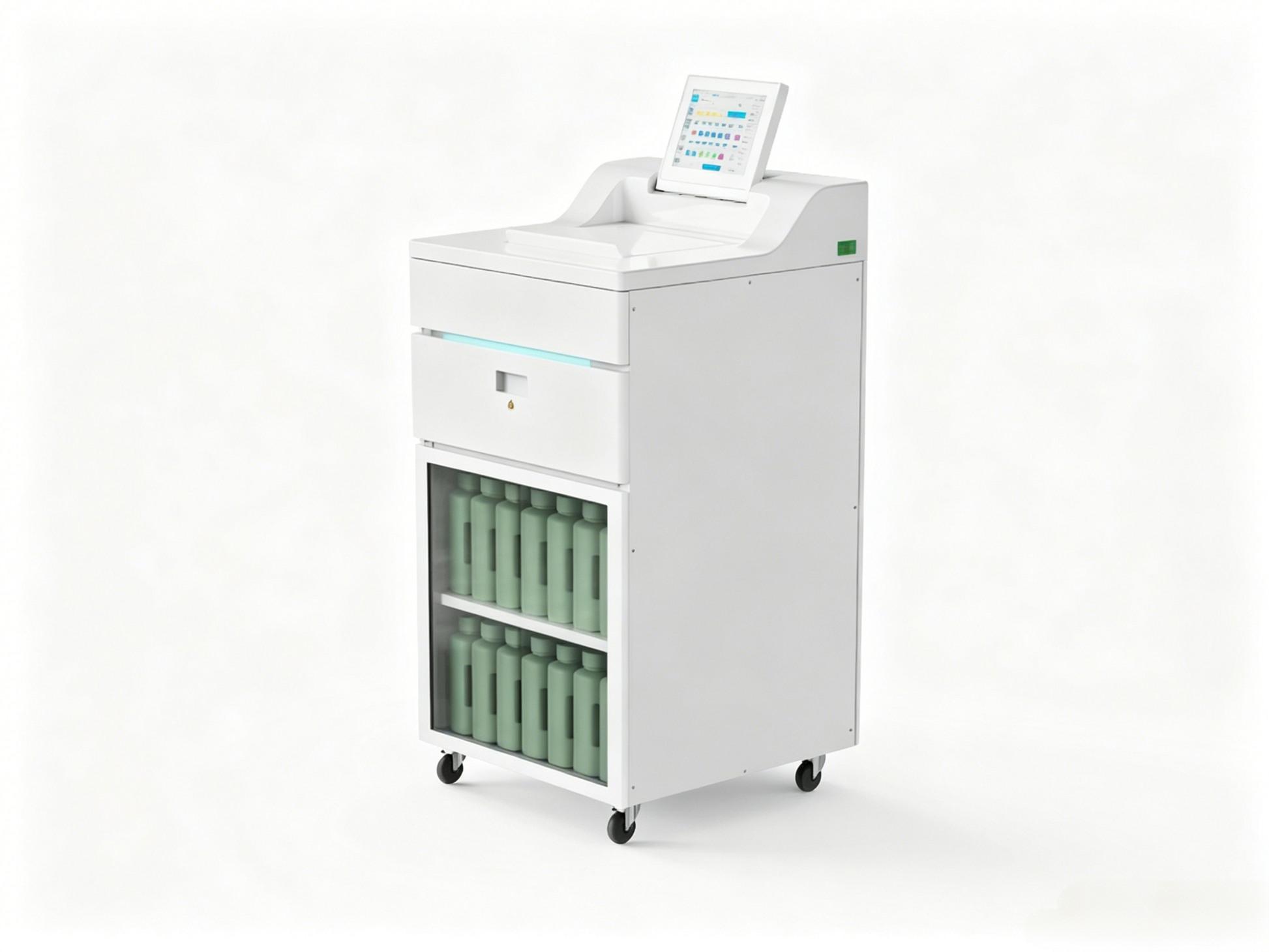

GHM TP-310 Tissue Processor

Product Description

A High-Throughput, Intelligent Solution for Modern Histopathology Labs

The GHM TP-310 Automated Tissue Processor redefines efficiency in the histology lab by seamlessly integrating high-capacity processing, smart automation, and robust safety features. Designed to handle the demanding workloads of modern pathology laboratories, this next-generation instrument ensures every tissue sample is processed with unmatched precision, consistency, and operator safety. From dehydration to paraffin infiltration, the TP-310 is your partner in delivering reliable diagnostic results faster than ever.

Key Features & Highlights

📦 Massive 310-Cassette Capacity
The TP-310 features a spacious 4L processing chamber capable of holding up to 310 cassettes simultaneously. Whether you are running a large-volume lab or dealing with fluctuating caseloads, this system keeps your workflow moving without unnecessary batching delays.

🥽 Ultrasonic Sensors with PTFE Coating
Ensure even and thorough dehydration across every batch. The ultrasonic sensors feature a durable PTFE coating, which prevents reagent adhesion and guarantees uniform fluid exchange for consistent, high-quality tissue preparation.

🔥 Dual Heating System with Backup
Laboratory downtime is not an option. The GHM TP-310 is equipped with dual heating modules plus a backup unit, delivering stable, uninterrupted thermal performance. This intelligent design ensures that wax baths and processing chambers maintain precise temperatures, even in the event of a primary heating failure.

🔒 Sealed Wax Baths for Safety & Purity
The system is configured with three 4.5L and one 5.6L fully sealed wax baths. This design effectively prevents vapor leakage and cross-contamination, safeguarding both sample integrity and operator health by minimizing exposure to hazardous fumes.

⚗️ Automated Reagent Management System
Simplify your daily operations with 14 reagent bottles and automated fluid rotation. The system features blue-light level reminders, so you never run out of critical solutions. This smart management reduces manual intervention, lowers reagent waste, and maintains consistent processing conditions.

🖥 12.6″ Smart Touchscreen Control
Take full command of your tissue processing with the large, intuitive 12.6-inch touchscreen interface. Program custom protocols, monitor real-time processing status, and access remote monitoring capabilities. The system also includes automatic self-check diagnostics and dual-lock safety features for worry-free operation.

📊 Adjustable Vacuum & Pressure
Fine-tune your processing parameters with an adjustable impregnation vacuum ranging from 0 to -60 KPA and positive pressure up to 50 KPA, giving you complete flexibility for specialized tissue types.

🛡 Robust & Compact Construction
The GHM TP-310 is built to last. With dimensions of 640(W) × 640(D) × 1000(H) mm and a sturdy weight of approx. 150 KG, this unit offers industrial-grade durability without overwhelming your lab space. Designed for operating temperatures between 10°C to 40°C and humidity up to 85%, it performs reliably in diverse lab environments.

Technical Specifications At-a-Glance

Why Choose GHM TP-310?

• Boost Workflow Efficiency: Process hundreds of samples per run with minimal hands-on time.

• Enhance Diagnostic Confidence: Ultrasonic uniformity and stable temperatures deliver superior morphological preservation.

• Prioritize Lab Safety: Sealed wax baths and remote monitoring protect staff while ensuring sample integrity.

• Future-Ready Automation: Program, monitor, and adapt protocols with a user-friendly smart interface.
