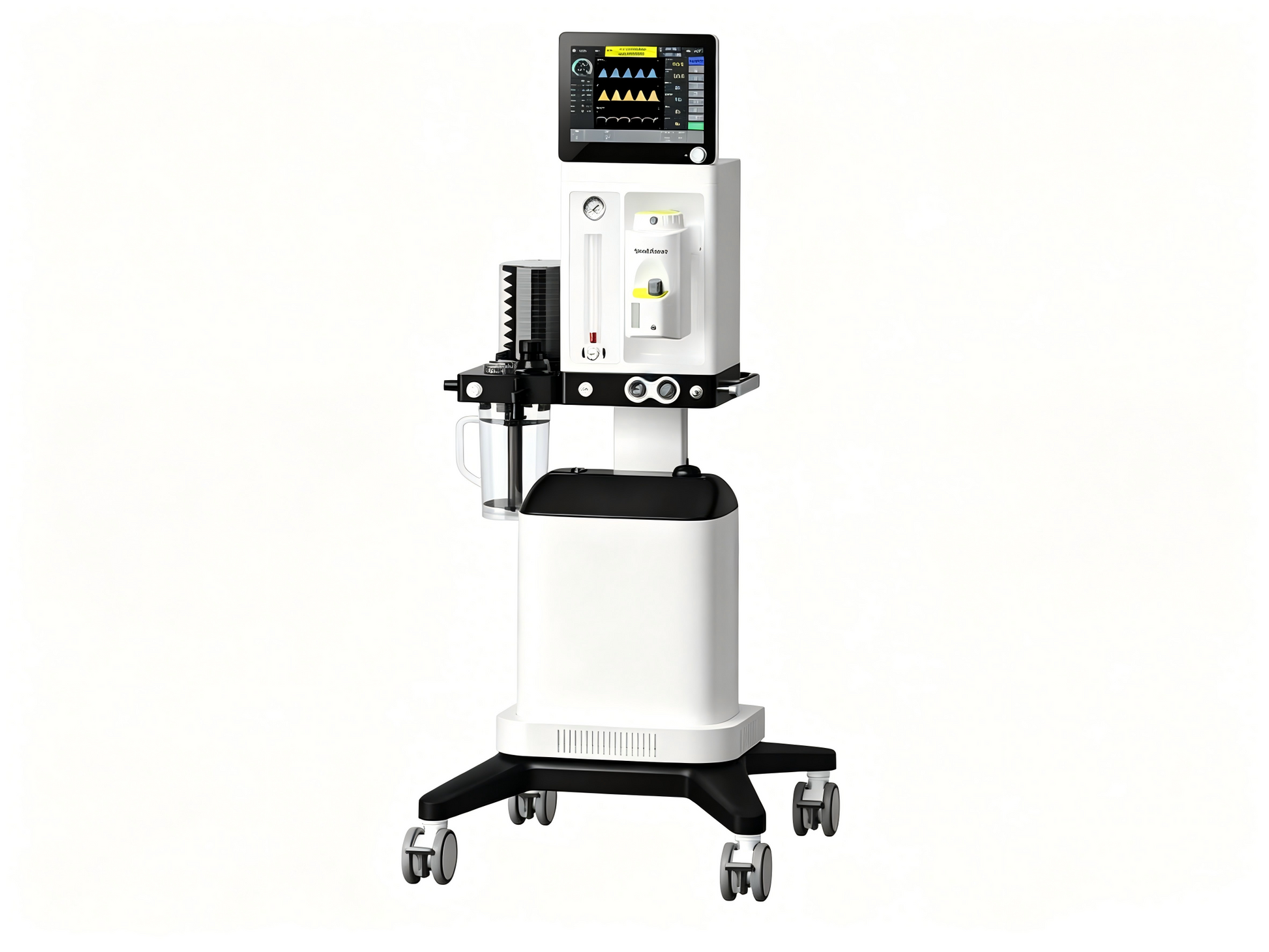

GHM V5 Plus Veterinary Anesthesia System
GHM V5 Plus Veterinary Anesthesia System
The GHM V5 Plus takes the trusted V5 platform and adds advanced ventilation capabilities – including adjustable PEEP, dual inspiratory/expiratory flow sensors, and automatic weight‑based parameter setting. It is the ideal choice for clinics that want precise control, especially for small or compromised patients, without moving to a fully electric turbine system.
🔧 Key Features (Upgraded)
🖥️ 10.2″ Foldable Color Touchscreen + Jog Dial
Large, bright display with a veterinary‑optimized interface. Fold flat to protect the screen. The jog dial provides fast, tactile control – perfect for gloved hands.
📏 Automatic Parameter Setting
Simply enter the animal’s weight – the GHM V5 Plus automatically recommends optimal tidal volume, frequency, and I:E ratio. Reduces guesswork and speeds up setup.
🫁 Adjustable PEEP (3–30 cmH₂O)
Improves oxygenation in hypoxemic patients. The built‑in baseline PEEP of 0.2 cmH₂O protects fragile lungs – essential for small animal anesthesia.
🧪 Dual Independent Flow Sensors (Inspiratory & Expiratory)
Separate sensors for inhale and exhale provide fail‑safe accuracy, real‑time leak detection, and superior safety compared to single‑sensor systems.
💨 Ultra‑Low Tidal Volume – 2 ml Minimum
Safely anesthetize neonates, kittens, puppies, birds, and rodents with precise volume delivery.
⚡ One‑Step Ventilation Mode Switching
Seamlessly transition between spontaneous and controlled ventilation. Continuous monitoring during spontaneous breathing – instant mode change.
🔄 Integrated ACGO Mode
Reduces cross‑infection risk and minimizes CO₂ retention during surgery. Flexible switching between open and closed anesthesia circuits.
🛡️ APL Valve (0–70 cm H₂O) with One‑Touch Closure
Precise pressure control for patient safety. One‑touch closure for emergency situations.
🌡️ Circuit Heating Device
Warms the airway, prevents condensation, and maintains sensor accuracy – especially valuable in long procedures.
🌬️ High‑Precision Vaporizer
Supports isoflurane, sevoflurane, and halothane. Delivers accurate anesthesia gas concentration.
🔌 Optional Monitoring Modules
Add‑on modules for anesthetic gases (isoflurane, sevoflurane), EtCO₂, and SpO₂ – all viewable on the same screen.
🧹 Scavenging Canister with Replacement Reminder
Protects staff from waste anesthetic gases. Smart reminder ensures timely canister change.
🧰 Flexible Installation
Tabletop, wall‑mount, or trolley (653×548×1271 mm). Compatible with monitor and infusion pump arms. Includes backup AC outlet.
📊 GHM V5 Plus Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions (main unit) | 228 × 370 × 290 mm (D×W×H) |
| Dimensions (with trolley) | 653 × 548 × 1271 mm |
| Weight (main unit) | 9 kg |
| Display | 10.2″ foldable color touchscreen |
| Animal weight range | 0.2 – 150 kg |
| Minimum tidal volume | 2 ml |
| Tidal volume range | 2 – 1600 ml |
| PEEP | OFF, 3 – 30 cmH₂O (baseline 0.2 cmH₂O) |
| Flow sensors | Dual (inspiratory & expiratory) |
| Frequency | 4 – 100 bpm (manual/assisted) |
| I:E ratio | 4:1 – 1:10 |
| APL valve | 0 – 70 cmH₂O, one‑touch closure |
| CO₂ absorbent canister | 800 ml (1500 ml optional) |
| Flowmeter | Oxygen, 0–4 L |
| Vaporizer types | Isoflurane, Sevoflurane, Halothane |
| ACGO interface | ✓ |
| Oxygen generator interface | ✓ |
| Monitor mounting bracket | ✓ |
| Infusion pump support | ✓ |
| Circuit heating | ✓ |
| Scavenging canister | ✓ (replacement reminder) |
✅ Why Choose GHM V5 Plus?
-
Upgraded ventilation – PEEP + dual flow sensors + automatic weight setting
-
Same compact, reliable platform as the standard V5 – proven in thousands of clinics
-
Hospital‑grade components – 90% of critical parts share supply chain with human medical devices
-
Cost‑effective – No turbine, no external driving gas – simple to maintain
-
Flexible oxygen source – Works with cylinders, piped gas, or an integrated oxygen generator (optional)
