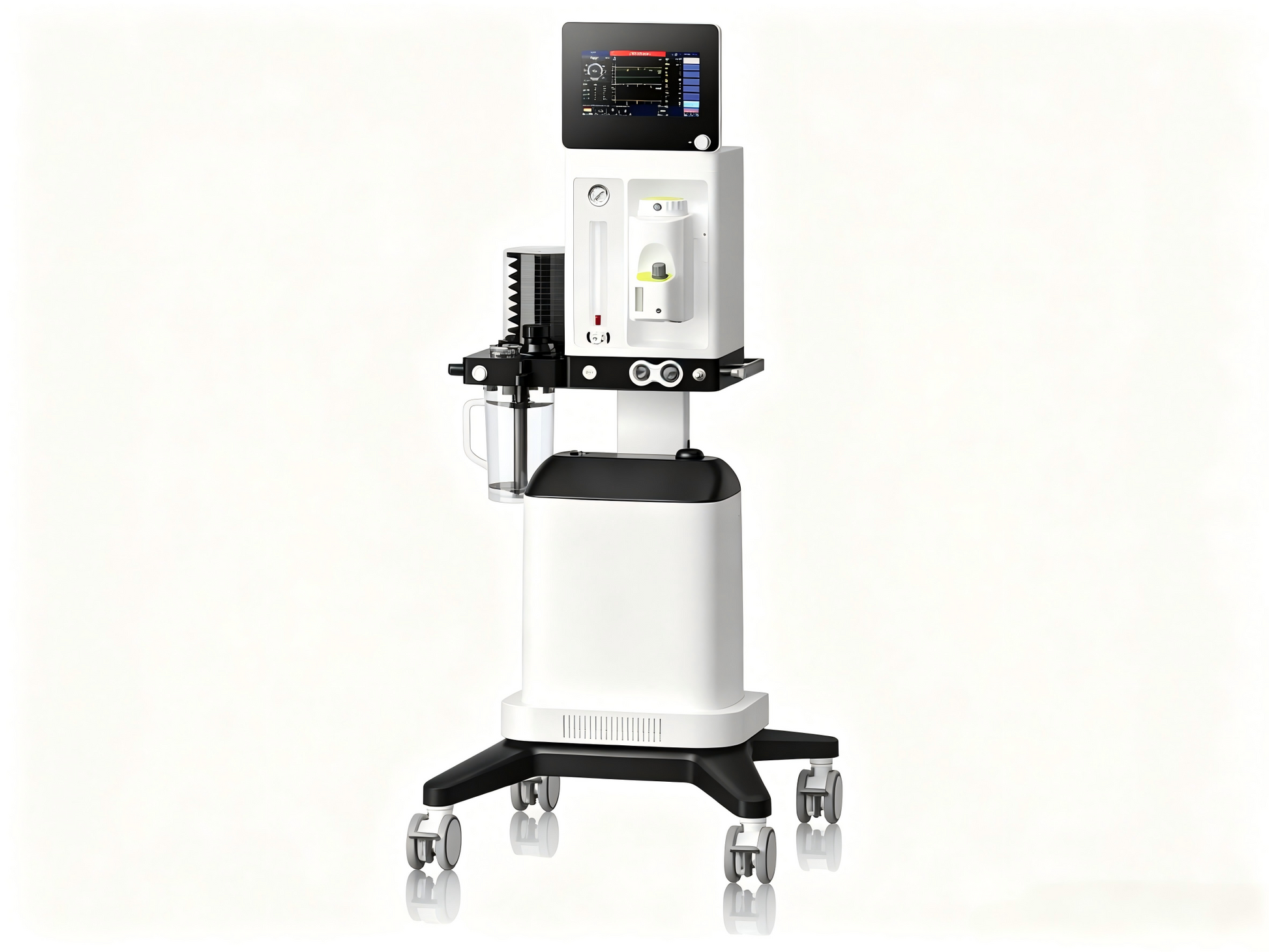

GHM V5 Veterinary Anesthesia System #

The GHM V5 is a streamlined, touchscreen‑driven anesthesia workstation designed for daily clinical use. With a foldable 10.2″ color display, one‑touch controls, and a leak‑reducing integrated circuit design, it delivers safe, precise anesthesia for patients from small exotics to large dogs – without unnecessary complexity.

🔧 Key Features

🖥️ 10.2″ Foldable Color Touchscreen

Large, bright display with veterinary‑friendly UI. Fold flat to protect the screen or save space. The jog dial provides intuitive backup control.

💨 Ultra‑Low Tidal Volume – 2 ml Minimum

Confidently anesthetize neonates, kittens, puppies, and birds with precise volume delivery.

🔒 Integrated Circuit Design

Minimizes external tubing and connections – drastically reducing leak risks and misconceptions. Safer for patients, easier for you.

⚡ One‑Step Ventilation Mode Switching

Seamlessly transition between spontaneous and controlled ventilation. Continuous monitoring during spontaneous breathing – instant mode change when needed.

🌀 Optimized Respiratory Circuit Dynamics

Rapid inhalation and exhalation at low flow rates. Ensures swift response and optimized delivery of anesthesia gases and oxygen.

🌡️ Circuit Heating Device

Warms the airway, prevents condensation, and maintains sensor accuracy – especially valuable in long procedures or cold environments.

📏 Variable Orifice Flow Sensor

Monitors both inspiratory and expiratory flow for precise, real‑time flow measurement.

🔄 Integrated ACGO (Airway Circuit Gas Outlet) Mode

Reduces cross‑infection risk, minimizes CO₂ retention during surgery, and supports flexible switching between open and closed anesthesia circuits.

🛡️ APL Valve (0–70 cm H₂O) with One‑Touch Closure

Ensures animal safety by allowing precise pressure control. One‑touch closure for emergency situations.

🧪 Large CO₂ Absorbent Canister – 800 ml (1500 ml optional)

Holds enough soda lime for long procedures. One‑hand, one‑touch installation and unlocking.

🔌 Optional Monitoring Modules

Add‑on modules for anesthetic gases (isoflurane, sevoflurane, halothane), EtCO₂, and SpO₂ – all viewable on the same screen.

🌬️ High‑Precision Vaporizer

Supports isoflurane, sevoflurane, and halothane. Delivers accurate anesthesia gas concentration for maximum patient safety.

🧹 Scavenging Canister with Replacement Reminder

Protects your staff from waste anesthetic gases. Smart reminder ensures timely canister change.

🔧 Expandable Mounting Options

Compatible with monitor and infusion pump support arms. Also features a backup AC outlet.

🧪 Integrated Oxygen Generator Interface

Use an oxygen generator as your primary oxygen source – perfect for clinics without piped gas or frequent cylinder refills.

🧰 Multiple Installation Options

Place on a tabletop, wall‑mount, or install on a trolley (trolley dimensions: 653×548×1271 mm).

📊 GHM V5 Technical Specifications

✅ Why Choose GHM V5?

• Hospital‑grade reliability – 90% of critical parts share supply chain with human medical devices

• Veterinary‑specific design – 2 ml tidal volume, ACGO mode, foldable screen, one‑touch controls

• Cost‑effective – No turbine, no driving gas – simple, robust, easy to maintain

• Flexible setup – Tabletop, wall, or trolley – works with or without an oxygen generator

• Trusted OEM – Same manufacturer behind top 5 global medical leaders
