GHM VPM001 US FIA Molecular System – Advanced Quantitative Immunofluorescence Analyzer Platform
GHM VPM001 US FIA Molecular System – Advanced Quantitative Immunofluorescence Analyzer Platform
SKU: GHM VPM001 US
Brand: Global Healthcare Medical
Product Overview

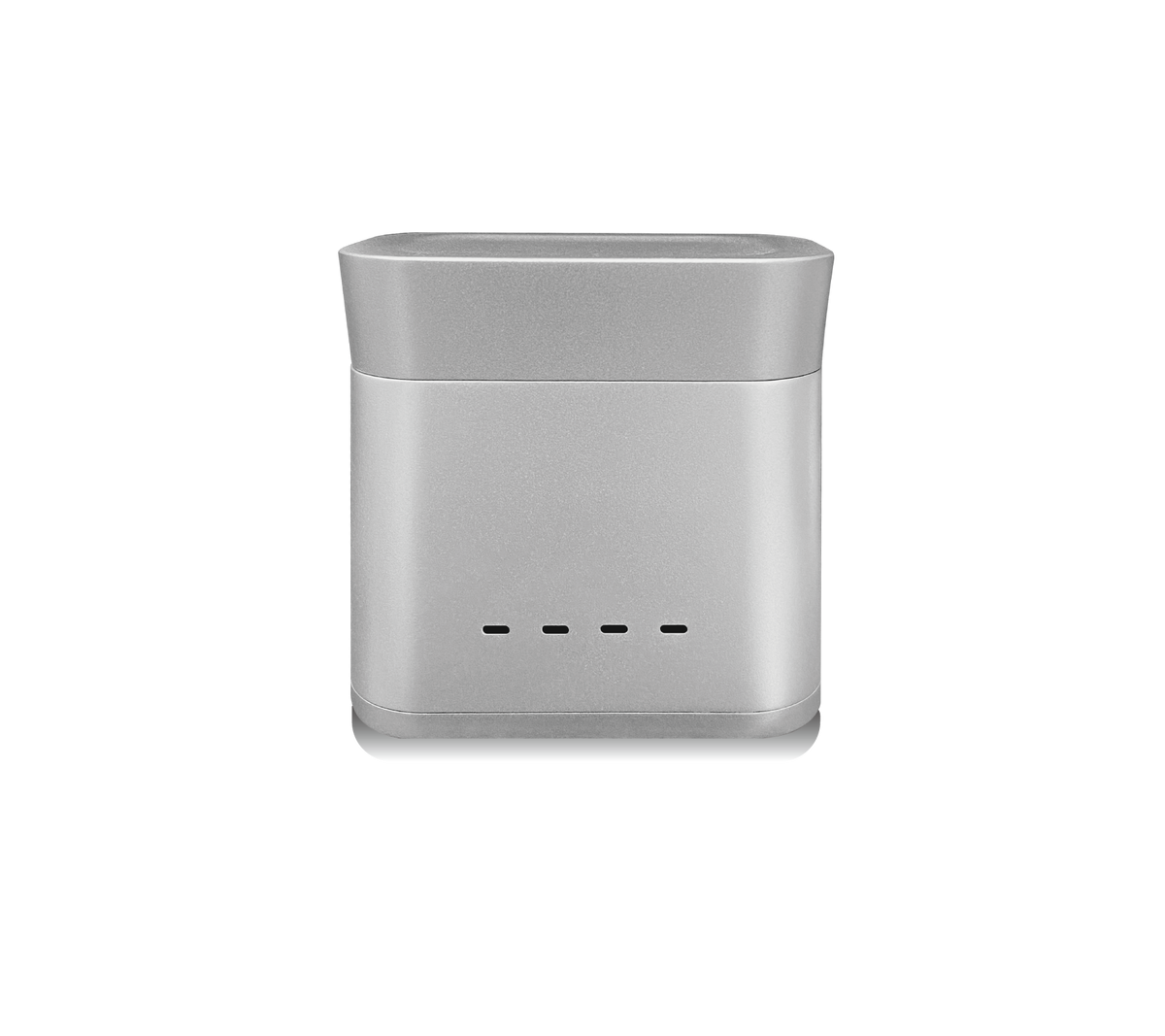

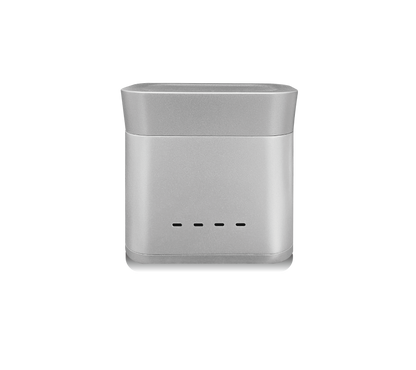

Global Healthcare Medical GHM VPM001 US FIA Molecular System is a compact benchtop fluorescence immunoassay (FIA) analyzer designed for the quantitative determination of biomarkers in clinical samples. The system utilizes fluorescence immunochromatography technology and is intended to be used with compatible fluorescence immunoassay test kits for the detection and quantification of a wide range of biomarkers across multiple clinical disciplines.
The GHM VPM001 US analyzer features auto calibration, barcode identification, and a built-in memory capacity of 50,000 results. The analyzer delivers reliable results in 10 ± 5 seconds after the test device is inserted. The system supports 30+ parameters by auto-scanning the code chip, providing a versatile platform for clinical laboratory testing.
The system is designed for professional use in clinical laboratories, hospitals, and clinics. The FIA analyzer operates with a small sample volume and provides fast, reliable results with simple operation.
This product is for in vitro diagnostic use only. For professional use only.
Key Features & Benefits
Advanced Technical Features – Reliable Fluorescence Immunoassay Platform
The GHM VPM001 US is a compact, benchtop FIA analyzer that delivers quantitative immunofluorescence results with advanced automation features. The system provides reliable performance for clinical laboratory settings, with results available in only 10 ± 5 seconds.
| Feature | Benefit |
|---|---|
| Auto calibration | Reduces manual calibration steps |
| Multiple parameters detection | Analyzer can detect 30+ parameters by auto-scanning the code chip |
| Barcode reader | 2D barcode scanning for test device identification |
| Small sample volume | Minimizes specimen requirements |
| Fast & reliable results | Only 10 ± 5 seconds to gain reliable results |
| Simple maintenance | External cleaning only, reducing total cost of ownership |
Fluorescence Immunochromatography Method – Quantitative Immunoassay Principle
The GHM VPM001 US operates on a quantitative fluorescence immunochromatography principle. Fluorescence labeling antigen or antibody is absorbed on the conjugate pad. When the sample is added to the hole of the sample pad, it moves forward through capillary force, dissolving the fluorescence labeling antigen or antibody on the conjugate pad and continuing to move to the detection line where antigen or antibody is enveloped. If the relevant antigen or antibody is present in the sample, immune complexes are formed and fluorescence markers gather on the detection line. The analyzer processes the fluorescence signal to display quantitative results.
| Feature | Benefit |
|---|---|
| Fluorescence immunochromatography | Reliable quantitative measurement principle |
| Immunofluorescence signal | Measurable concentration values |
| Automated interpretation | Results processed directly by the analyzer |
Multi-Parameter Test Menu – Comprehensive Clinical Application
The GHM VPM001 US supports a wide range of fluorescence immunoassay tests across major clinical disciplines, providing a versatile platform for clinical laboratory testing.
| Category | Test Items |
|---|---|
| Cardiac Markers | hs-cTnI, cTnI, TnT, BNP, NT-proBNP, CK-MB/cTnI/Myo, H-FABP |
| Inflammation | hs-CRP+CRP, PCT, PCT/CRP, SAA/CRP, SAA, IL-6 |
| Coagulation | D-Dimer |
| Renal Function | CysC, mAlb, NGAL, β2-MG |
| Diabetes | HbA1c |
| Thyroid Function | TSH, T3, T4, fT3, fT4 |
| Tumor Markers | tPSA, fPSA, AFP, CEA |
| Reproduction/Fertility | HCG+β, FSH, LH, PRL, AMH, Prog, Testosterone, E2 |
| Infectious Disease | Anti-HCV, Anti-TP, Anti-HIV, HBsAg, Anti-Hbs, SARS-CoV-2 Antigen, Dengue NS1 Ag |
| Others | Ferritin, Total IgE, RF, ASO, Anti-CCP, 25-OH-VD |
FIA Analyzer – Advanced Technical Platform
The GHM VPM001 US is a compact fluorescence immunoassay analyzer featuring auto calibration, barcode identification, and a large memory capacity.
| Feature | Benefit |
|---|---|
| Auto calibration | Reduces manual calibration steps |
| Barcode identification | 2D barcode scanning for test device identification |
| Code chip coding | Automatic parameter recognition |
| Memory capacity | 50,000 results storage |
| Connectivity | Direct LIS/HIS connection |
| Display | 3.5-inch LCD screen |
| Dimensions | 173 × 210 × 75.8 mm |
| Weight | 1.5 kg |
| Printer | Built-in printer |
| Multi-parameter detection | Analyzer can detect 30+ parameters |
Wide Storage Temperature – No Cold Chain Required
The analyzer is designed for convenient storage and transport, with a storage temperature range of -10 ~ 40°C. The kit storage range of 2 ~ 30°C eliminates the need for cold chain logistics.
| Specification | Detail |
|---|---|
| Analyzer storage temperature | -10 ~ 40°C |
| Analyzer operation temperature | 5 ~ 40°C |
| Relative humidity | 20 – 90% |
| Kit storage temperature | 2 ~ 30°C |
Simple Operation – Professional Laboratory Testing
The test procedure involves three simple steps: mix the sample with buffer, add the mixed specimen, and insert the device into the analyzer.
| Step | Action |
|---|---|
| 1 | Mix the sample with buffer |
| 2 | Add the mixed specimen |
| 3 | Insert device into the analyzer |
Product Specifications
| Specification | Detail |
|---|---|
| Model / SKU | GHM VPM001 US |
| Product Type | FIA Molecular System |
| Assay Method | Quantitative Fluorescence Immunochromatography |
| Weight | 1.5 kg |
| Dimensions | 173 × 210 × 75.8 mm |
| Channel | Single |
| Display | 3.5-inch LCD |
| Coding | Code chip |
| Barcode Identification | 2D |
| Test Time | 10 ± 5 seconds |
| Operation Temperature | 5 ~ 40°C |
| Storage Temperature | -10 ~ 40°C |
| Relative Humidity | 20 – 90% |
| Connectivity | Direct LIS/HIS |
| Battery | AC/DC adapter |
| Printer | Built-in |
| Memory | 50,000 results |
| Parameters Detected | 30+ parameters |
| Intended Use | In vitro diagnostic use; professional use only |
| Package Options | Analyzer system |
Why Clinical Laboratories Choose Global Healthcare Medical
| Consideration | GHM VPM001 US |
|---|---|
| Fast analyzer reading | 10 ± 5 seconds per test |
| Auto calibration | Reduces manual steps |
| Multi-parameter platform | Analyzer supports 30+ parameters |
| Large memory | 50,000 results storage |
| LIS/HIS connectivity | Direct data integration |
| Convenient storage | Wide temperature range |
| Simple operation | Three-step test procedure |
| Simple maintenance | External cleaning only |
| Comprehensive test menu | Supports cardiac, inflammation, renal, diabetes, thyroid, tumor, fertility, and infectious disease markers |
| Compact design | Benchtop format for clinical laboratory use |
About Global Healthcare Medical
Global Healthcare Medical is dedicated to connecting clinical laboratories, hospitals, and healthcare distributors with high-quality in vitro diagnostic devices designed for reliable performance. The GHM VPM001 US is part of our fluorescence immunoassay product line, developed to support efficient clinical testing across multiple disciplines in professional settings.
Our focus is on dependable performance, clear documentation, and responsive support for clinical and laboratory environments.
