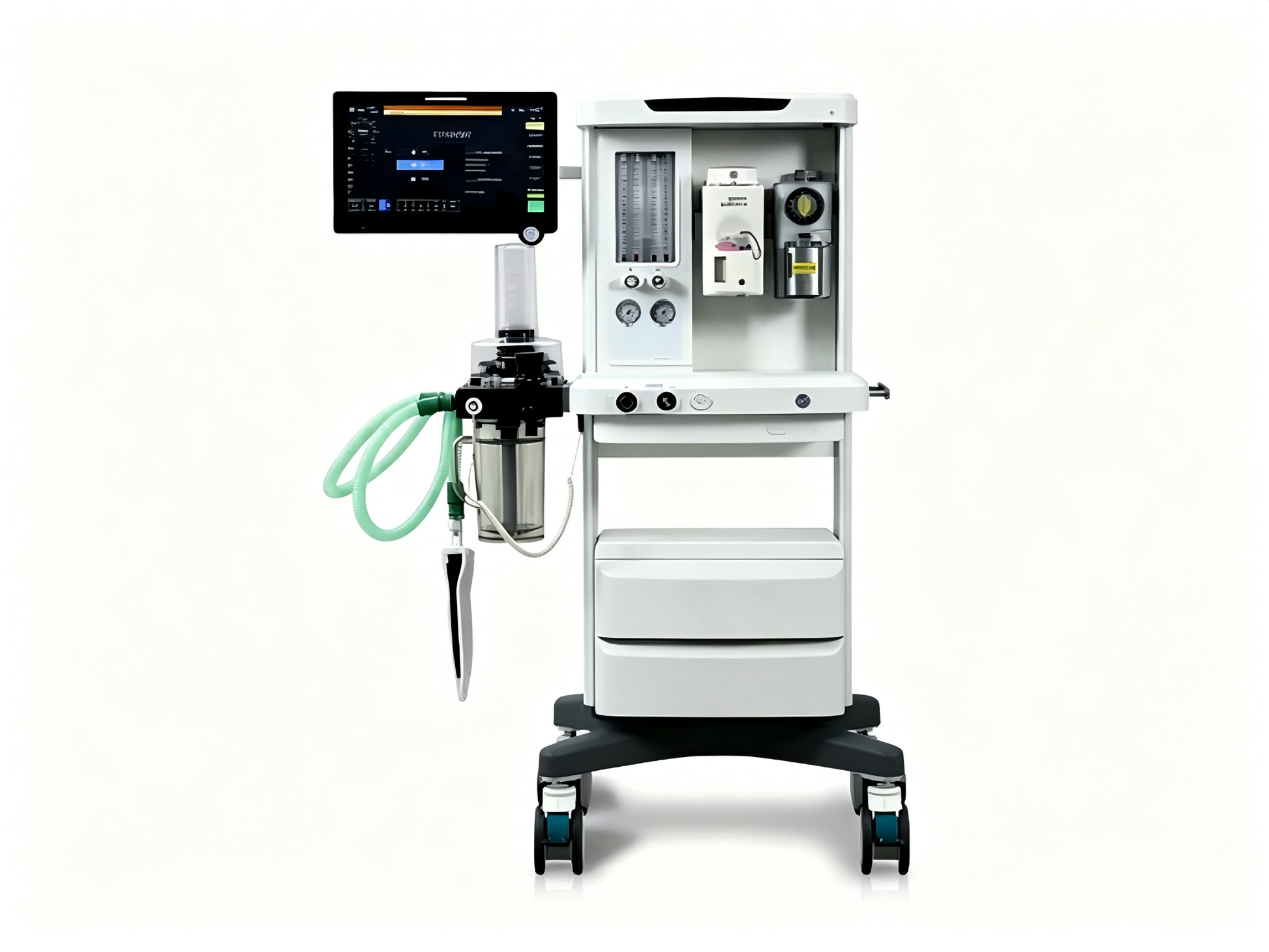

GHM X35Vet Veterinary Anesthesia Machine #

1. Advanced Ventilation Performance

The GHM X35Vet combines electronically controlled precision with pneumatically driven durability, delivering stable ventilation across a wide range of veterinary cases. With a tidal volume range of 10 mL to 1600 mL, this unit accommodates everything from feline patients to large canine and equine procedures.

Ventilation modes include: VCV, PCV, SIMV-V, SIMV-P, SPONT/PSV (with optional PRVC and SIMV-PRVC available). These modes allow you to tailor respiratory support to the specific pathophysiology of each patient — whether they require full control or pressure-supported spontaneous breathing.

Automatic fresh gas compensation continuously adjusts fresh gas flow to match patient demand and circuit leakage, ensuring delivered tidal volume remains accurate regardless of changing conditions. Electronic PEEP (Positive End-Expiratory Pressure) is fully adjustable, helping to recruit alveoli and improve oxygenation in compromised patients.

2. Intuitive 10.2-Inch Touchscreen Interface

The high-resolution 10.2-inch color TFT touchscreen gives you complete control over the ventilator while displaying real-time lung mechanics parameters and pressure-volume/flow-volume loops. Clinicians can assess patient respiratory mechanics at a glance, making ventilator adjustment more efficient during critical procedures.

A 24-hour trend display provides historical data on key respiratory parameters, enabling you to track patient progress throughout lengthy surgical interventions or ICU stays.

3. Comprehensive Gas Delivery & Safety Systems

• Dual gas supply options: Choose between O₂ + N₂O or O₂ + Air, depending on your clinic’s gas preferences.

• 4-tube flowmeter with hypoxic guard system: The integrated hypoxic guard prevents delivery of low-oxygen mixtures, eliminating a common source of anesthetic risk.

• Dual vaporizer positions: Support for up to two vaporizers with an interlock mechanism — switch between agents without changing hardware.

• Optional dual yokes for backup cylinders: Ensures continuous gas supply even if your central pipeline experiences interruption.

The GHM X35Vet is designed to make safety automatic rather than optional.

4. Integrated Breathing Circuit with CO₂ Bypass

The integrated breathing circuit features a CO₂ bypass, allowing you to temporarily divert flow around the soda lime canister when fresh canister installation is needed — without disconnecting the patient. This design minimizes circuit leakage risk and reduces dead space, improving ventilation efficiency.

5. Independent ACGO for Non-Rebreathing Circuits

A dedicated ACGO (Assistant Common Gas Outlet) provides an independent gas outlet for use with non-rebreathing circuits — ideal for small patients weighing under 7 kg. Switching between rebreathing and non-rebreathing setups is fast and tool-free, allowing you to treat everything from a 2 kg kitten to a 50 kg canine in the same day.

6. Build Quality & Serviceability

Every GHM X35Vet is manufactured to medical-grade quality standards, with durable materials that withstand the demands of daily veterinary practice. The modular breathing system and accessible component layout simplify routine maintenance, minimizing downtime and keeping your surgical schedule on track.

Key Specifications Table

Why Choose the GHM X35Vet for Your Veterinary Practice?

From general practice clinics to specialty referral hospitals and academic teaching institutions, the GHM X35Vet delivers the precision, safety, and ease of use that modern veterinary anesthesia demands. Backed by Global Healthcare Medical‘s commitment to quality veterinary equipment, this machine is designed to support your clinical team and protect your patients — case after case.
