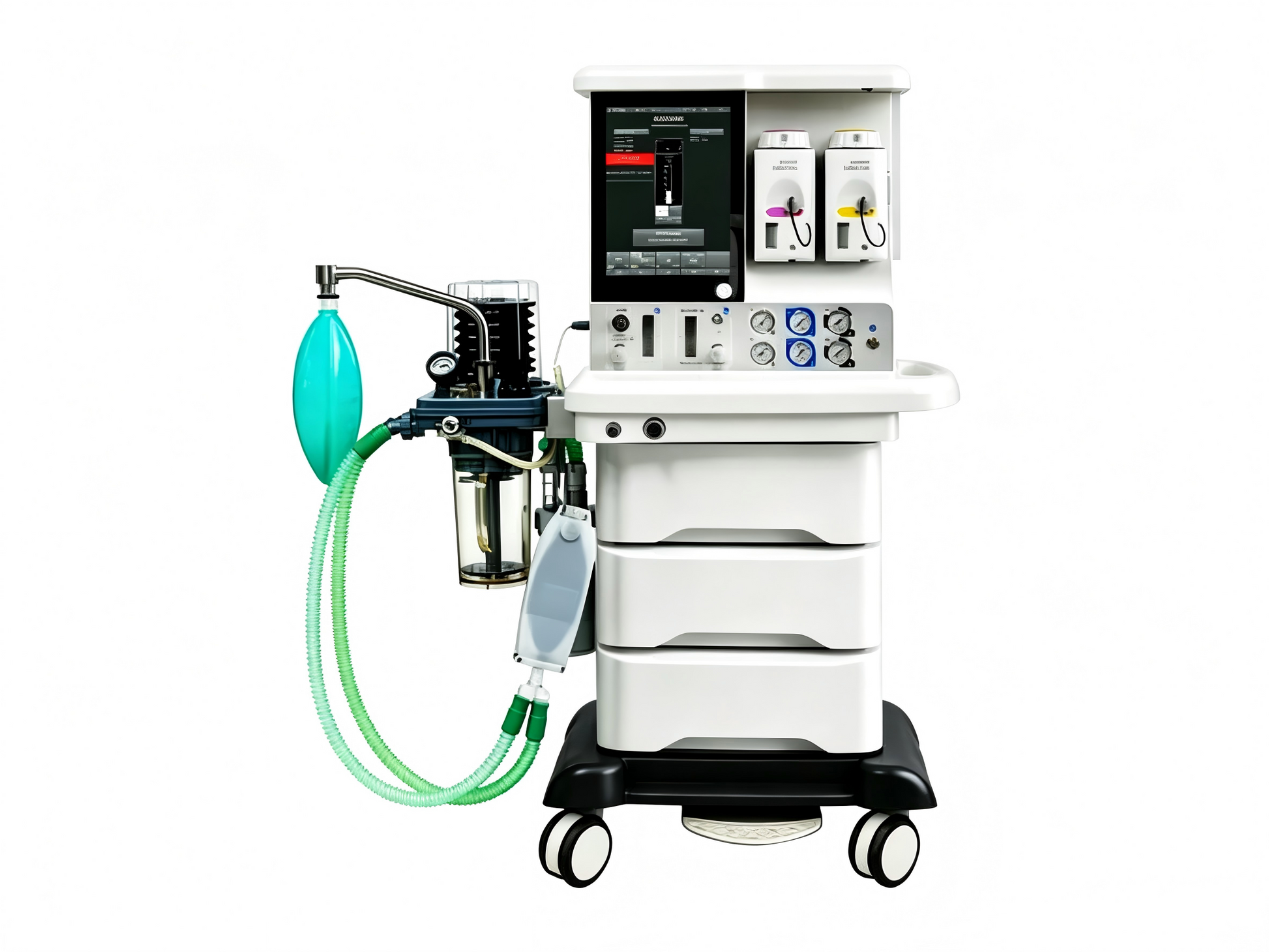

GHM X55Vet Veterinary Anesthesia Machine #

Key Features

18.5" HD Touchscreen Interface
Enjoy a crystal-clear 1920×1080 high-resolution display that puts all essential ventilation parameters and patient data at your fingertips. The responsive touch interface streamlines workflow and reduces setup time in busy ORs.

Precision Anesthesia Delivery
The accurate electronic flow mixer supports low-flow anesthesia techniques, helping you conserve costly anesthetic agents while maintaining precise control. Tidal volume can be set from 5 mL to 1600 mL, accommodating everything from small cats and dogs to larger animals.

Comprehensive Ventilation Modes
Standard modes include VCV, PCV, PRVC, SIMV-V, SIMV-P, SIMV-PRVC, and SPONT/PSV — giving you the flexibility to manage routine and complex cases alike. Advanced optional modes (APRV, DuoPhasic, VS) are available for specialized respiratory strategies.

Dual-Screen Design for Enhanced Safety
An independent status display continuously shows gas source status and airway pressure at a glance. This redundant information layer helps you monitor critical parameters without cluttering the main screen.

Advanced Lung Protection Tools
Flow pause, lung recruitment maneuvers, and CPB (Cardiopulmonary Bypass) support give you the tools to protect delicate lung tissue — especially valuable during cardiac surgery and high-risk procedures.

Autoclavable Integrated Circle Absorber
The fully autoclavable circuit absorber features a CO₂ bypass for fast canister changes and an integrated heater to reduce condensation. Designed for high‑volume clinics where rigorous infection control is non‑negotiable.

Complete Patient Monitoring Suite
Four loop charts (P-V, F-V, P-F, V-CO) plus 72‑hour trend data help you track respiratory mechanics over time. Optional CO₂/AG and paramagnetic O₂ modules with anesthetic consumption calculation give you deeper insight into patient status.

Uninterrupted Operation
Single-battery backup delivers over 2 hours of runtime; dual‑battery configuration extends to 4 hours. Perfect for intra‑hospital transport, power outages, or procedures that extend beyond scheduled OR time.

Flexible Gas Delivery
Driving gas switching function and ACGO auxiliary common gas outlet add versatility for specialized techniques or backup scenarios when you need to change gas sources mid‑procedure.

Optional HFNC Support
High Flow Nasal Cannula (HFNC) capability is available as an option — expanding your respiratory support options for spontaneously breathing patients in recovery or pre‑oxygenation.

Technical Specifications Table

Why Choose the GHM X55Vet?

Unlike entry‑level veterinary anesthesia machines that sacrifice advanced features for affordability, the GHM X55Vet brings hospital‑grade ventilation strategies — including PRVC and SIMV‑PRVC — into the veterinary space. The large 18.5‑inch touchscreen rivals human‑grade anesthesia workstations, while the integrated absorber with CO₂ bypass and autoclavable design addresses the infection‑control demands of high‑volume practices.

Whether you're upgrading from a basic machine or outfitting a new surgical suite, the GHM X55Vet delivers the precision, safety, and durability your patients deserve.
