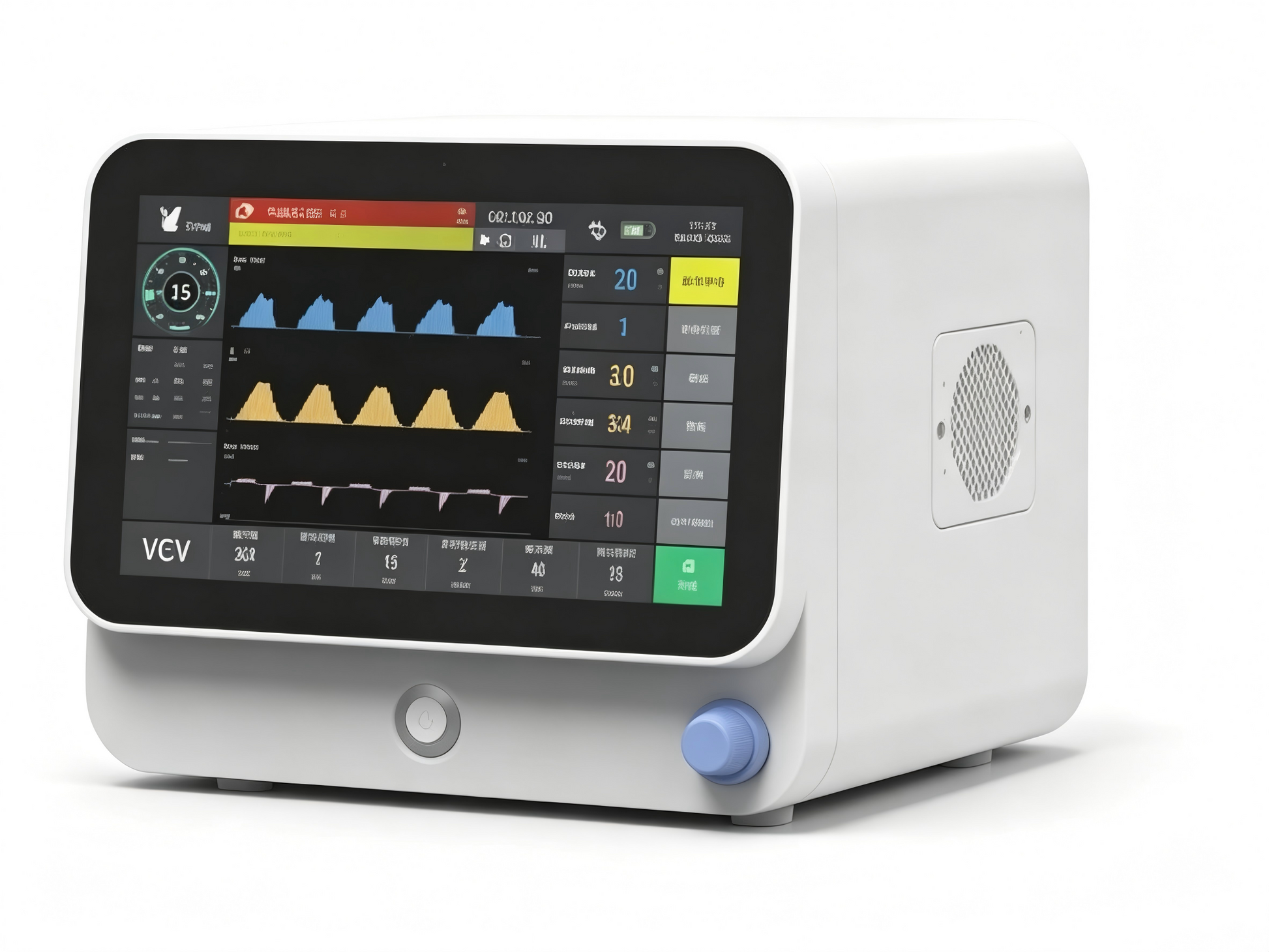

GHM X8 Veterinary Anesthesia Ventilator #

The GHM X8 is the next generation of electric‑driven veterinary anesthesia ventilators. Built with hospital‑grade components and a high‑performance turbine, it eliminates the need for external driving gas, reduces costs, and delivers precise ventilation from 0.2 kg exotic patients to 150 kg large breeds.

🔧 Key Features

⚡ High‑Performance Turbine – No Driving Gas Needed

Fully electric drive with built‑in turbine. No costly compressed air required – lower operating costs, quieter operation, and complete independence from gas cylinders.

🖥️ 12.1″ Foldable Color Touchscreen

Class‑leading large display with workflow‑optimized UI. Foldable design saves space and protects the screen during transport. Jog dial for precise control.

🤖 Veterinary Autopilot™ (AVS) – One‑Touch Smart Ventilation

Enter the animal’s weight – AVS automatically adjusts all ventilation parameters in real time. Reduces clinical workflow complexity by 28% and frees your hands for patient care.

🐭 Ultra‑Low Tidal Volume – 2 ml Minimum

Safely ventilate neonates, kittens, puppies, birds, and rodents – precise 2 ml tidal volume with excellent low‑flow performance.

🫁 Advanced PEEP & Ultra‑Low Expiratory Resistance

Baseline PEEP 0.2 cmH₂O + adjustable PEEP (3–30 cmH₂O) improves oxygenation in hypoxemic patients. Ultra‑low expiratory resistance protects fragile lungs.

🧪 Dual Independent Flow Sensors (Inspiratory & Expiratory)

Separate sensors for inhale and exhale – fail‑safe accuracy, real‑time leak detection, and superior patient safety compared to single‑sensor designs.

📈 Multiple Ventilation Modes – Seamless Switching

• AVS (Auto Ventilation)

• VS (Volume Support)

• VCV (Volume Controlled)

• PCV (Pressure Controlled)

• PRVC (Pressure Regulated Volume Control)

One‑step switching between spontaneous and controlled ventilation – continuous monitoring during spontaneous breathing.

🌡️ Circuit Heating Device & Optimized Respiratory Dynamics

Prevents condensation, warms the airway, maintains sensor accuracy, and ensures rapid response to low‑flow anesthesia gas delivery.

🔌 Integrated ACGO Mode

Reduces cross‑infection risk and minimizes CO₂ retention during surgery. Flexible switching between open and closed anesthesia circuits.

📡 Remote Inspiratory Hold

Control inspiration hold remotely from outside CT or MRI rooms – ideal for imaging procedures without radiation exposure or disturbing the patient.

🧩 Optional Monitoring Modules

Plug‑in modules for anesthetic gases (isoflurane, sevoflurane, halothane), EtCO₂, and SpO₂ – all displayed on the same screen.

🔧 Expandable & Service‑Friendly

• Compatible with monitor and infusion pump support arms

• Backup AC outlet

• Scavenging canister with replacement reminder

• Integrated molecular sieve oxygen generator (optional) – self‑sufficient oxygen supply

📊 GHM X8 Technical Specifications

✅ Why Choose GHM X8?

• Hospital‑grade reliability – 90% of critical parts share supply chain with human medical devices

• Veterinary‑specific innovation – Turbine system, AVS mode, 2 ml tidal volume, ultra‑low PEEP

• Cost saving – No external driving gas, low maintenance, integrated oxygen generator option

• Flexible mounting – Tabletop, wall‑mount, or trolley (653×548×1271 mm with trolley)

• Global trust – OEM manufacturer for top 5 global medical leaders
