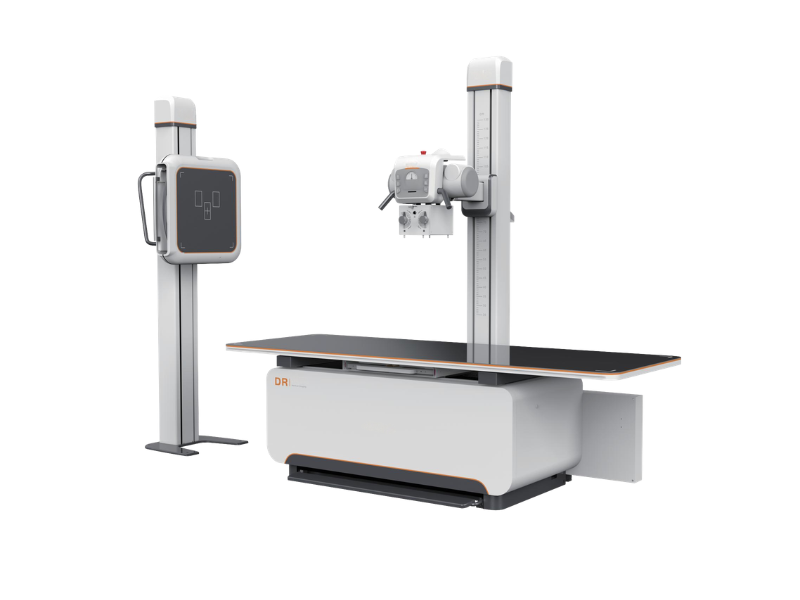

GHM100-RAD(S)-D Floor-mounted DR #

Versatile Floor-Mounted DR System – Engineered for Human Radiography
The GHM100-RAD(S)-D is a floor-mounted digital radiography system designed for high-quality human diagnostic imaging — featuring a Toshiba X-ray tube, large-format CsI detector, and AED function as standard.

High-Frequency Generator for Superior Performance

• Generator model: GHM50-URF N63 high-voltage generator

• Power: High-frequency technology for stable, consistent X-ray output

• Dose optimization: Optimized radiation dose for patient safety

Delivers reliable imaging performance for a wide range of radiographic examinations.

Toshiba X-Ray Tube – Proven Reliability

• X-ray tube model: Toshiba E7252X

• Brand: Trusted Toshiba imaging technology

Engineered for consistent, high-quality X-ray output in demanding clinical environments.

Large-Format CsI Detector for Premium Image Quality

• Detector model: GHM50-4343S-C

• Detector size: 17" × 17" large-format flat panel detector

• Scintillator: CsI (Cesium Iodide) for superior image quality

• AED function: Automatic Exposure Detection included as standard

The large-format CsI detector delivers exceptional image quality with high contrast and low noise — ideal for chest, abdominal, and orthopedic imaging.

Precision Collimation for Optimal Beam Control

• Collimator model: INNOVA C30

Provides precise X-ray beam control to minimize patient dose and improve image quality.

Floor-Mounted Radiography Frame for Stable Operation

• Frame model: GHM50-J1B radiography frame

• Design: Floor-mounted configuration for stable, reliable positioning

Provides a sturdy, space-efficient design suitable for hospitals and imaging centers.

Professional Digital Radiography Workstation

• Software: GHM DROC digital radiography system

• Computer: Dell desktop computer

Complete digital imaging workstation with intuitive controls and efficient workflow management.

Fixed Grid for Scatter Reduction

• Grid specification: 10:1 ratio, 40 L/cm, 18" × 18"

Ensures cleaner images by minimizing scattered radiation.

Automatic Exposure Detection (AED) – Standard

• AED function: Included as standard equipment

Eliminates the need for a separate exposure synchronizer cable — simplifies workflow and reduces setup time.

Complete System Package

• Power distribution: Built-in

• AC power: 3-phase AC380V, 50/60Hz, EU plug

• Certification: IEC certified (CE certificate not currently available; FDA certification in process)

Ready-to-install complete system with all necessary components.

Important Note
For human use only — This system is designed for human diagnostic radiography.
