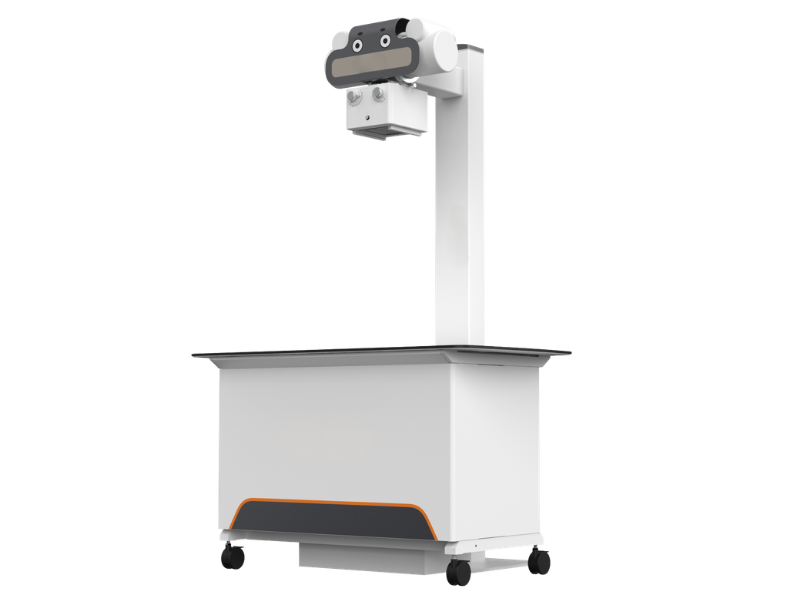

GHM100E-32S Veterinary Digital Diagnostic Radiography System

Veterinary Digital Radiography System – High-Quality Images with Simple, Intelligent Operation
The GHM100E-32S is a veterinary digital radiography system designed specifically for the clinical application needs of veterinarians — providing high-quality images and a simple, intelligent operation experience for cats, dogs, birds, fish, turtles, snakes, and other exotic species.

Professional Imaging Chain for Superior Veterinary Images

• Detector: Self-developed 17" × 17" wired CSI flat panel detector (Cesium Iodide)

• Coverage: Wider shooting range for superior full-frame imaging

• Generator: 32kW high-voltage energy storage generator

• Power input: Single-phase, 100–240V for global compatibility

The large-format CsI detector delivers exceptional image quality, while the energy-storage generator eliminates the need for three-phase power.

Built-in Energy-Storage High Voltage Generator – Space-Saving Design

• Input: Supports single-phase input voltage (100–240V)

• Footprint: Built-in design saves valuable floor space

• Installation: No special electrical wiring required

The integrated generator reduces system footprint and simplifies installation — ideal for space-constrained veterinary clinics.

Split Design of Rack and Table – Flexible Installation

• Design: Split design of rack and table

• Mobility: Facilitates easy movements

• Space saving: Saves space in your exam room

The modular design allows flexible room configuration and easy system repositioning.

Large-Size Flat Panel Detector for Full-Frame Imaging

• Size: 17" × 17" self-developed flat panel detector

• Scintillator: CSI (Cesium Iodide) for superior image quality

• Coverage: Covers a wider shooting range for superior imaging

Capture whole-body and full-spine images in a single exposure — reducing exam time and patient stress.

Integrated Console for Easy Operation

• Console: GHM100E-32S integrated console (standard)

• Functions: Easy-to-use console for startup, shutdown, and manual exposure

• User-friendly: Simple, intuitive operation

Streamlined controls minimize training time and simplify daily use.

Exposure Control Foot Switch (Standard)

• Foot switch: Included as standard equipment

• Hand switch: Optional wired hand switch available

• Wireless option: Optional wireless hand switch also available

Hands-free exposure control enables precise positioning while maintaining patient restraint.

Free Movement Table with Fasten Brake System

• Table design: Integrated free movement table

• Brake system: Fasten brake system for secure patient positioning

• Height adjustment: Easy patient loading and positioning

Effortless table movement simplifies patient positioning for animals of all sizes.

Superior Image Acquisition and Processing System

• APR program: Anatomical Programmed Radiography

• Species supported: Cat, dog, bird, fish, turtle, snake, and more

• Interface: Anatomic graphic user interface for various species

Species-specific APR settings ensure optimal exposure parameters for every patient type.

Professional Veterinary Measurement Tools

• VHS: Vertebral Heart Size measurement function

• TTA: Tibial Tuberosity Advancement measurement function

• TPLO: Tibial Plateau Leveling Osteotomy measurement function

• HD: Hip Dysplasia measurement function

Built-in orthopedic measurement tools support surgical planning and objective diagnostic reporting.
