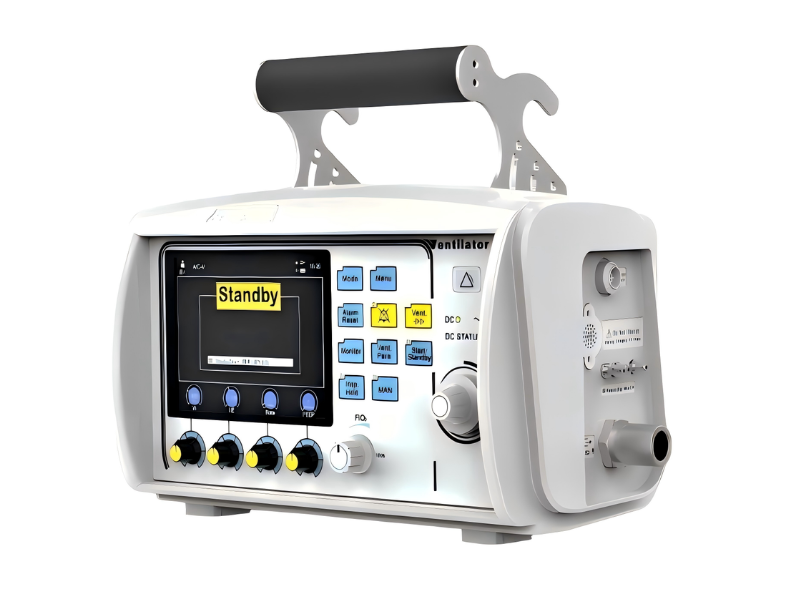

GHM200 High Configuration Transport Ventilator #

The GHM200 High Configuration Ventilator combines portability with clinical-grade performance, offering a compact design and an intuitive 5.6-inch high-definition color touchscreen. Engineered for both in-hospital and out-of-hospital use, it delivers reliable respiratory support across a wide range of patient needs.

Key Features:

• Compact & Portable Design
  Ideal for use inside and outside the hospital, with a one-button quick ventilation function to save critical time in emergency situations.

• High-Definition Touchscreen
  A 5.6-inch color touchscreen provides clear visualization and easy operation, streamlining workflow at the bedside or during transport.

• Versatile Patient Compatibility
  Suitable for adults, children, and infants, ensuring broad clinical applicability.

• Comprehensive Ventilation Modes
  Supports A/C-V, A/C-P, SIMV-V, SIMV-P, SPONT, O2 Therapy (optional), A/C+Sigh, MAN, and NIV-CPAP to accommodate both invasive and non-invasive ventilation strategies.

• Wide Parameter Settings

  • Tidal Volume: 20–2000 mL

  • Respiratory Rate: 4–80 bpm (SIMV: 1–40 bpm)

  • PEEP: 2–35 cmH₂O

  • FiO₂: 40–100%

  • Pressure Limit: 5–70 cmH₂O

• Advanced Monitoring Capabilities
  Real-time monitoring of tidal volume, minute ventilation, airway pressures, respiratory rate, and FiO₂.
  Optional CO₂ concentration monitoring (0–13 vol%) provides valuable feedback on patient breathing status.

• Enhanced Oxygen Therapy Mode
  Optional oxygen therapy mode helps improve patient oxygenation levels, expanding treatment options.

• Waveform & Loop Displays
  Visualize pressure-time, flow-time, volume-time waveforms, as well as pressure-volume and flow-volume loops for comprehensive respiratory assessment.

• Reliable Backup Power
  Built-in backup power supports ≥3 hours of operation, ensuring uninterrupted care during transport or power interruptions.

• Comprehensive Safety Alarms
  Includes apnea alarm, low battery alarm, battery depletion alarm, and alarm mute timing to ensure patient safety at all times.
