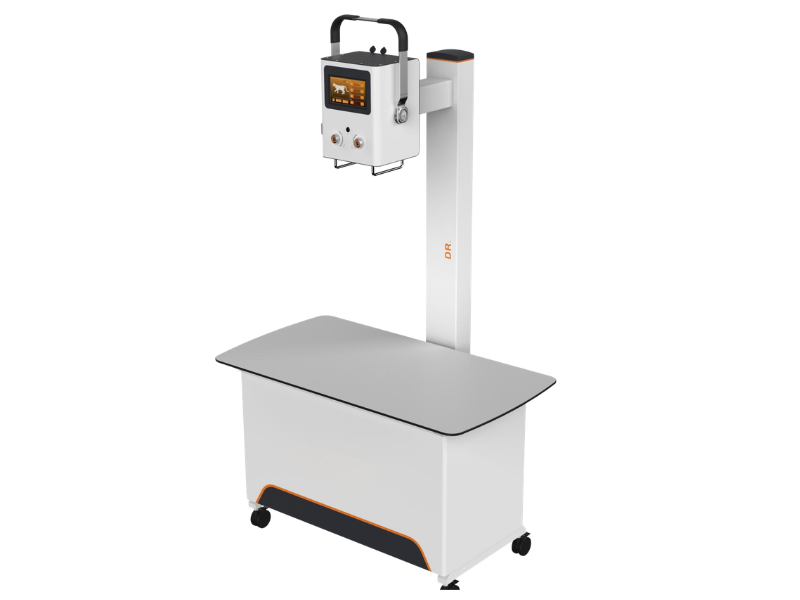

GHM200E-8S Veterinary Digital Diagnostic Radiography System

High-Power Portable Veterinary DR System – Simple, Intelligent, and Space-Saving
The GHM200E-8S is a veterinary digital radiography system designed specifically for the clinical application needs of veterinarians — featuring an 8kW all-in-one portable generator, large-format CsI detector, and an intuitive touchscreen interface for high-quality imaging with simple, intelligent operation.

All-in-One Portable Generator – Modular Integrated Design

• Power: 8kW high-power integrated portable generator

• Integration: High voltage generator integrates with X-ray tube and collimator

• Input: Supports single-phase input voltage

• Installation: Easy to install and disassemble

• Design: Core components all-in-one design, simple and generous

The all-in-one generator simplifies installation, reduces system footprint, and enables modular integrated operations.

Large-Size Flat Panel Detector for Full-Frame Imaging

• Size: Self-developed 17" × 17" flat panel detector

• Scintillator: CSI (Cesium Iodide) for superior image quality

• Coverage: Covers a wider shooting range for superior imaging

The large-format CsI detector delivers exceptional image quality — capture whole-body and full-spine images in a single exposure, reducing exam time and patient stress.

LCD Touchscreen for Intuitive Operation

• Screen size: 7-inch LCD touchscreen

• Interface: Easy-to-use interface with clear display

• Operation: Smooth, responsive touchscreen controls

User-friendly touchscreen interface minimizes training time and simplifies daily use.

Robust and Space-Saving Design

• Footprint: Small footprint for space-constrained clinics

• Installation: Easy to install

• Radiography table: Removable table for easy patient positioning

• Split design: Split design of rack and table facilitates easy movement

The space-saving modular design allows flexible room configuration and easy system repositioning.

Superior Image Acquisition and Processing System

• Parameter control: kV/mA/ms/mAs preset

• APR program: Anatomical Programmed Radiography

• Species supported: Cat, dog, bird, fish, turtle, snake, and more

• Interface: Anatomic graphic user interface for various species

Species-specific APR settings ensure optimal exposure parameters for every patient type.

Advanced Clinical Functions

• Panoramic Stitching: Standard for long-length imaging

• VHS: Vertebral Heart Size measurement

• TTA: Tibial Tuberosity Advancement measurement

• TPLO: Tibial Plateau Leveling Osteotomy measurement

• HD: Hip Dysplasia measurement

Built-in orthopedic and cardiac measurement tools support surgical planning and objective diagnostic reporting.

Complete System Package

• Generator: 8kW high-frequency generator

• Detector: 17" × 17" self-developed CSI FPD

• Console: Integrated console with touchscreen

• Exposure control: Foot switch standard; optional wired/wireless hand switch
