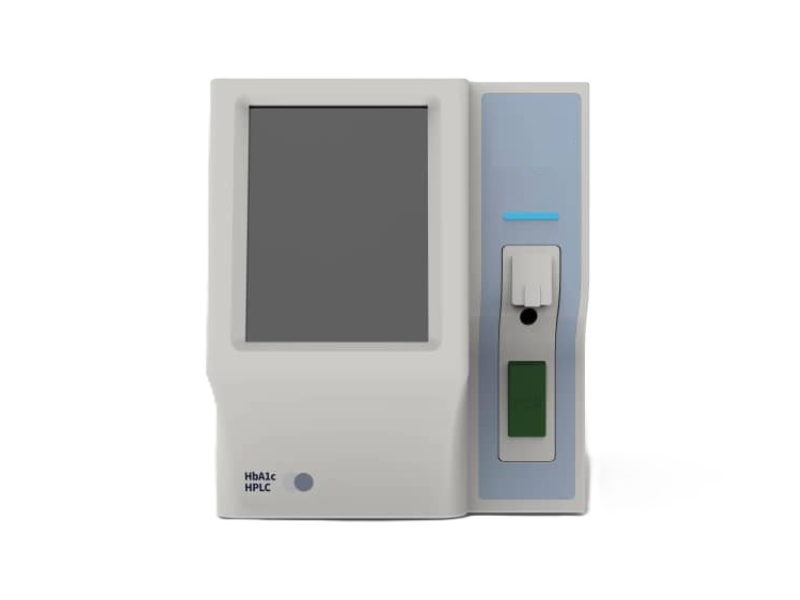

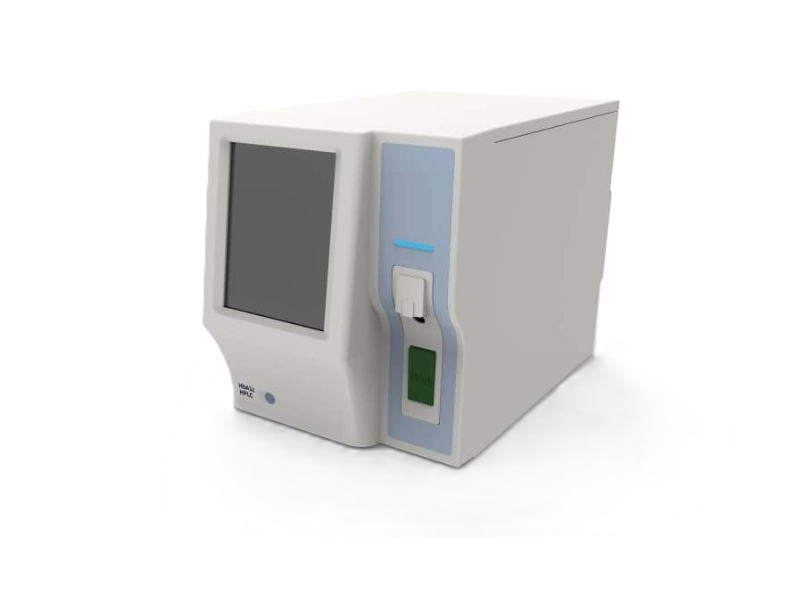

GHM3 HPLC HbA1c Analyzer

HbA1c testing cost of approximately $1.10 per test, with a capacity to perform 1,000 tests per column.

Features:
1. Ion-Exchange HPLC Technology: Employs the industry-standard ion-exchange HPLC technology for precise HbA1c quantification, meeting the stringent criteria for diabetes diagnosis and effectively eliminating interference from hemoglobin variants, including HbS, HbC, HbD, and HbE.
2. High-Pressure Dual-Piston Pump:Equipped with a tandem dual-piston high-pressure pump (operating between 3 MPa to 20 MPa) that optimizes ion-exchange efficiency and accelerates the testing workflow.
3. Direct Sample Processing: Facilitates immediate processing of blood samples upon receipt, yielding real-time results. Capillary blood samples can be tested directly without the need for pre-dilution.
4. Minimal Calibration & Quality Control: Requires calibration for the HbA1c test kit only once, with quality control checks necessary every 24 hours.
5. User-Friendly Interface: Features a 10.4-inch touchscreen display that streamlines the entire workflow from reagent preparation to results analysis.
6. Fast Detection: Provides results in under 2 minutes with a detection range of 3%-18% and exceptional repeatability with a coefficient of variation (CV) of ≤ 2%.
7. Compact and Convenient: The compact footprint (57.2 cm x 35.1 cm x 41.5 cm) and lightweight design (22 kg) make this analyzer suitable for small to medium-sized laboratories, capable of conducting up to 1,000 tests without interruption.
8. Connectivity: Compatible with LIS/HIS/RS232 for seamless integration with laboratory information systems.
9. Flexible Reagent Handling: Enables storage of reagents at ambient temperatures (2°C-30°C) for effortless handling, with low maintenance demands.
10. Printer Option: Includes the option for a printer kit that allows direct printing of test results.

Download the GHM3 HPLC HbA1c Analyzer Brochure here:
https://drive.google.com/file/d/13rOZviEgjN1ujjtVg7z0g3A7sVKnrRbG/view?usp=drive_link
