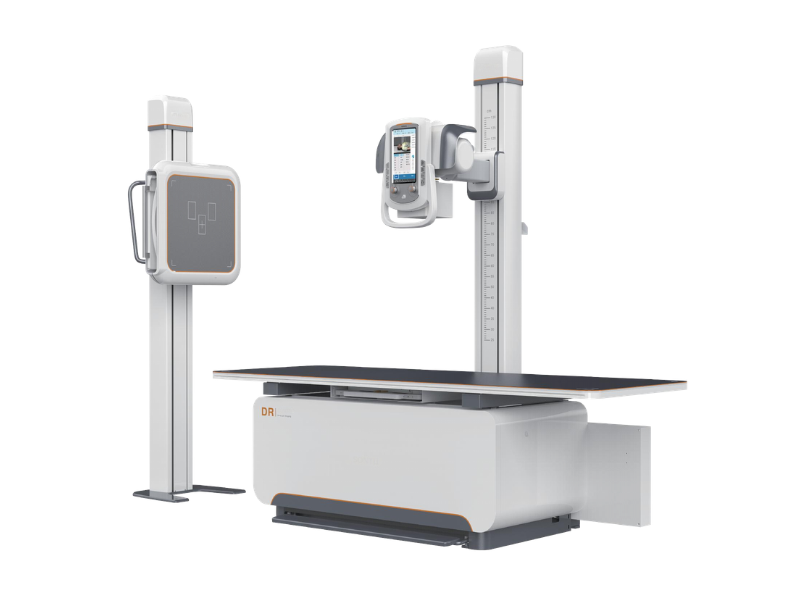

GHM300-Mars-O Motorized Floor-mounted DR #

Motorized Floor-Mounted DR System with Wireless Detector – Engineered for Human Radiography
The GHM300-Mars-O is a motorized floor-mounted digital radiography system designed for high-throughput human diagnostic imaging — featuring a wireless CsI flat panel detector, Toshiba X-ray tube, and an 80kW high-frequency generator for exceptional performance.

High-Power Generator for Superior Performance

• Generator model: GHM50-URF N80 high-voltage generator

• Power: Up to 80kW self-developed high-frequency generator

• Output: Exceptional X-ray output for demanding clinical applications

Delivers reliable, high-power imaging performance for a wide range of radiographic examinations, including bariatric and orthopedic studies.

Toshiba X-Ray Tube – Proven Reliability

• X-ray tube model: Toshiba E7252X

• Heat capacity: High-heat-capacity design for sustained workloads

• Brand: Trusted Toshiba imaging technology

Engineered for consistent, high-quality X-ray output in demanding clinical environments.

Wireless CsI Detector for Premium Image Quality & Workflow Freedom

• Detector model: GHM50-4343W-C (wireless)

• Detector size: 17" × 17" large-format wireless flat panel detector

• Scintillator: CsI (Cesium Iodide) for superior image quality

• Resolution: High-resolution and quality images

• AED function: Automatic Exposure Detection included as standard

The wireless CsI detector delivers exceptional image quality with cable-free convenience — enabling effortless positioning for table, upright, and off-table exams.

Professional Image Chain for High-Resolution Imaging

• Detector: 17" × 17" wireless flat panel detector

• X-ray tube: High-heat-capacity X-ray tube

• Generator: Self-developed high-frequency high-voltage generator (up to 80kW)

Provides a solid foundation ensuring high-resolution and quality images for confident diagnosis.

Precision Collimation for Optimal Beam Control

• Collimator model: INNOVA C20B

Provides precise X-ray beam control to minimize patient dose and improve image quality.

Motorized Floor-Mounted Radiography Frame

• Frame model: GHM50-J2B radiography frame

• Operation: Motorized operation system

• Intelligent height recognition function: Auto-synchronization of tube position

Motorized positioning reduces operator effort and ensures consistent, repeatable patient setup.

Intuitive User Interface

• Display: Large LCD touch screen interface

• Function: Radiographic exposure settings and immediate image preview

User-friendly touchscreen interface streamlines workflow and enhances operator efficiency.

Cutting-Edge Clinical Advanced Applications

• Panoramic Stitching: Standard for long-length imaging

• Virtual Dual-Energy Subtraction (VDES): Standard for enhanced tissue differentiation

• Bone Mineral Density Measurement: Optional upgrade

• AI Auxiliary Diagnostic System: Optional upgrade for intelligent workflow

Enables advanced imaging capabilities for orthopedic, spinal, and chest applications.

Fixed Grid for Scatter Reduction

• Grid specification: 10:1 ratio, 40 L/cm, 18" × 18"

Ensures cleaner images by minimizing scattered radiation.

Professional Digital Radiography Workstation

• Software: GHM DROC digital radiography system

• Computer: Dell desktop computer

Complete digital imaging workstation with intuitive controls and efficient workflow management.

Complete System Package

• AC power: 3-phase AC380V, 50/60Hz, EU plug

• Certification: IEC certified (CE certificate not currently available; FDA certification in process)

Ready-to-install complete system with all necessary components.

Important Note
For human use only — This system is designed for human diagnostic radiography.
