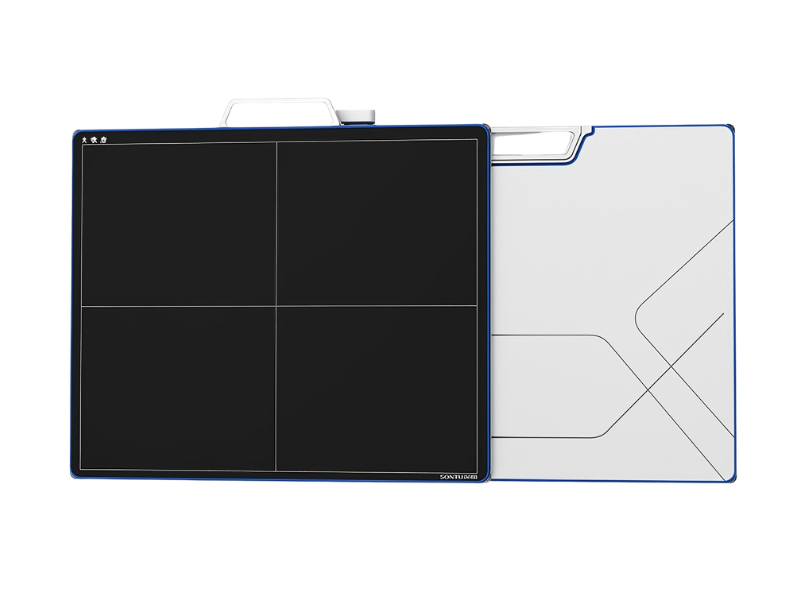

GHM50-4336S-C Flat Panel Detector

Premium Wired Flat Panel Detector with CsI Scintillator – Engineered for Human Radiography
The GHM-4336S-C is a high-sensitivity wired flat panel detector featuring a cesium iodide (CsI) scintillator for superior image quality — designed for human diagnostic radiography in hospitals and imaging centers requiring the highest level of detail.

Superior Image Quality with CsI Scintillator

• Scintillator: CsI (Cesium Iodide) – optimized for exceptional X-ray absorption and light output

• Pixel pitch: 140μm for high spatial resolution

• Sensitivity: High sensitivity captures fine anatomical details

• Spatial resolution: Excellent resolution for confident diagnosis

The CsI scintillator delivers superior image quality with higher contrast and lower noise compared to standard scintillators — ideal for demanding radiographic applications.

Automatic Exposure Detection (AED) – Simplified Workflow

• AED function: Standard built-in automatic exposure detection

Eliminates the need for a separate exposure synchronizer cable — simplifies workflow and reduces setup time.

Cutting-Edge Clinical Advanced Applications (Standard)

• Panoramic Image Stitching: Standard feature for long-length imaging

• Virtual Dual-Energy Subtraction (VDES): Standard feature for enhanced tissue differentiation

Enables advanced applications without additional software costs — ideal for orthopedic, spinal, and chest imaging.

Expandable Clinical Capabilities (Optional)

• Bone Mineral Density Measurement: Optional upgrade

• AI Auxiliary Diagnostic System: Optional upgrade for intelligent workflow

Future-ready design allows system expansion as clinical needs grow.

Stable Performance in Challenging Environments

• Protection rating: IP54 dust resistance and waterproofing

• Environmental compatibility: Strong performance across varied clinical environments

• Independent IP: Self-developed FPD with independent intellectual property rights and multiple patents

Built to withstand the demands of busy radiology departments.

Ergonomic Design for Daily Use

• Status indicators: LED indicators for clear system status

• Handles: Concealed handles design for comfortable, secure gripping

• Dose optimization: Lower dose design, safer for human body

Thoughtful design features enhance user experience and patient safety.

Technical Specifications

• Active area: 14" × 17" (inch) / 35cm × 43cm

• Scintillator: CsI (Cesium Iodide)

• Wired connection: Reliable wired data transmission

• Brand: Global Healthcare Medical

• Certificate: CE certified

Important Note

For human use only — This detector is designed and certified for human diagnostic radiography.
