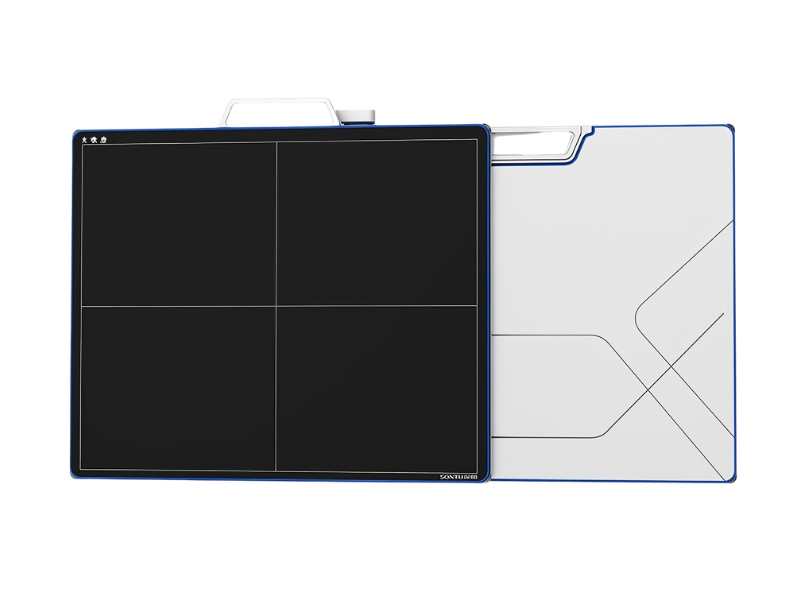

GHM50-4336S-G Flat Panel Detector #

High-Performance Wired Flat Panel Detector – Engineered for Human Radiography
The GHM50-4336S-G is a high-sensitivity wired flat panel detector designed for human diagnostic radiography — featuring a 14"x17" active area, GOS scintillator, and advanced clinical applications including AED, VDES, and image stitching.

Superior Image Quality for Confident Diagnosis

• Pixel pitch: 140μm for high spatial resolution

• Scintillator: GOS (Gadolinium Oxysulfide)

• Sensitivity: High sensitivity for excellent image quality

• Spatial resolution: High resolution captures fine anatomical details

Delivers clear, high-contrast images with excellent detail for accurate diagnosis.

Automatic Exposure Detection (AED) – Simplified Workflow

• AED function: Standard built-in automatic exposure detection

Eliminates the need for a separate exposure synchronizer cable — simplifies workflow and reduces setup time.

Cutting-Edge Clinical Advanced Applications (Standard)

• Panoramic Image Stitching: Standard feature for long-length imaging

• Virtual Dual-Energy Subtraction (VDES): Standard feature for enhanced tissue differentiation

Enables advanced applications without additional software costs — ideal for orthopedic, spinal, and chest imaging.

Expandable Clinical Capabilities (Optional)

• Bone Mineral Density Measurement: Optional upgrade

• AI Auxiliary Diagnostic System: Optional upgrade for intelligent workflow

Future-ready design allows system expansion as clinical needs grow.

Stable Performance in Challenging Environments

• Protection rating: IP54 dust resistance and waterproofing

• Environmental compatibility: Strong performance across varied clinical environments

• Independent IP: Self-developed FPD with independent intellectual property and multiple patents

Built to withstand the demands of busy radiology departments.

Ergonomic Design for Daily Use

• Status indicators: LED indicators for clear system status

• Handles: Concealed handles design for comfortable, secure gripping

• Dose optimization: Lower dose design, safer for human body

Thoughtful design features enhance user experience and patient safety.

Technical Specifications

• Active area: 14" × 17" (inch) / 35cm × 43cm

• Scintillator: GOS

• Wired connection: Reliable wired data transmission

• Brand: Global Healthcare Medical

• Certificate: CE certified

For human use only — This detector is designed and certified for human diagnostic radiography.
