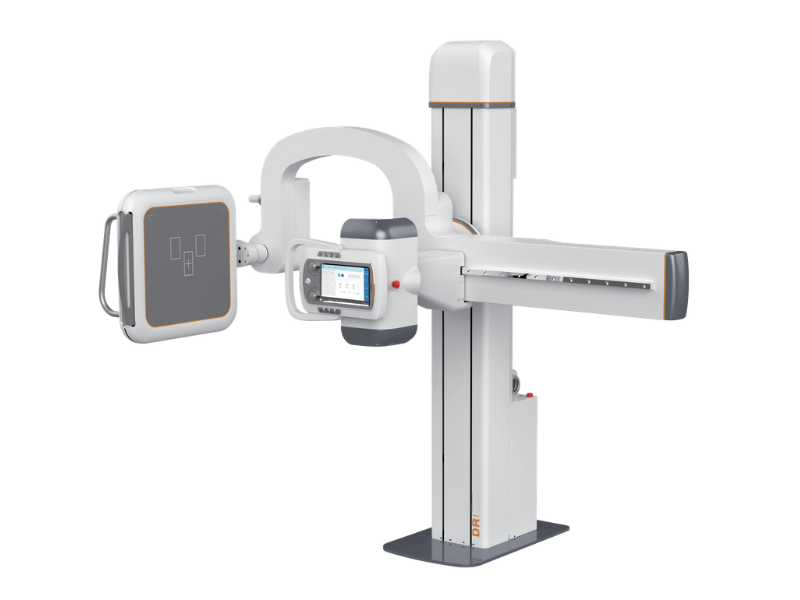

GHM500-Sirius UC-arm Fluoroscopy DR

Versatile UC-Arm Fluoroscopy DR System – Engineered for Human Use
The GHM500-Sirius UC is a digital fluoroscopy and radiography system featuring GHM's self-developed UC-arm mechanical structure — enabling swift switching between real-time fluoroscopy and radiography imaging in only 0.1 seconds.

Ultra-Fast Mode Switching for Efficient Workflow

• Switching speed: Swift switching between real-time fluoroscopy and radiography in only 0.1 seconds

• Versatility: Integrated system for both dynamic and static imaging

Seamless transition between modalities eliminates patient repositioning and reduces exam time.

Self-Developed UC-Arm Mechanical Structure for Flexible Positioning

• Column swivel range: -30° to +120°

• Detector rotation range: -45° to +45°

Comprehensive range of motion accommodates a wide variety of clinical procedures and patient positions.

Large Dynamic Detector for Premium Image Quality

• Detector model: GHM50-4343D-I (dynamic)

• Detector size: 17" × 17" large dynamic detector

• Image quality: Optimal image quality in both dynamic and static imaging

The large-format dynamic detector delivers exceptional image quality for both fluoroscopy and radiography.

Toshiba X-Ray Tube – Proven Reliability

• X-ray tube model: Toshiba E7252X

• Brand: Trusted Toshiba imaging technology

Engineered for consistent, high-quality X-ray output in demanding clinical environments.

High-Voltage Generator for Stable Performance

• Generator model: GHM50-URF high-voltage generator

• Design: Self-developed high-frequency technology

Delivers stable, consistent X-ray output for both fluoroscopic and radiographic examinations.

Extended SID Range for Flexible Imaging

• SID range: 1m – 1.8m (adjustable with single touch)

• Function: Allows imaging of either a broad area or specific regions comprehensively

Touch-screen controlled SID adjustment enables optimal source-to-image distance for every exam type.

Transport Bed for Patient Convenience

• Bed model: GHM50-MT transport bed

• Design: Motorized transport for easy patient positioning

Facilitates efficient patient throughput and comfortable positioning.

Precision Collimation for Optimal Beam Control

• Collimator model: INNOVA C20

Provides precise X-ray beam control to minimize patient dose and improve image quality.

Large LCD Touch-Screen for Intuitive Operation

• Display: Large LCD touch-screen interface

• APR function: Anatomy Programmed Radiography enhances workflow efficiency

• Smart display: Touch-screen automatically switches between landscape and portrait modes for horizontal view

User-friendly interface streamlines exam setup and reduces operator learning curve.

Complete System Package

• AC power: 3-phase AC380V, 50/60Hz, EU plug

• Radiography frame: GHM50-J2UC

• Certification: CE certificate not currently available
