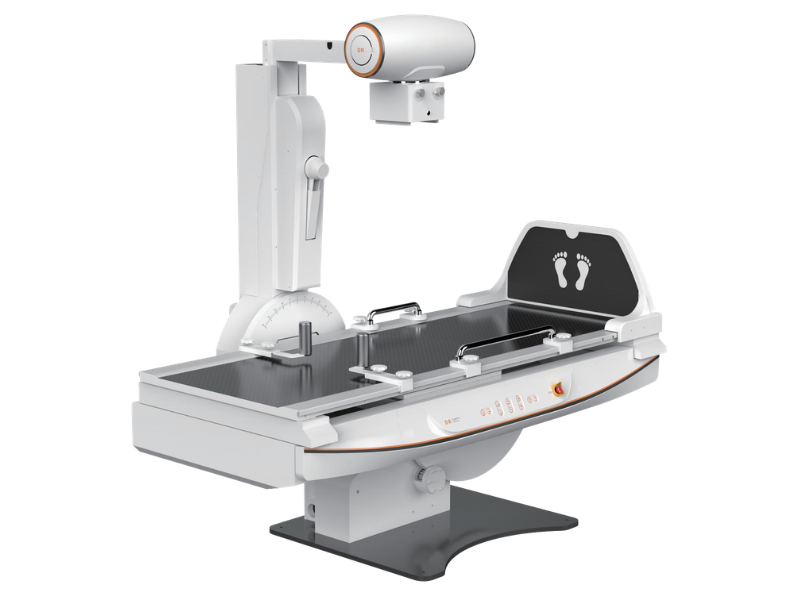

GHM530-Sirius Fluoroscopy DR #

All-in-One Fluoroscopy & Digital Radiography System – Engineered for Human Use
The GHM530-Sirius is a fluoroscopy digital radiography system featuring GHM's self-developed large dynamic detector — integrating digital radiography, fluoroscopy, and digital contrast imaging into one versatile system to meet higher clinical application demands.

All-in-One System for Wide Clinical Applications

• Modalities: Digital radiography, fluoroscopy, and digital contrast all-in-one

• Applications: Applicable for full-body radiography and fluoroscopy examinations

• Patient range: Delivers high-resolution, low-dose images for all types of patients

Eliminates the need for separate systems — one platform for both static and dynamic imaging.

Large Dynamic Detector for Premium Image Quality

• Detector model: GHM50-4343D-I (dynamic)

• Detector size: 17" × 17" large dynamic detector without splicing

• Image quality: Optimal image quality in both dynamic and static imaging

The seamless large-format dynamic detector delivers exceptional image quality for both fluoroscopy and radiography — no image stitching required.

Toshiba X-Ray Tube – Proven Reliability

• X-ray tube model: Toshiba E7252X

• Brand: Trusted Toshiba imaging technology

Engineered for consistent, high-quality X-ray output in demanding clinical environments.

High-Voltage Generator for Stable Performance

• Generator model: GHM50-URF high-voltage generator

• Design: Self-developed high-frequency technology

Delivers stable, consistent X-ray output for both fluoroscopic and radiographic examinations.

Superior Mechanical Design for Flexible Positioning

• Tube column rotation: -45° to +45° rotation covers a large detection area

• SID capability: Extensive SID capability up to 1.8m for flexible examinations

• Radiography bed rotation: -15° to +90° rotation for more flexible radiographic positioning

Comprehensive mechanical flexibility accommodates a wide range of clinical procedures and patient types.

Integrated Console for Efficient Operation

• Console: Global Healthcare Medical integrated console with intuitive surface design

• Remote control: Available for remote operation

• Functions: Rack control, generator exposure, all table movements

• Efficiency: More efficient examination operation

Centralized control streamlines workflow and reduces operator fatigue.

Professional Digital Workstation

• Computer: Dell desktop computer

• Brand: Global Healthcare Medical

Complete digital imaging workstation for efficient image acquisition, processing, and archiving.

Complete System Package

• AC power: 3-phase AC380V, 50/60Hz, EU plug

• Certification: CE certificate not currently available
