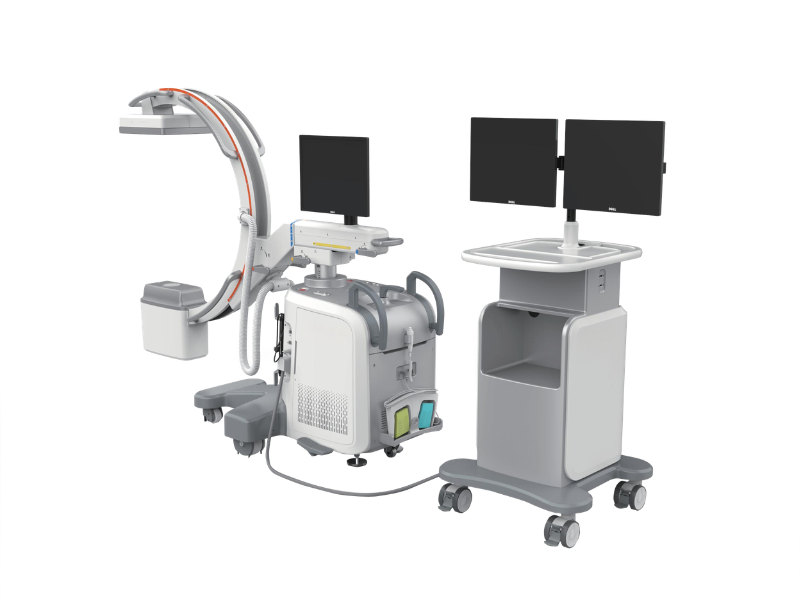

GHM600-Saturn-A Mobile C-arm System

Advanced Mobile C-Arm for Orthopedic Surgery – Engineered for Human Use
The GHM600-Saturn-A is a mobile C-arm system specifically designed for orthopedic surgeries — featuring smooth maneuverability, advanced flat-panel technology, and pulsed exposure capability to bring precision and safety to your surgical procedures.

Advanced Imaging Chain for High-Quality Images

• Detector: Mercu0909F flat panel detector (9" × 9" a-Si)

• X-ray tube: Small double focal spot (0.3mm/0.6mm) with rotating anode

• Generator: Gemini5 high-voltage generator (5kW) with pulsed exposure technology

• Power backup: 30 minutes uninterrupted power supply

• Image processing: Comprehensive real-time image processing capabilities

Delivers high-resolution, low-dose images for confident surgical decision-making.

Rotating Anode X-Ray Tube for Enhanced Thermal Capacity

• Focal spots: Small double focal spot 0.3mm/0.6mm

• Anode type: Rotating anode tube

The rotating anode design provides higher thermal capacity for sustained fluoroscopic procedures.

Pulsed Exposure Technology for Dose Optimization

• Technology: Pulsed exposure integrated with generator

• Benefit: Optimized radiation dose for patient safety

Reduces radiation exposure while maintaining diagnostic image quality.

Precision Collimation for Optimal Beam Control

• Collimator model: Crux603i

Provides precise X-ray beam control to minimize patient dose and improve image quality.

Excellent Maneuverability for Surgical Access

• Axial rotation: ≥180°

• Wig/wag movement: ≥±18.5°

• Horizontal movement: ≥200mm

• Orbital rotation: ≥140°

• Vertical movement: ≥400mm

Comprehensive range of motion provides optimal surgical access from any approach.

User-Friendly Design for Operating Room Efficiency

• Laser positioning: Integrated for precise patient alignment

• Real-time DAP display: Dose monitoring during procedures

• One-button power on/off: Simplified system startup and shutdown

• APR functions: Anatomy Programmed Radiography for workflow efficiency

• Dual foot switch: Separate controls for fluoroscopy and radiography

Thoughtful design features enhance surgical workflow and reduce operator fatigue.

Mobile Workstation for Flexible OR Placement

• Workstation model: CM-1000C mobile workstation

• C-arm model: CM-600A

Complete mobile system with integrated workstation for efficient OR setup.

Universal Power Supply for Global Compatibility

• AC power range: 110–240V, 50/60Hz

• Plug type: EU plug

Operates on standard wall outlets worldwide — no special electrical installation required.
