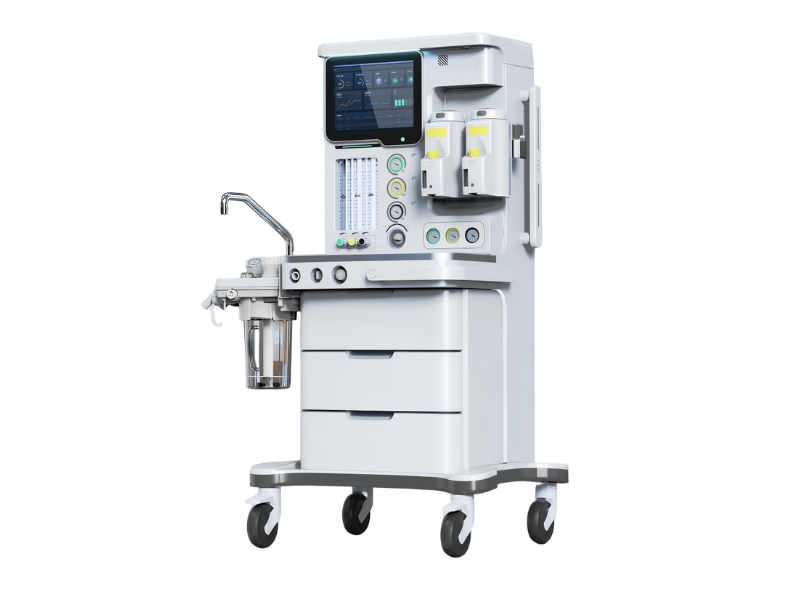

GHM834 Anesthesia Machine Upgraded Version #

The upgraded GHM834 Anesthesia Machine sets a new standard for precision, usability, and flexibility in anesthesia delivery. Featuring a large intuitive touchscreen, a comprehensive three-gas source configuration, and advanced monitoring capabilities, this system is designed to meet the demands of modern clinical environments.

Key Features:

• Large 12-Inch Color LCD Touchscreen
  Built-in 12-inch color LCD touchscreen with multilingual support offers intuitive operation, clear visualization, and streamlined workflow management.

• Three-Gas Source Standard Configuration
  Equipped as standard with oxygen (O₂), nitrous oxide (N₂O), and air (AIR) gas sources, providing maximum flexibility for a wide range of anesthesia protocols.

• Precision Flow Meter
  6-tube flow meter with O₂ and AIR ranges of 0–15 L/min and N₂O range of 0–12 L/min, ensuring accurate gas delivery and control.

• Wide Parameter Setting Ranges

  • Tidal Volume: 20–1500 mL

  • PEEP: OFF, 3–30 cmH₂O

  • Respiratory Rate (f): 4–100 bpm

  • Flow Trigger: 0.2–15 L/min

  • Pressure Trigger: –20 to –1 cmH₂O

• Comprehensive Monitoring Capabilities
  Real-time monitoring of tidal volume (0–3000 mL), PEEP (0–70 cmH₂O), and respiratory rate (0–120 bpm) for complete patient status visibility.

• Advanced Waveform & Loop Display
  Simultaneous display of any three waveforms and two loops on the same screen, enabling intuitive assessment of patient-ventilator interaction and respiratory mechanics.

• Extensive Optional Functions
  Customize the machine to meet specific clinical needs with optional modules:

  • EtCO₂ module for end-tidal carbon dioxide monitoring

  • SpO₂ module for oxygen saturation monitoring

  • Paramagnetic oxygen sensor for precise oxygen measurement

  • Anesthesia Gas Scavenging System (AGSS) for safe removal of excess anesthetic gases

• User-Friendly Design
  Built with a human-centered approach, the GHM834 combines comfort, safety, and ease of operation, making it suitable for both experienced clinicians and new users.

• Designed for Reliability
  Engineered to deliver consistent, high-quality anesthesia support across diverse clinical settings, from routine procedures to complex surgical cases.
