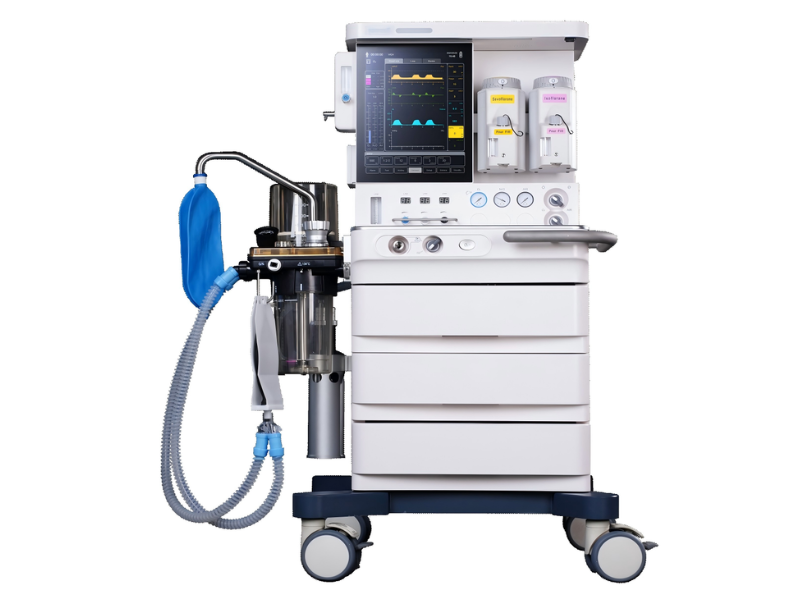

GHM852 Anesthesia Machine Upgraded Version #

The upgraded GHM852 Anesthesia Machine delivers cutting-edge performance with a spacious touchscreen interface, advanced ventilation modes, and comprehensive safety features. Designed to meet the most demanding clinical requirements, this system offers exceptional flexibility and precision for anesthesia delivery across all patient populations.

Key Features:

• 15-Inch Color LCD Touchscreen
  Large 15-inch color LCD built-in touchscreen with multilingual support provides an intuitive user interface, enabling easy navigation and clear visualization of critical patient data.

• Three-Gas Source Standard Configuration
  Standard configuration includes oxygen (O₂), nitrous oxide (N₂O), and air (AIR) gas sources, ensuring maximum flexibility for diverse anesthesia protocols.

• Advanced Ventilation Modes
  Comprehensive range of ventilation modes to suit various clinical scenarios:

  • VCV (Volume-Controlled Ventilation)

  • PCV (Pressure-Controlled Ventilation)

  • PCV-VG (Pressure-Controlled Ventilation – Volume Guaranteed)

  • SIMV-VC (Synchronized Intermittent Mandatory Ventilation – Volume Control)

  • SIMV-PC (Synchronized Intermittent Mandatory Ventilation – Pressure Control)

  • SIMV-VG (Synchronized Intermittent Mandatory Ventilation – Volume Guaranteed)

  • PSV (Pressure Support Ventilation)

  • MAN (Manual Ventilation)

• Standard Extracorporeal Circulation (ECC) Function
  Integrated ECC function supports cardiopulmonary bypass procedures, expanding the machine's utility in complex cardiac surgeries.

• Recruitment Maneuver (RM)
  Built-in Recruitment Maneuver function helps optimize lung volume and improve oxygenation, supporting lung-protective ventilation strategies.

• Cardiopulmonary Bypass Mode
  Dedicated cardiopulmonary bypass mode ensures seamless integration with bypass procedures, enhancing workflow during cardiac surgeries.

• Precision Gas Delivery

  • O₂ Flush: 35–50 L/min for rapid oxygen delivery

  • Flow Rate Trigger: 0.2–15.0 L/min

  • Pressure Trigger: –20 to –1 cmH₂O

• Wide Parameter Setting Ranges

  • Tidal Volume: 15–1500 mL

  • Respiratory Rate: 4–100 bpm

  • I:E Ratio: 8:1 – 1:10

  • Trigger Window: 5%–90%

  • Pressure Limit: 10–100 cmH₂O

  • PEEP: OFF, 3–30 cmH₂O

• Comprehensive Monitoring Parameters
  Real-time monitoring of:

  • Tidal Volume (0–3000 mL)

  • Respiratory Rate (0–120 bpm)

  • I:E Ratio (10:1 – 1:10)

  • Oxygen Concentration (18%–100%)

  • Airway Pressure (–20 to 120 cmH₂O)

  • PEEP (0–70 cmH₂O)

• Advanced Waveform & Loop Display
  Simultaneous display of any three waveforms and two loops on the same screen, enabling comprehensive assessment of patient-ventilator interaction and respiratory mechanics.

• Extensive Optional Functions
  Customize the machine to meet specific clinical needs with optional modules:

  • EtCO₂ module for end-tidal carbon dioxide monitoring

  • MAC module for minimum alveolar concentration monitoring

  • SpO₂ module for oxygen saturation monitoring

  • Paramagnetic oxygen sensor for precise oxygen measurement

  • AGSS (Anesthesia Gas Scavenging System)

  • Negative pressure suction module

  • PSI (Pressure Support Indicator)

• Designed for Versatility & Safety
  Suitable for adults, children, and infants, the GHM852 combines powerful ventilatory function with a human-centered design to deliver safe, reliable anesthesia support across a wide range of clinical environments.
