Global Healthcare Medical 3-in-1 Palm Doppler Ultrasound Scanner
Global Healthcare Medical 3-in-1 Palm Doppler Ultrasound Scanner
Model: GHM 7CPL HK

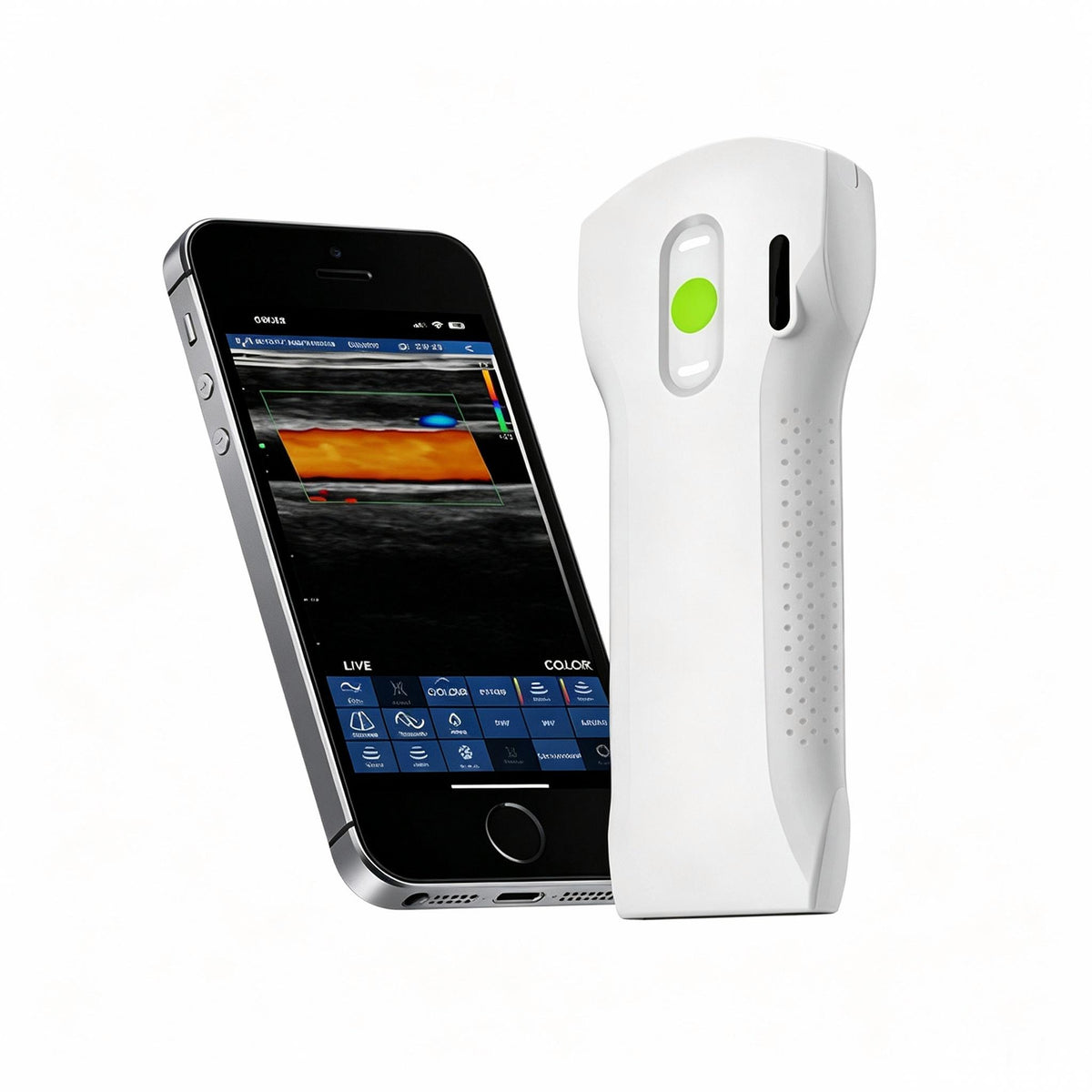

The Global Healthcare Medical 3-in-1 Palm Doppler Ultrasound Scanner is a compact, wireless handheld diagnostic imaging system that integrates three distinct scanning modes—convex, linear, and phased array—into a single, pocket-sized probe. Weighing just 230g and measuring 156mm × 60mm × 20mm, this device puts comprehensive ultrasound capabilities directly in the palm of your hand.
Designed for healthcare professionals who need versatile imaging at the point of care—from emergency departments and critical care units to vascular access clinics, musculoskeletal practices, and remote field settings—this scanner eliminates the need for multiple probes or bulky cart-based systems. The convex array can also be switched to phased array mode via software, enabling basic cardiac assessments without changing hardware.
The system operates wirelessly via WiFi (802.11g / 20MHz / 5G / 450Mbps) , transmitting real-time images to your smartphone, tablet, or PC. Compatible with Apple iOS, Android, and Windows devices, it eliminates the need for bulky consoles and tangled cables, giving clinicians complete freedom of movement during examinations.
Key Features & Benefits
True 3-in-1 Design – Convex, Linear & Phased Array in One Probe
Unlike single-probe systems that require you to switch transducers for different applications, this device features an integrated 3-in-1 design combining convex, linear, and phased array capabilities in a single unit. A simple button press allows seamless switching between transducers, and the convex head can be further switched to phased array mode via software—enabling basic cardiac assessments without additional hardware.
| Probe Mode | Primary Applications |
|---|---|
| Convex Array | Abdominal, obstetric, gynecological, and deep tissue imaging |
| Linear Array | Musculoskeletal, vascular, small parts, and superficial structure imaging |
| Phased Array | Cardiac and deep abdominal imaging |
Exceptional Imaging Performance
The system delivers high-quality imaging across a broad range of clinical applications:
| Specification | Detail |
|---|---|
| Scanning Mode | Electronic Array Convex & Linear scanning |
| Elements | 192 piezoelectric elements |
| Channels | 32 channels |
| Frequency (Convex/Phased Array) | 3.2 MHz / 5.0 MHz |
| Frequency (Linear) | 7.5 MHz / 10.0 MHz |
| Display Depth (Convex) | 90 / 160 / 220 / 305 mm (adjustable) |
| Display Depth (Linear) | 20 / 40 / 60 / 80 mm (adjustable) |
| Scan Angle (Convex) | 60° |
| Scan Angle (Phased Array) | 80° |
| Scan Width (Linear) | 40mm |
| Image Frame Rate | 18 frames/second |

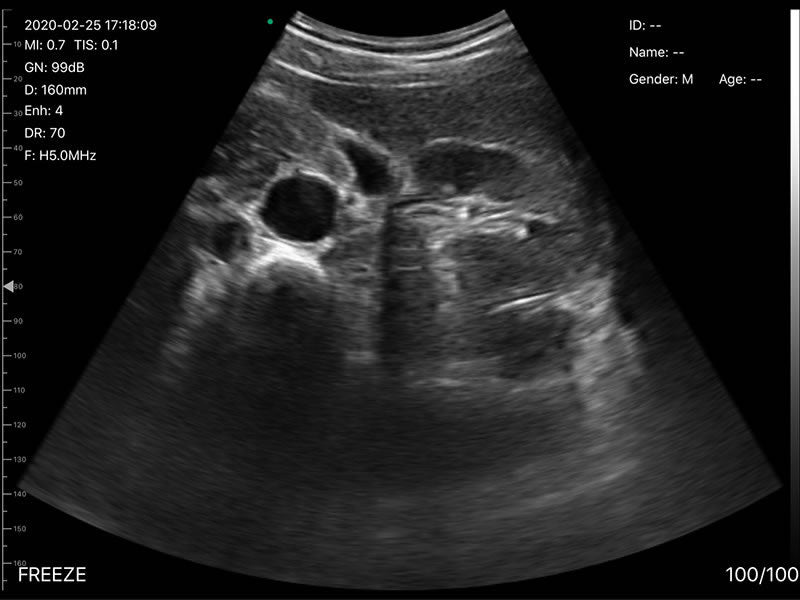

Imaging modes supported:
-
B‑Mode – fundamental 2D imaging with 256-level gray scale
-
B/M Mode – combined anatomical and motion imaging
-
Color Doppler – real-time blood flow visualization
-
Power Doppler Imaging (PDI) – sensitive low-flow detection
-
Pulsed Wave Doppler (PW) – quantitative blood flow velocity assessment
Image adjustments include Gain (30–105 dB), Dynamic Range (40–110), Focus, Depth, Harmonic imaging, and Denoise (0–4 levels).
Smartphone-Powered Convenience
The system connects wirelessly to a mobile device or PC running the companion software application. This smartphone-powered approach offers:
-
Intuitive touchscreen interface – familiar and easy to learn
-
No separate display or console – reduces equipment costs and footprint
-
Wireless operation – eliminates cable tangles and improves workflow
-
Image/video storage – save in jpg, MP4, PNG, and DCM formats directly to your mobile phone or tablet
-
Broad compatibility – works with Apple iOS, Android, and Windows devices
-
WiFi type – 802.11g / 20MHz / 5G / 450Mbps for fast, stable transmission
Extended Battery Life with Wireless Charging
The system features a built-in 2800mAh lithium battery providing approximately 3 hours of continuous working time. With wireless charging, working time can be extended indefinitely—simply place the probe on a compatible charger between scans. A full charge takes approximately 2 hours.
Puncture Assistance for Guided Procedures
The system includes a comprehensive suite of puncture assistance tools, making it a practical tool for ultrasound-guided interventions:
-
In-plane puncture guide line – for precise needle alignment within the scan plane
-
Out-of-plane puncture guide line – with automatic blood vessel measurement function
-
Needle point enhancement – improved visualization of the needle tip for accurate guidance
-
Automatic vascular measurement – supports pre-procedure vessel assessment
Comprehensive Measurement and Review Tools
-
Measurements – Length, Area, Angle, and Obstetrics calculations
-
Cineplay – manual and automatic playback with adjustable frame settings (100 / 200 / 500 / 1000)
-
Image gray scale – 256 levels for detailed tissue differentiation
-
Image frame rate – 18 frames/second for smooth, real-time visualization
Comprehensive Clinical Applications
This versatile 3-in-1 scanner supports a wide range of diagnostic applications across multiple specialties:
| Specialty | Applications |
|---|---|
| Emergency Medicine | FAST exams, bedside diagnostics, trauma assessment |
| Critical Care | ICU patient evaluation, fluid status assessment |
| Cardiology | Basic cardiac assessment (via phased array mode) |
| Obstetrics | Fetal biometry, gestational age assessment, pregnancy confirmation |
| Gynecology | Uterine and ovarian evaluation |
| Abdominal | Liver, gallbladder, pancreas, spleen, kidney evaluation |
| Urology | Renal, bladder, and prostate examinations |
| Musculoskeletal | Tendon, ligament, joint, and muscle assessment |
| Vascular | Peripheral vascular assessment, blood flow detection, vein mapping |
| Small Parts | Thyroid, breast, and superficial structure imaging |
| Anesthesiology | Nerve block guidance, vascular access |
| Pain Management | Injection guidance |
| Pediatrics | Neonatal and pediatric imaging |
Technical Specifications
| Specification | Detail |
|---|---|
| Scan Mode | Electronic Array, Electronic Convex & Linear array scanning |
| Frequency | Convex/Phased array: 3.2 MHz / 5.0 MHz; Linear: 7.5 MHz / 10.0 MHz |
| Elements | 192 |
| Channels | 32 |
| Display Depth | Convex: 90 / 160 / 220 / 305 mm; Linear: 20 / 40 / 60 / 80 mm (adjustable) |
| Scan Angle / Width | Convex: 60°; Phased array: 80°; Linear: 40mm |
| Display Mode | B, B/M, Color, PDI, PW |
| Image Adjustment | Gain, DYN, Focus, Depth, Harmonic, Denoise |
| Puncture Assist Function | In-plane puncture guide line, out-of-plane puncture guide line, automatic vascular measurement, needle point enhancement |
| Image Gray Scale | 256 levels |
| Noise Reduction | 0 – 1 – 2 – 3 – 4 |
| Gain | 30 dB – 105 dB |
| Dynamic Range | 40 / 50 / 60 / 70 / 80 / 90 / 100 / 110 |
| Image Frame Rate | 18 frames/second |
| Image/Video Storage | jpg, MP4, PNG, DCM; store on mobile phones or tablet PCs |
| Measurements | Distance, Area, Angle, Obstetrics |
| Battery | Built-in lithium battery, 2800mAh |
| Battery Working Time | 3 hours |
| Charging | Wireless charger; fully charges in 2 hours |
| Cineplay | Manual and automatic; playback frames 100 / 200 / 500 / 1000 |
| WiFi Type | 802.11g / 20MHz / 5G / 450Mbps |
| Working System | Apple iOS, Android, Windows |
| Size | 156mm × 60mm × 20mm |
| Net Weight | 230g |
Why Choose Global Healthcare Medical?
| Consideration | Our 3-in-1 Wireless Ultrasound Scanner |
|---|---|
| Need for multiple probe types in one device | True 3-in-1 design combines convex, linear, and phased array capabilities |
| Portable, point-of-care imaging | Palm-sized, 230g design goes wherever you go |
| No bulky equipment | Wireless—no console, no cables; use your existing iOS, Android, or Windows device |
| Extended scanning sessions | 2800mAh battery with wireless charging for continuous operation |
| Procedure guidance | In-plane/out-of-plane puncture guides and automatic vascular measurement |
| Quick, confident diagnosis | 5 imaging modes with adjustable depth and gain settings |
| Cost-effective solution | Professional imaging at a fraction of traditional system costs |
| Clinical versatility | Suitable for emergency, critical care, abdominal, cardiac, OB/GYN, MSK, and vascular applications |
