Global Healthcare Medical 3-in-1 Wireless Handheld Ultrasound System
Global Healthcare Medical 3-in-1 Wireless Handheld Ultrasound System
Model: GHM CProbe-CLP6 HK
The Global Healthcare Medical 3-in-1 Wireless Handheld Ultrasound System is a pocket-sized diagnostic imaging solution that brings hospital-grade ultrasound capabilities directly to the point of care. Designed for healthcare professionals who need reliable imaging wherever patients are—from emergency departments and critical care units to remote clinics, ambulatory services, and bedside rounds—this wireless probe-type system delivers exceptional versatility in a lightweight, portable form factor.
Weighing just 250g (0.6 lbs) and measuring 156mm × 60mm × 20mm (6.1″ × 2.4″ × 0.8″), this device fits comfortably in your hand or pocket, making it the ideal companion for daily POCUS (Point-of-Care Ultrasound) and ultrasound-guided procedures. The system operates wirelessly via WiFi, transmitting real-time images directly to a smartphone or tablet—eliminating the need for bulky consoles or tangled cables.
FDA 510(k) cleared and CE marked for clinical use, this system is indicated for a wide range of diagnostic applications including abdominal, cardiac, obstetric/gynecological, urological, and peripheral vascular imaging.
Key Features & Benefits
True 3-in-1 Wireless Design for Maximum Versatility
Unlike single-probe systems that require you to switch transducers for different applications, this device features an integrated 3-in-1 design combining convex (curvilinear), linear, and phased array probes in a single unit. This means you can seamlessly transition between deep abdominal scanning, superficial musculoskeletal imaging, and cardiac assessments without changing probes—saving valuable time during examinations.
Exceptional Imaging Performance
The system delivers high-quality imaging across a broad range of clinical applications:
| Probe Type | Frequencies | Scan Depth | Applications |
|---|---|---|---|
| Convex (Curvilinear) Probe | 3.5 MHz / 5.0 MHz | 90/160/220/305mm | Abdominal, obstetric, gynecological, urological, and deep tissue imaging |
| Linear Probe | 7.5 MHz / 10.0 MHz | 20/40/60/100mm | Musculoskeletal, vascular, small parts, and superficial structure imaging |
| Phased Array Probe | 3.2 MHz / 5.0 MHz | — | Cardiac and deep abdominal imaging |
-
B‑Mode – fundamental 2D imaging
-
B/M Mode – combined anatomical and motion imaging
-
Color Doppler – real-time blood flow visualization
-
PW Doppler – quantitative blood flow assessment
-
PDI – sensitive low-flow detection

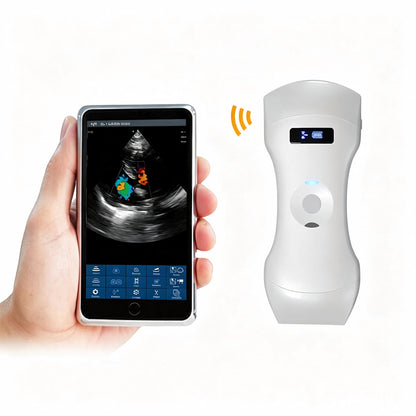

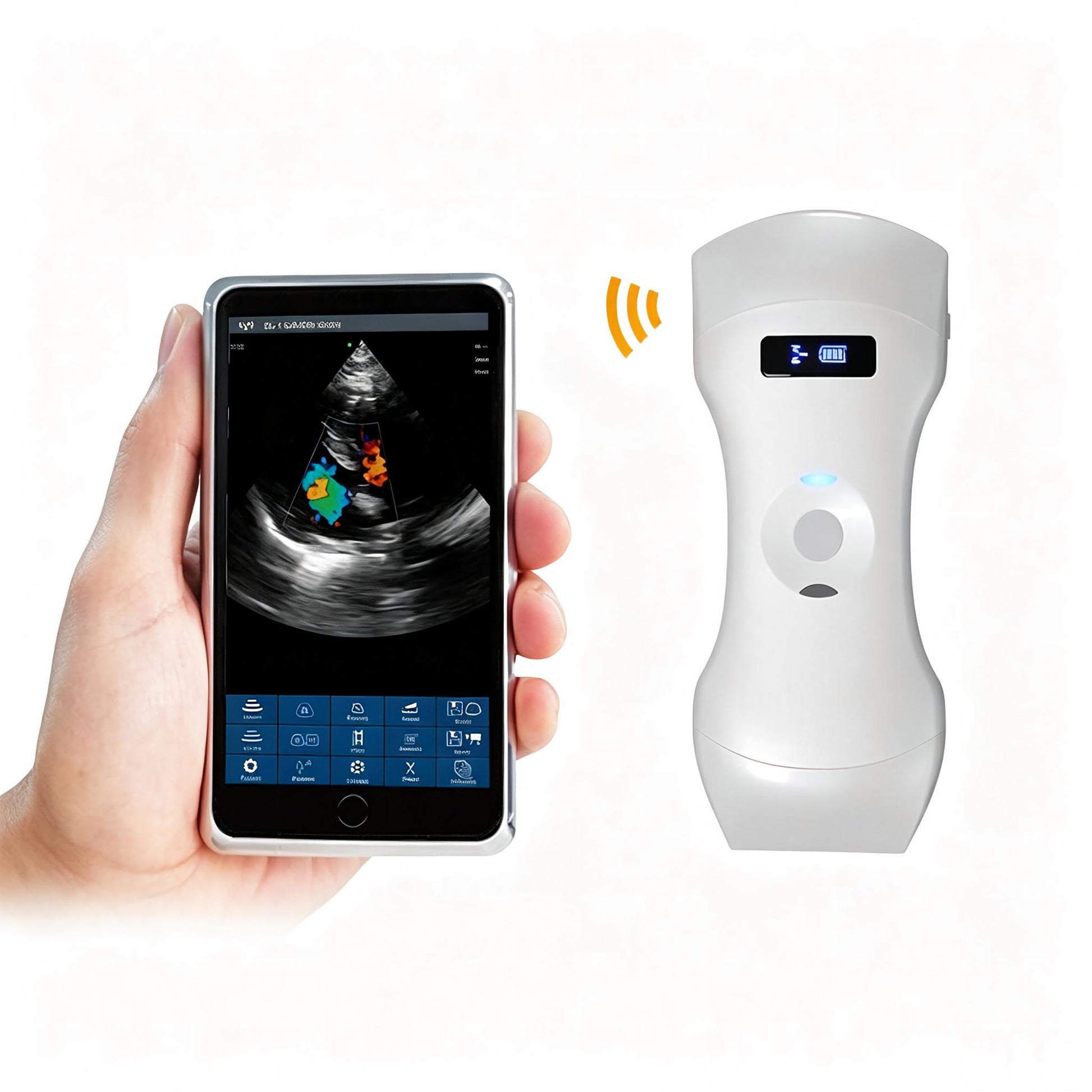

Smartphone-Powered Convenience
The system connects wirelessly to a mobile device running the companion software application. This smartphone-powered approach offers:
-
Intuitive touchscreen interface – familiar and easy to learn
-
No separate display or console – reduces equipment costs and footprint
-
Wireless operation – eliminates cable tangles and improves workflow
-
Image storage and sharing – easily save, review, and share images in jpg, avi, and DICOM formats
Advanced Imaging Features
-
192 probe elements and 64 RF circuit board channels for exceptional image clarity
-
18 frames/second image frame rate for smooth, real-time visualization
-
Cineplay – automatic and manual playback with adjustable frame settings (100/200/500/1000 frames)
-
Puncture assistance function – in-plane and out-of-plane puncture guide lines, automatic blood vessel measurement
-
Image adjustments – BGain, TGC, DYN, Focus, Depth, Harmonic, Denoise, Color Gain, Steer, PRF
Comprehensive Clinical Applications
This versatile system supports a wide range of diagnostic applications across multiple specialties:
| Specialty | Applications |
|---|---|
| Emergency Medicine | FAST exams, bedside diagnostics, trauma assessment |
| Critical Care | ICU patient evaluation, fluid status assessment |
| Anesthesiology | Nerve block guidance, vascular access |
| Cardiology | Basic cardiac assessment, chamber size and function evaluation |
| Obstetrics | Fetal biometry, gestational age assessment, pregnancy confirmation |
| Gynecology | Uterine and ovarian evaluation |
| Urology | Renal, bladder, and prostate examinations |
| Musculoskeletal | Tendon, ligament, and joint assessment |
| Vascular | Peripheral vascular assessment and blood flow detection |
| Small Parts | Thyroid, breast, and superficial structure imaging |
| Pediatrics | Neonatal and pediatric imaging |
| Surgery | Intraoperative guidance, needle visualization |
IPX7 Waterproof Probe for Easy Cleaning
The probe is rated IPX7 waterproof, allowing for easy cleaning and disinfection after each use. This feature is essential for maintaining infection control standards in busy clinical environments.
Long Battery Life and Convenient Charging
Broad Device Compatibility
The system is compatible with:
-
Apple iOS – iPhone (8 and newer) and iPad (Air 2 and newer)
-
Android – smartphones and tablets running Android 12 or higher
-
Windows – PC's (incompatible with MAC computers)
Why Choose Global Healthcare Medical?
| Consideration | Our Wireless Handheld Ultrasound |
|---|---|
| Need for portable, point-of-care imaging | Pocket-sized, 250g design goes wherever you go |
| Versatility across applications | True 3-in-1 design combines convex, linear, and phased array probes |
| No bulky equipment | Smartphone-powered—no console, no cables |
| Quick, confident diagnosis | B‑Mode, Color Doppler, and PW Doppler with adjustable depth settings |
| Easy to clean and maintain | IPX7 waterproof rating for simple disinfection |
| Cost-effective solution | Professional imaging at a fraction of traditional system costs |
| Regulatory compliance | FDA 510(k) cleared and CE marked for clinical use |
About Global Healthcare Medical
Global Healthcare Medical is dedicated to improving patient care around the world by delivering value-driven, innovative, and high-quality medical products and services. Our wireless handheld ultrasound system represents our commitment to making advanced diagnostic imaging accessible, portable, and affordable for healthcare professionals everywhere.
