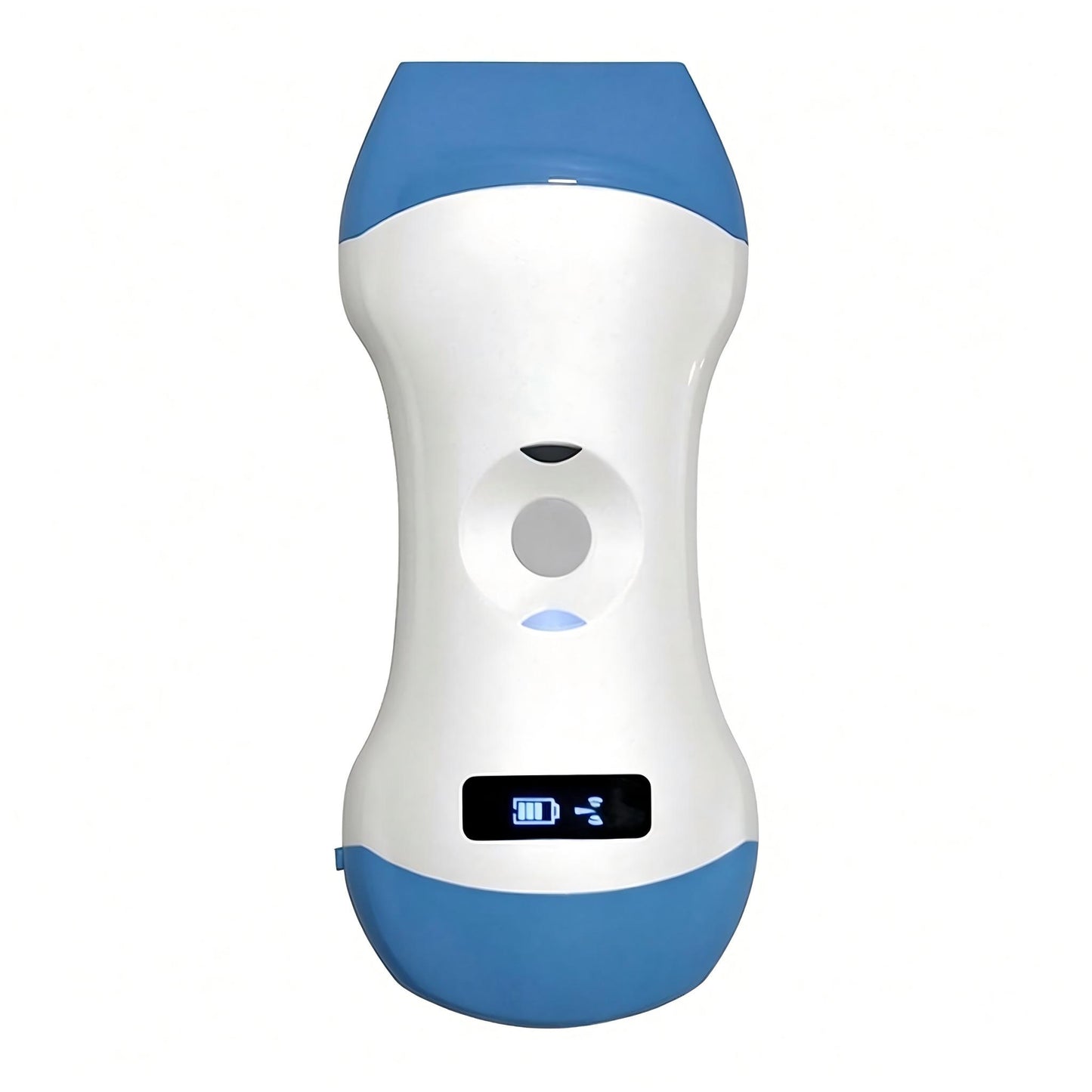

Global Healthcare Medical 3-in-1 Wireless Handheld Ultrasound System

Model: GHM CProbe-CL5PM HK

The Global Healthcare Medical 3-in-1 Wireless Handheld Ultrasound System is a compact, pocket-sized diagnostic imaging solution engineered to bring comprehensive ultrasound capabilities directly to the point of care. Designed for healthcare professionals who need reliable imaging wherever patients are—from emergency departments and critical care units to remote clinics, ambulatory services, and bedside rounds—this wireless probe-type system delivers exceptional versatility in a lightweight, portable form factor.

Weighing just 230g (0.5 lbs) and measuring 156mm × 60mm × 20mm (6.1″ × 2.4″ × 0.8″), this device fits comfortably in your hand or pocket, making it the ideal companion for daily POCUS (Point-of-Care Ultrasound) and ultrasound-guided procedures. The system operates wirelessly via WiFi, transmitting real-time images directly to a smartphone or tablet—eliminating the need for bulky consoles or tangled cables.

FDA 510(k) cleared and CE marked for clinical use, this system is indicated for a wide range of diagnostic applications including abdominal, cardiac, obstetric/gynecological, urological, and peripheral vascular imaging.

Key Features & Benefits

True 3-in-1 Design for Maximum Versatility

Unlike single-probe systems that require you to switch transducers for different applications, this device features an integrated 3-in-1 design combining convex (curvilinear), linear, and phased array probes in a single unit. This means you can seamlessly transition between deep abdominal scanning, superficial musculoskeletal imaging, and cardiac assessments without changing probes—saving valuable time during examinations. The convex probe can be switched to phased array mode via software, enabling basic cardiac assessments.

Exceptional Imaging Performance

The system delivers high-quality imaging across a broad range of clinical applications:

Key imaging specifications:

• 128 piezoelectric elements and 32 transmit channels for exceptional image clarity

• 18 frames/second image frame rate for smooth, real-time visualization

• Scan angle/width: Convex 45°, Phased array 80°, Linear 40mm

• 256 gray scale levels for detailed tissue differentiation

• Gain range: 30 – 105 dB

• Dynamic range: 40 – 110 (8 adjustable levels)

Imaging modes supported:

• B-Mode – fundamental 2D imaging

• B/M Mode – combined anatomical and motion imaging

• Color Doppler – real-time blood flow visualization

• PW Doppler – quantitative blood flow assessment

• PDI (Power Doppler Imaging) – sensitive low-flow detection

Image adjustments include gain, DYN, focus, depth, harmonic imaging, and noise reduction (0-4 levels).

Smartphone-Powered Convenience

The system connects wirelessly to a mobile device running the companion software application. This smartphone-powered approach offers:

• Intuitive touchscreen interface – familiar and easy to learn

• No separate display or console – reduces equipment costs and footprint

• Wireless operation – eliminates cable tangles and improves workflow

• Image storage and sharing – easily save, review, and share images in jpg, mp4, and DCM formats

• Multi-language support – Chinese, English, Italian, Spanish, Russian, German, Portuguese (Brazil)

• Cineplay – manual and automatic playback with adjustable frame settings (100/200/500/1000 frames)

• Measurements – distance, area, circumference, heart rate, and obstetric calculations

Puncture Assistance for Guided Procedures

The system includes in-plane and out-of-plane puncture guide lines, automatic blood vessel measurement, and needle tip enhancement — making it an ideal tool for ultrasound-guided interventions such as nerve blocks, vascular access, and biopsy guidance.

Broad Device Compatibility

The system is compatible with multiple platforms:

• Apple iOS – iPhone and iPad

• Android – smartphones and tablets

• Windows – PC's

WiFi 802.11n/2.4G/5G dual-band (450Mbps) provides fast, stable wireless connectivity.

Long Battery Life and Convenient Wireless Charging

The built‑in rechargeable battery provides 3 hours of continuous scanning on a single charge, and wireless charging allows you to extend working time indefinitely. A full charge takes approximately 2 hours.

IPX7 Waterproof Rating

The probe is rated IPX7 waterproof, allowing for easy cleaning and disinfection after each use—essential for maintaining infection control standards in busy clinical environments.

Free Software with No Hidden Fees

The system comes with free companion software with no hidden fees and unlimited users, making it a cost-effective solution for practices of all sizes.

Comprehensive Clinical Applications

Why Choose Global Healthcare Medical?

About Global Healthcare Medical

Global Healthcare Medical is dedicated to improving patient care around the world by delivering value‑driven, innovative, and high‑quality medical products and services. Our wireless handheld ultrasound system represents our commitment to making advanced diagnostic imaging accessible, portable, and affordable for healthcare professionals everywhere.
