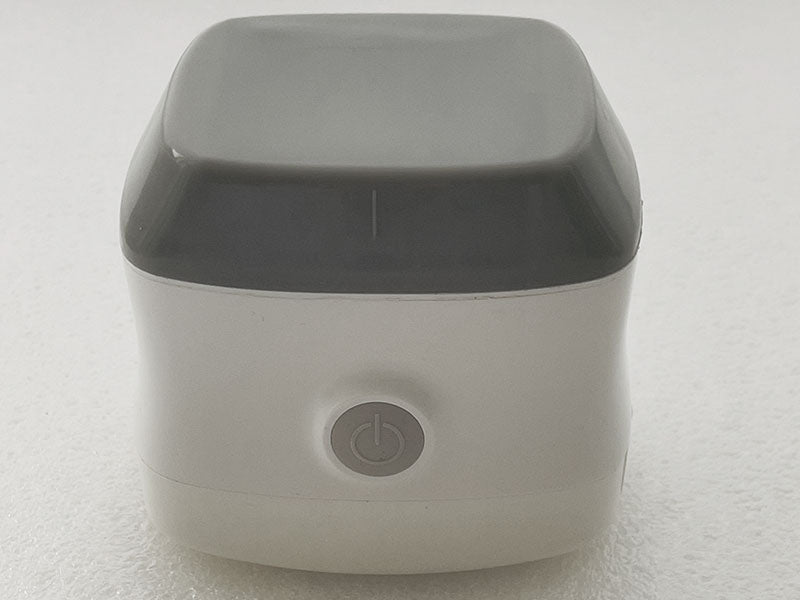

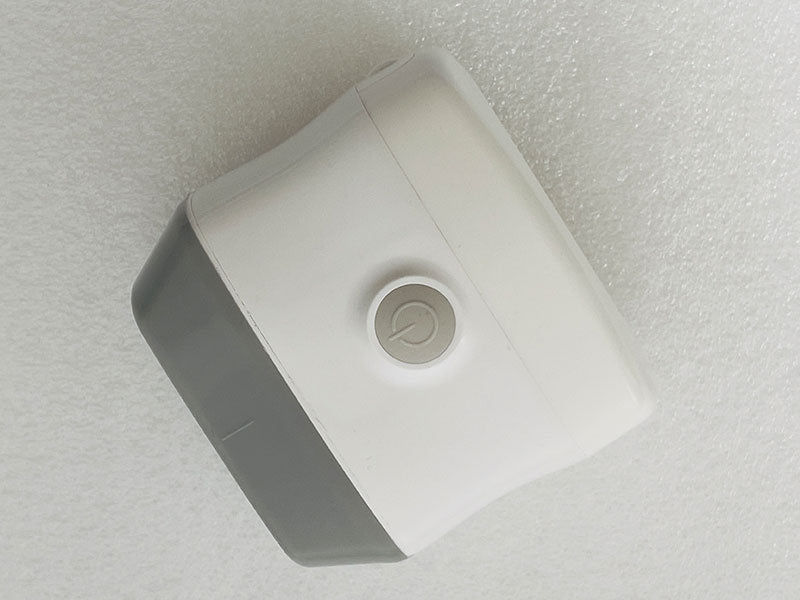

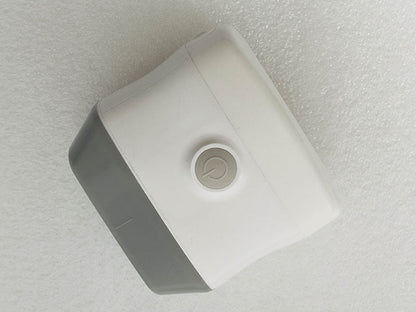

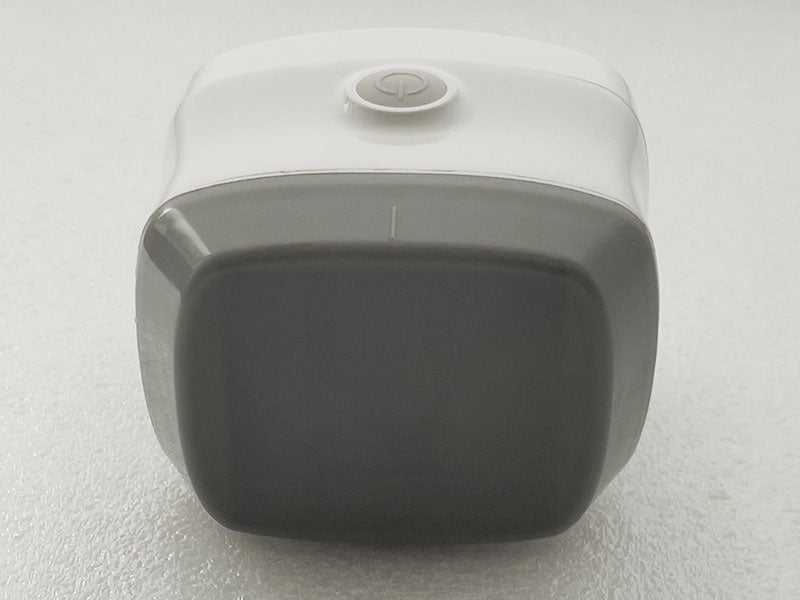

Global Healthcare Medical 4D Volume Imaging Handheld Ultrasound System

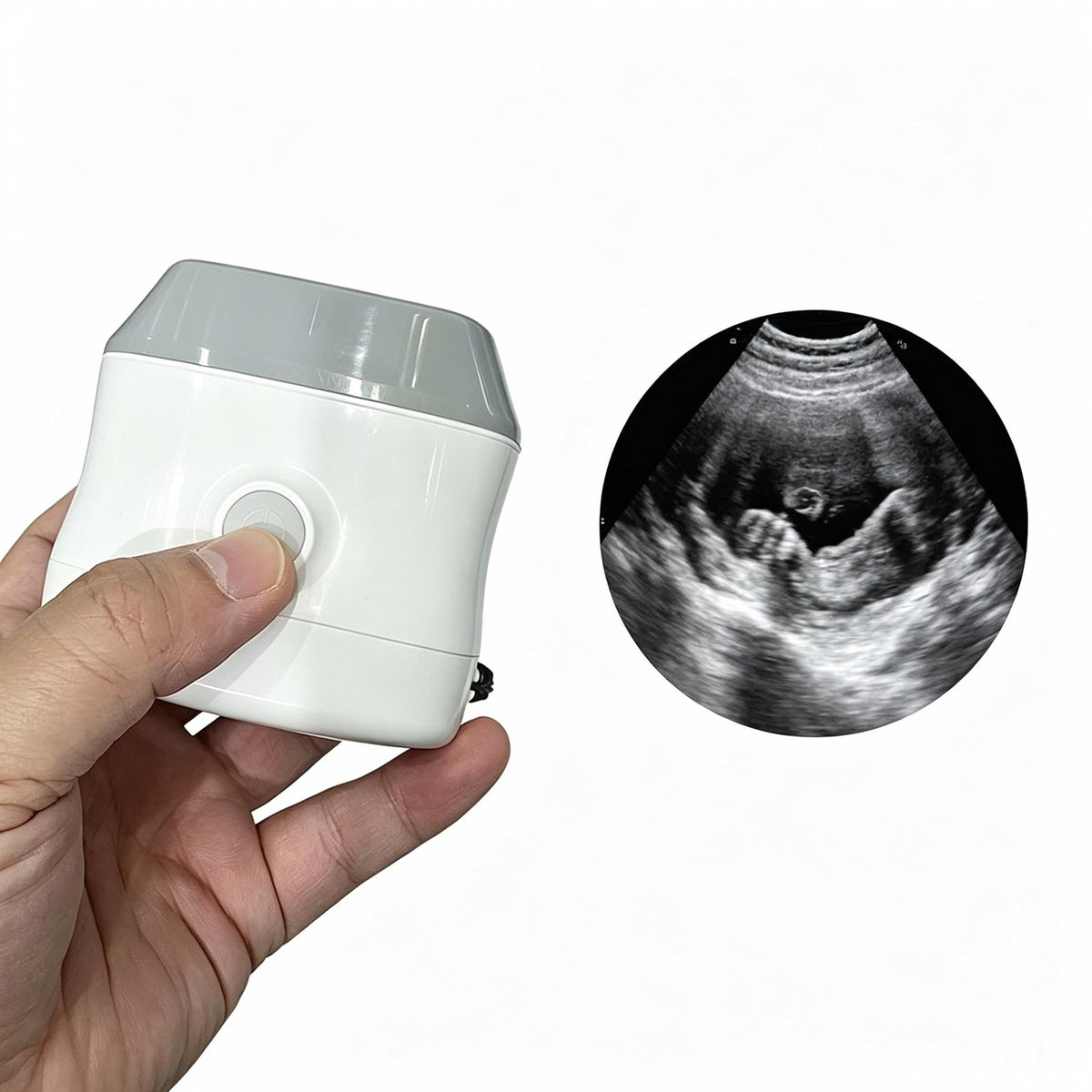

The Global Healthcare Medical 4D Volume Imaging Handheld Ultrasound System is a compact, probe-type diagnostic imaging solution that brings advanced volumetric ultrasound capabilities to the point of care. Traditionally, 4D imaging required large, high-end cart-based ultrasound equipment. This innovative device transforms that requirement into a single handheld probe—an ultrasonic imaging camera capable of capturing 3D and 4D (real-time 3D) images of fetal structures inside the body.

Weighing just 150g and measuring 140mm × 60mm × 20mm, this device connects wirelessly via built-in WiFi to a smartphone or tablet, instantly presenting stereoscopic and real-time volumetric images on the mobile screen. It is designed for expectant mothers who wish to see and record their baby's growth and development anytime, anywhere—whether in a hospital, community health center, photography studio, maternal and child product store, or at home.

Key Features & Benefits

True 4D Volume Imaging in a Handheld Probe

This system delivers 3D and 4D (real-time 3D) volumetric imaging through a single probe. The device captures volumetric data and renders it into stereoscopic images, allowing users to view fetal structures from multiple angles and in real time. This breakthrough capability transforms what was once the exclusive domain of large cart-based systems into a portable, handheld solution.

Phased Array Probe for Cardiac and Deep-Tissue Imaging

The device features a phased array probe with 64 image transmission and reception channels, optimized for adequate penetration depth. The phased array design is ideal for:

• Cardiac imaging – visualizing cardiac structures and function

• Deep abdominal imaging – liver, gallbladder, pancreas, spleen, kidney evaluation

• Obstetric and gynecological imaging – fetal assessment and monitoring

Probe specifications:

• Central frequency: 2.8 MHz

• Cardiac reverse harmonic imaging: 3.6 MHz

• Transcranial fundamental imaging: 2.5 MHz

• Scan depth: 90 / 130 / 160 / 190 mm (adjustable)

• Scan angle: 80°

Exceptional Imaging Performance

The system delivers high-quality imaging across a broad range of clinical applications:

Imaging modes supported:

• B‑Mode – fundamental 2D imaging with exceptional clarity

• B/M Mode – combined anatomical and motion imaging

• Color Doppler – real-time blood flow visualization

• Pulsed Wave Doppler (PW) – quantitative blood flow velocity assessment

• Power Doppler Imaging (PDI) – sensitive low-flow detection

Image adjustments include gain, focus, reverse pulse harmonics, and noise reduction. Cineplay supports manual and automatic playback with adjustable frame settings (100 / 200 / 500 / 1000).

Comprehensive Calculation Packages

The system includes a full suite of clinical calculation packages for comprehensive assessment:

These built-in calculation packages support detailed clinical assessment across multiple specialties, enhancing diagnostic confidence and workflow efficiency.

Wireless Freedom for Point-of-Care Use

The system connects wirelessly to a mobile device or PC via WiFi or USB connection, enabling:

• Instant image display – real-time visualization on your existing mobile device

• Simple setup – connect the probe to your device and start scanning

• Image storage and sharing – supports jpg, mp4, png, and DCM formats

• Broad compatibility – works with Apple iOS, Android, and Windows devices

• WiFi type: 802.11n / 2.4G / 5G dual-band, 450Mbps

Puncture Assistance for Guided Procedures

The system includes in-plane puncture guide lines, out-of-plane puncture guidance with automatic blood vessel measurement, making it a practical tool for ultrasound-guided interventions such as:

• Nerve blocks – precise guidance for regional anesthesia

• Vascular access – safe and accurate line placement

• Joint injections – targeted delivery of therapeutic agents

• Biopsy guidance – accurate sampling of deep lesions

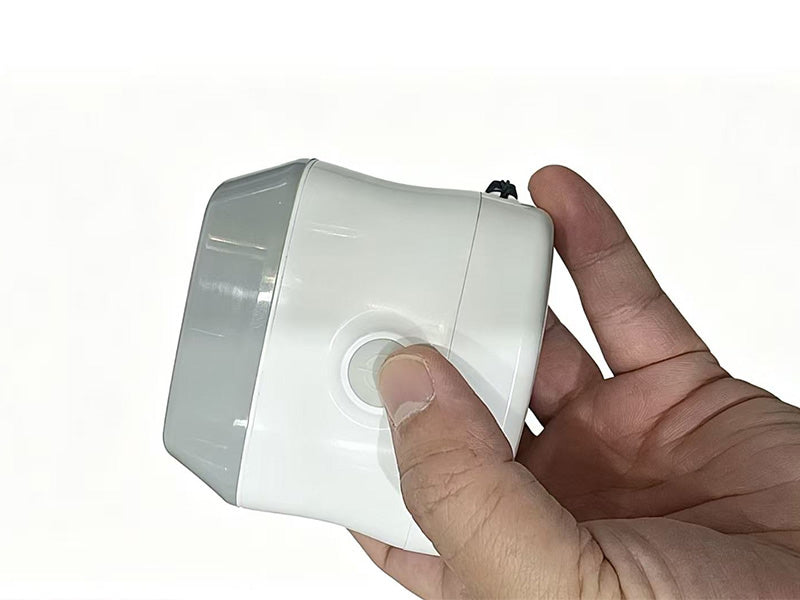

Portable, Durable, and Ready When You Are

• Ultra-lightweight design – just 150g for effortless handling

• Pocket-sized form factor – 140mm × 60mm × 20mm fits in your pocket or bag

• Extended battery life – 1.5 hours of continuous scanning; longer operation with USB connection

• USB charging – convenient and universal

• No subscription fees – one-time purchase, full access

Comprehensive Clinical Applications

Why Choose Global Healthcare Medical?

About Global Healthcare Medical

Global Healthcare Medical is dedicated to improving patient care around the world by delivering value-driven, innovative, and high-quality medical products and services. Our wireless handheld ultrasound system represents our commitment to making advanced diagnostic imaging accessible, portable, and affordable for healthcare professionals and expectant families everywhere.
