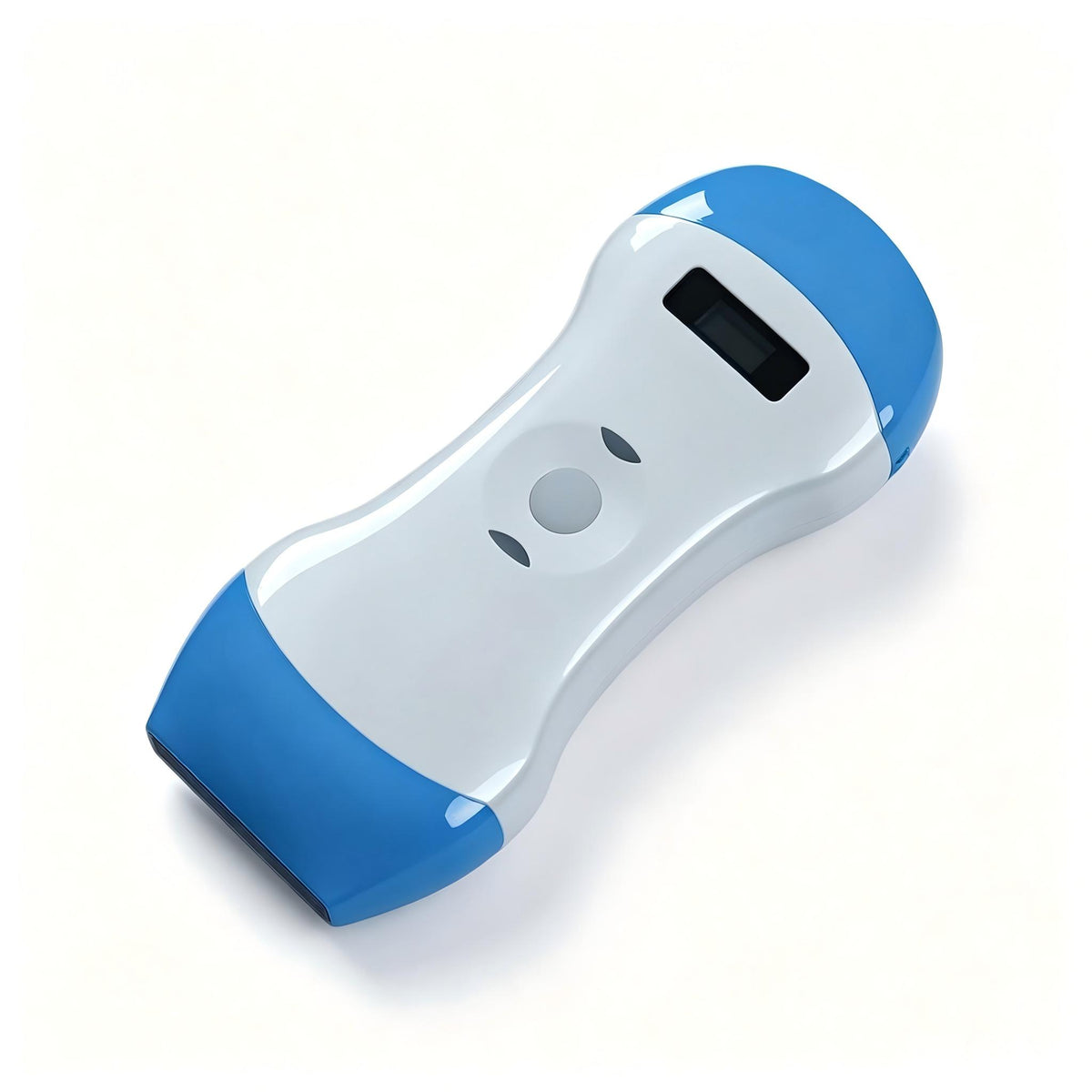

Global Healthcare Medical Dual‑Head Wireless Handheld Ultrasound System
Global Healthcare Medical Dual‑Head Wireless Handheld Ultrasound System
The Global Healthcare Medical Dual‑Head Wireless Handheld Ultrasound System is a compact, smartphone‑sized diagnostic imaging solution that brings high‑quality ultrasound directly to the point of care. Designed for healthcare professionals who need reliable imaging wherever patients are—from emergency departments and critical care units to remote clinics, ambulatory services, and bedside rounds—this wireless probe‑type system delivers exceptional versatility in a lightweight, portable form factor.
Weighing just 260g (0.6 lbs) and measuring 156mm × 60mm × 20mm (6.1″ × 2.4″ × 0.8″), this device fits comfortably in your hand or pocket, making it the ideal companion for daily POCUS (Point‑of‑Care Ultrasound) and ultrasound‑guided procedures. The system operates wirelessly via WiFi, transmitting real‑time images directly to a smartphone or tablet—eliminating the need for bulky consoles or tangled cables.
FDA 510(k) cleared (K211321) and CE marked for clinical use, this system is indicated for a wide range of diagnostic applications including abdominal, cardiac, obstetric/gynecological, urological, and peripheral vascular imaging.
Key Features & Benefits
Dual‑Head Wireless Design for Maximum Versatility

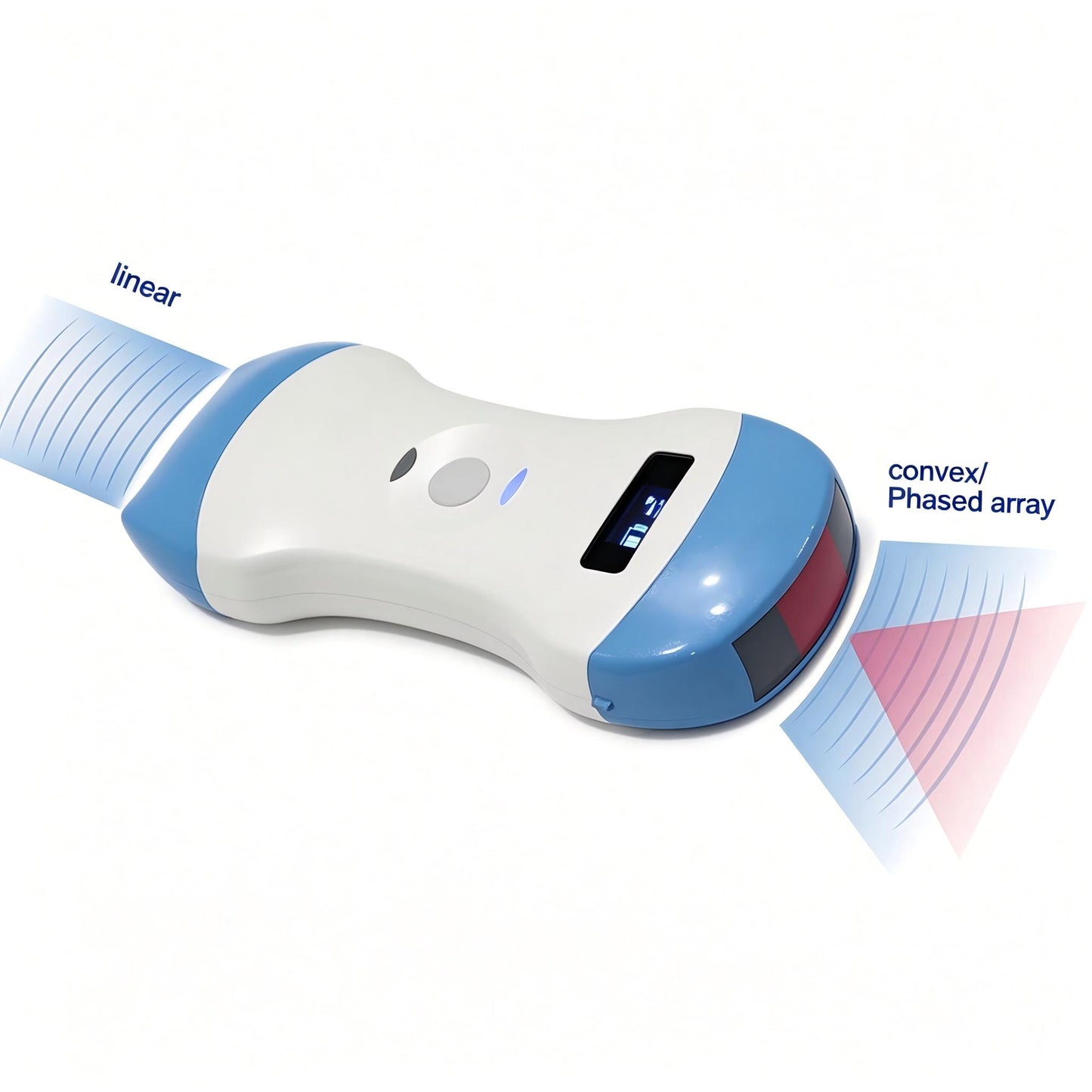

Unlike single‑probe systems that require you to switch transducers for different applications, this device features an integrated dual‑head design combining both a convex (curvilinear) probe and a linear probe in a single unit. This means you can seamlessly transition between deep abdominal scanning and superficial musculoskeletal or vascular imaging without changing probes—saving valuable time during examinations.
Exceptional Imaging Performance
The system delivers high‑quality imaging across a broad range of clinical applications:
| Probe Type | Frequencies | Scan Depth | Applications |
|---|---|---|---|
| Convex (Curvilinear) Probe | 3.5 MHz / 5.0 MHz | 90/160/220/305mm | Abdominal, obstetric, gynecological, urological, and deep tissue imaging |
| Linear Probe | 7.5 MHz / 10.0 MHz | 20/40/60/100mm | Musculoskeletal, vascular, small parts, and superficial structure imaging |
-
B‑Mode – fundamental 2D imaging
-
B/M Mode – combined anatomical and motion imaging
-
Color Doppler – real‑time blood flow visualization
-
PW Doppler – quantitative blood flow assessment
-
PDI – sensitive low‑flow detection
The system features 128 probe elements and delivers a smooth 18 frames/second image frame rate for real‑time visualization. Image adjustments include BGain, TGC, DYN, Focus, Depth, Harmonic, and Denoise.
Smartphone‑Powered Convenience

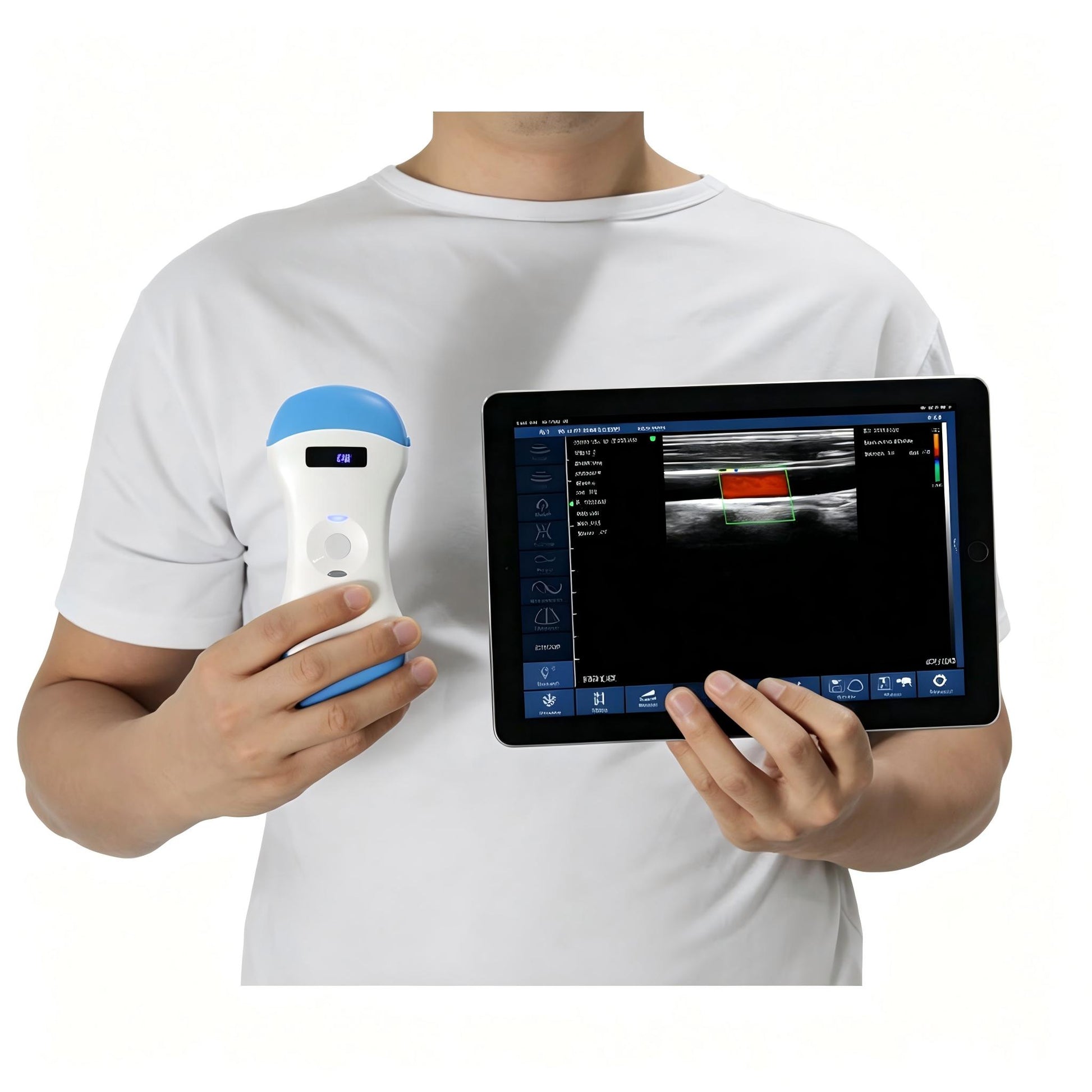

The system connects wirelessly to a mobile device running the companion software application. This smartphone‑powered approach offers:
-
Intuitive touchscreen interface – familiar and easy to learn
-
No separate display or console – reduces equipment costs and footprint
-
Wireless operation – eliminates cable tangles and improves workflow
-
Image storage and sharing – easily save, review, and share images in jpg, avi, and DICOM formats
Comprehensive Clinical Applications
| Specialty | Applications |
|---|---|
| Emergency Medicine | FAST exams, bedside diagnostics, trauma assessment |
| Critical Care | ICU patient evaluation, fluid status assessment |
| Cardiology | Basic cardiac assessment, chamber size and function evaluation |
| Obstetrics | Fetal biometry, gestational age assessment, pregnancy confirmation |
| Gynecology | Uterine and ovarian evaluation |
| Urology | Renal, bladder, and prostate examinations |
| Musculoskeletal | Tendon, ligament, and joint assessment |
| Vascular | Peripheral vascular assessment and blood flow detection |
| Small Parts | Thyroid, breast, and superficial structure imaging |
| Pediatrics | Neonatal and pediatric imaging |
| Pulmonary | Lung and pleural imaging |
| Nerve | Nerve block guidance |
Portable, Durable, and Ready When You Are
-

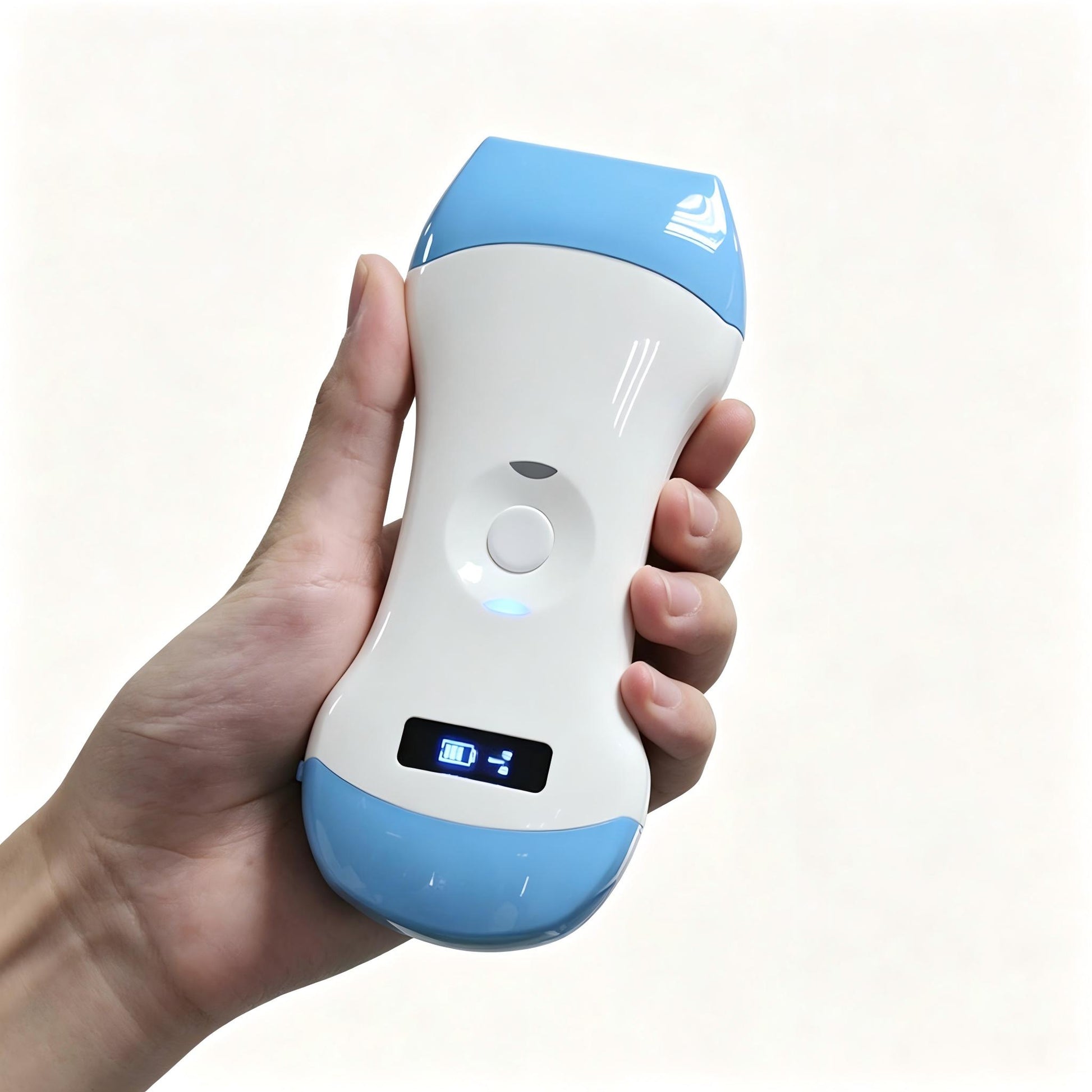

Pocket‑sized form factor – 156mm × 60mm × 20mm fits in your pocket or bag
-
Long battery life – 3–5 hours of continuous scanning on a single charge
-

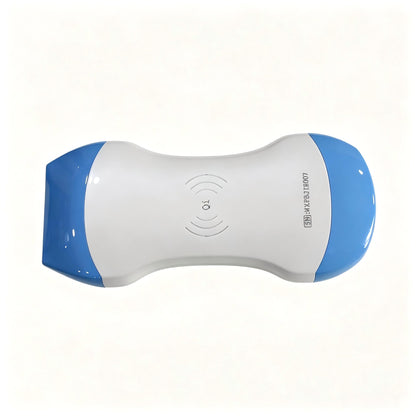

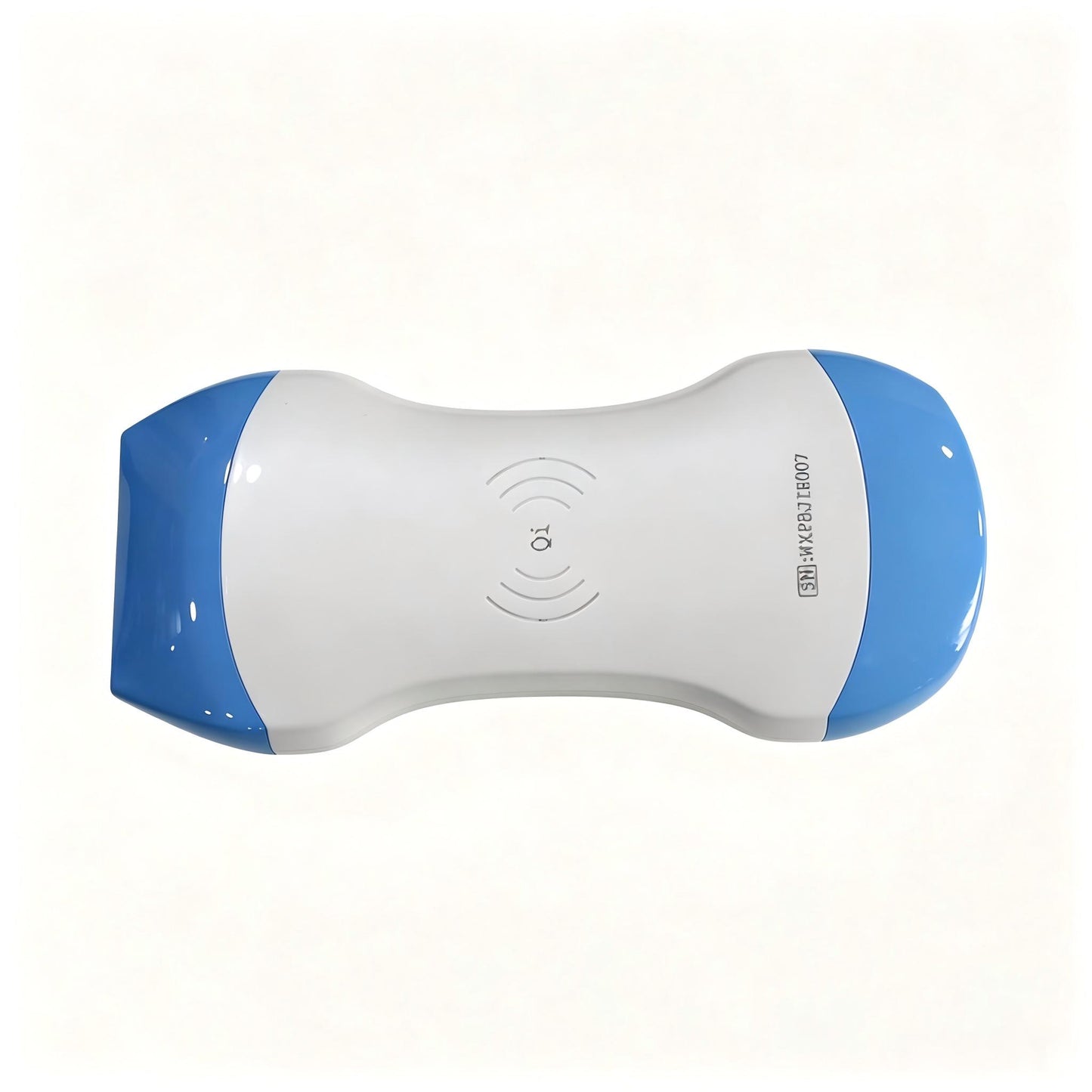

Wireless charging – eliminates cable clutter; fully recharges in under 2 hours
-
IPX7 waterproof rating – probe is waterproof, allowing for easy cleaning and disinfection
-
Durable construction – expected lifespan of 10 years
Broad Device Compatibility
The system is compatible with:
-
Apple iOS – iPhone (8 and newer) and iPad (Air 2 and newer)
-
Android – smartphones and tablets running Android 12 or higher
Why Choose Global Healthcare Medical?
| Consideration | Our Wireless Handheld Ultrasound |
|---|---|
| Need for portable, point‑of‑care imaging | Pocket‑sized, 260g design goes wherever you go |
| Versatility across applications | Dual‑head design combines convex and linear probes |
| No bulky equipment | Smartphone‑powered—no console, no cables |
| Quick, confident diagnosis | B‑Mode, Color Doppler, and PW Doppler with adjustable depth settings |
| Easy to clean and maintain | IPX7 waterproof rating for simple disinfection |
| Cost‑effective solution | Professional imaging at a fraction of traditional system costs |
| Regulatory compliance | FDA 510(k) cleared and CE marked for clinical use |
About Global Healthcare Medical
Global Healthcare Medical is dedicated to improving patient care around the world by delivering value‑driven, innovative, and high‑quality medical products and services. Our wireless handheld ultrasound system represents our commitment to making advanced diagnostic imaging accessible, portable, and affordable for healthcare professionals everywhere.
