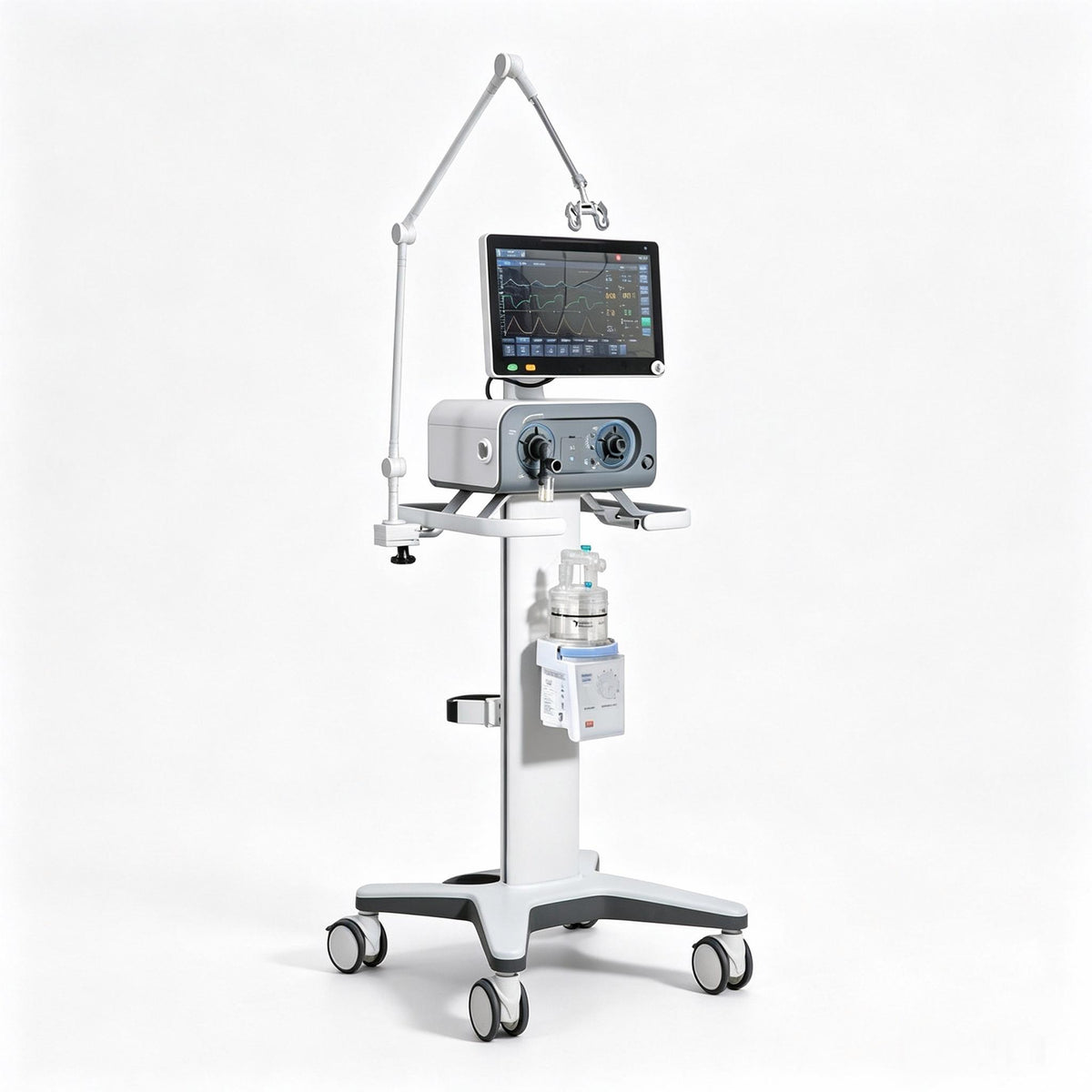

Global Healthcare Medical GHM S1900A US ICU Ventilator
Global Healthcare Medical GHM S1900A US ICU Ventilator
The Global Healthcare Medical GHM S1900A US ICU Ventilator is designed for use in intensive care units within specialized medical facilities, or during transit within a specialized medical facility. It provides ventilation assistance and respiratory support for adult, pediatric, and neonatal patients. The system is intended to be handled by well-trained, authorized medical personnel and is not for use in magnetic resonance imaging (MRI) environments.
With a 15.6-inch color touch LCD screen, multiple ventilation modes, comprehensive monitoring options, and a built-in backup battery, the GHM S1900A US supports flexible respiratory care across a wide range of patient sizes and clinical needs.
Key Features & Benefits
Adult, Pediatric & Neonatal Support
The GHM S1900A US is designed to support adult, pediatric, and neonatal patients. Tidal volume starts from 2 mL, supporting use across the full patient range. Separate patient modes and color-coded waveforms help clinicians view and interpret ventilation data more clearly.
15.6-Inch Color Touch LCD Screen
The large 15.6-inch color touch LCD screen provides a clear interface for viewing waveforms, parameters, and alarm information. Different color options support better waveform visibility in busy clinical environments.
Volume Control & Pressure Limit
The ventilator offers volume control and pressure limit functions, helping clinicians manage ventilation delivery according to patient needs.
Invasive & Non-Invasive Ventilation Modes
The system supports both non-invasive and invasive ventilation modes, providing flexibility across different clinical scenarios and patient requirements.
Comprehensive Monitoring Options
Optional monitoring capabilities include:
-
EtCO2 monitoring
-
SpO2 monitoring
-
Oxygen concentration monitoring
A built-in oxygen concentration sensor supports stable oxygen concentration accuracy.
Clinical Assessment Parameters
The system includes assessment parameters such as:
-
PEEP
-
NIF
-
P0.1
These parameters support clinical evaluation and ventilator management.
HFNC, Oxygenation & Oxygen Support Functions
The GHM S1900A US includes:
-
HFNC function
-
Oxygenation function
-
Oxygen support function
These functions expand the system’s role in respiratory support beyond conventional ventilation.
31 Types of Audible & Visual Alarms
The ventilator provides 31 types of sound and visual alarm information to support error checking and troubleshooting. Alarm information is designed to help users identify and respond to system conditions efficiently.
Compliance Compensation Function
The compliance compensation function helps support ventilation delivery by accounting for patient circuit compliance.
Self-Check Before Operation
A self-check before operation helps identify system issues before use, supporting operational readiness.
Built-In Battery with Automatic Backup Power
The ventilator includes a built-in battery. When AC power fails, the system automatically switches to backup power, supporting continued operation during power interruptions.
Separate Electronic Circuit & Gas Flow Design
The separate design of the electronic circuit and gas flow path supports stable operation of the ventilator.
Mobile Trolley with Four Casters & Two Brakes
The system is easy to move with four casters and easy to stop with two brakes. A compatible medical trolley is available.
Operation Key Freeze Function
The operation key freeze function helps prevent unintended changes during use.
Humidifier Options
Three humidifier options are available:
| Humidifier Option | Features |
|---|---|
| Standard | With thermometer |
| Optional Digital | With digital display |
| Optional Advanced | Dual pipeline heating function and servo control function |
The humidifier heats and moistens breathing gas, supporting patient comfort during ventilation.
Breathing Circuit & Oxygen Sensor
The breathing circuit uses high-temperature-resistant breathing pipelines that are reusable and anti-pollution. An oxygen concentration sensor is also included.
Technical Specifications
| Parameter | Specification |
|---|---|
| Patient Types | Adult, Pediatric, Neonatal |
| Display | 15.6-inch color touch LCD |
| Ventilation Modes | Volume control, pressure limit, non-invasive and invasive ventilation, SIMV |
| Respiratory Rate | 1–150/min; SIMV: 1–60/min; Neonatal: 1–150/min |
| Inspiratory Time (Tinsp) | 0.10 s – 10.00 s |
| I:E Ratio | 4:1 – 1:10 |
| Tidal Volume (VT) | Adult: 100–2000 mL; Pediatric: 20–300 mL; Neonatal: 2.0–100 mL |
| PEEP | OFF, 1–50 cmH2O |
| Flow Trigger (Ftr) | 0.5–20.0 L/min |
| Delta P (ΔP) | Adult/Pediatric: 5–80 cmH2O; Neonatal: 1–80 cmH2O |
| Pressure Support (Ps) | 0–80 cmH2O |
| Oxygen Concentration | 21%–100% |
| TIP | OFF, 5%–60% |
| Sigh Cycle | 1–20 times |
| Apnea Warning | 5–60 s |
| Airway Pressure | 10–85 cmH2O |
| Pressure Limit | ≤115 cmH2O |
| Maximum Output Flow | 6–9 L/min |
| Monitoring Options | EtCO2, SpO2, oxygen concentration |
| Assessment Parameters | PEEP, NIF, P0.1 |
| Alarm Types | 31 audible and visual alarm types |
| Battery | Built-in battery with automatic backup power |
| Mobility | Four casters, two brakes |
| Humidifier | Standard thermometer, optional digital, optional dual pipeline heating with servo control |
| Breathing Circuit | Reusable, high-temperature resistant, anti-pollution |
| Oxygen Sensor | Built-in oxygen concentration sensor |
| MRI Compatibility | Not for use in MRI environments |
Why Choose Global Healthcare Medical GHM S1900A US?
| Consideration | GHM S1900A US Solution |
|---|---|
| Adult, pediatric, and neonatal ventilation | Tidal volume from 2 mL and dedicated patient modes |
| Clear clinical visualization | 15.6-inch color touch LCD with color-coded waveforms |
| Flexible ventilation support | Invasive and non-invasive modes, volume control, pressure limit |
| Expanded respiratory support | HFNC, oxygenation, and oxygen support functions |
| Comprehensive monitoring | Optional EtCO2, SpO2, and oxygen concentration monitoring |
| Clinical assessment | PEEP, NIF, and P0.1 parameters |
| Operational readiness | Self-check before operation and 31 alarm types |
| Power continuity | Built-in battery with automatic backup power |
| Mobile use | Four casters and two brakes for easy positioning |
| Patient comfort | Multiple humidifier options and reusable breathing circuit |
