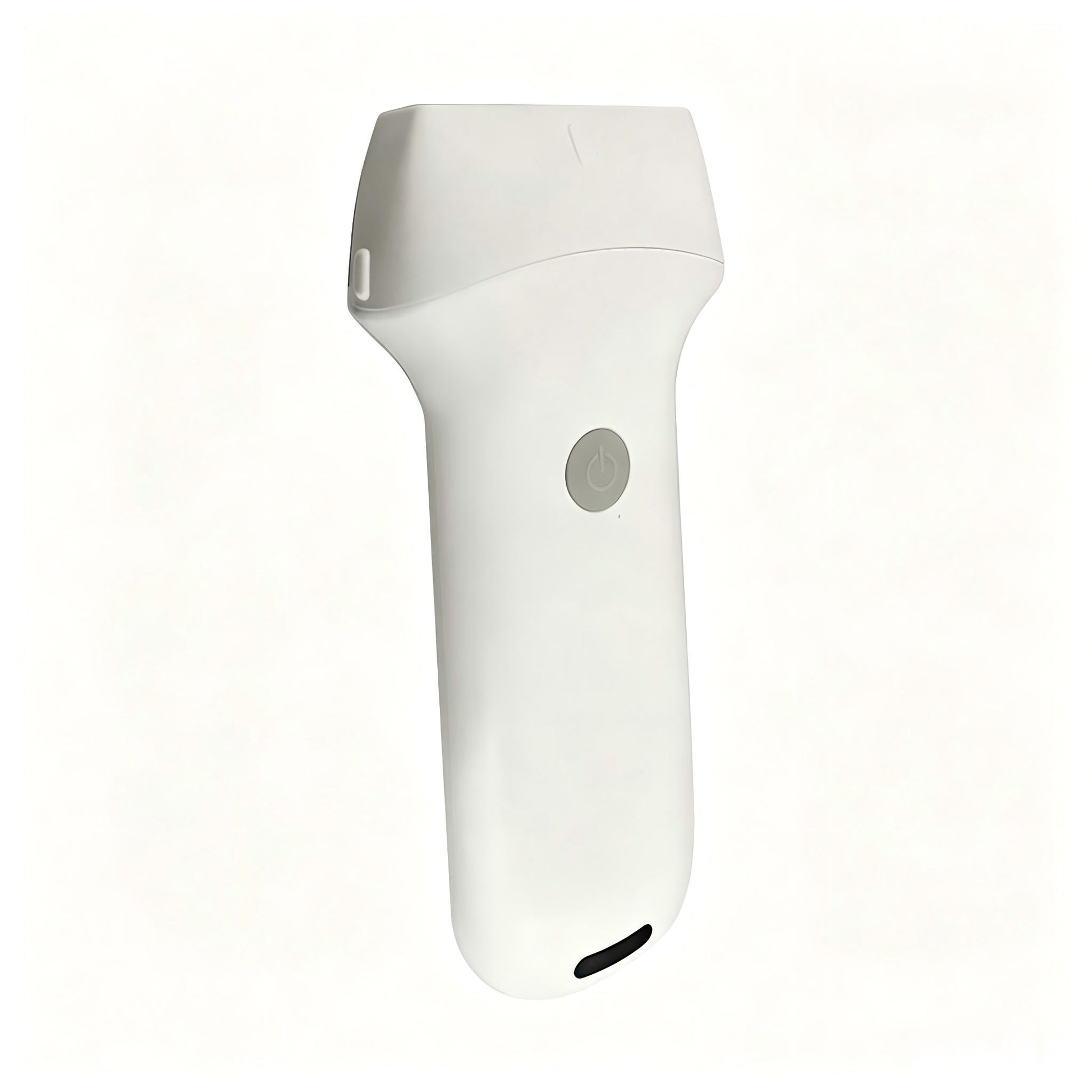

Global Healthcare Medical High‑Frequency Linear Wireless Handheld Ultrasound System

Model: GHM CProbe-L9 HK

The Global Healthcare Medical High‑Frequency Linear Wireless Handheld Ultrasound System is a compact, pocket‑sized diagnostic imaging solution engineered to deliver exceptional near‑field resolution for superficial structures. Designed for healthcare professionals who need reliable, high‑quality imaging wherever patients are—from emergency departments and sports medicine clinics to operating rooms, remote clinics, and ambulatory services—this wireless probe‑type system delivers outstanding performance in a lightweight, portable form factor.

Weighing just 230g and measuring 156mm × 60mm × 20mm, this device fits comfortably in your hand or pocket, making it the ideal companion for daily POCUS (Point‑of‑Care Ultrasound) and ultrasound‑guided procedures. The system operates wirelessly via WiFi, transmitting real‑time images directly to a smartphone, tablet, or PC—eliminating the need for bulky consoles or tangled cables.

FDA 510(k) cleared (K211321) for clinical use, this system is indicated for a wide range of diagnostic applications including musculoskeletal, vascular, small parts, thyroid, breast, and pediatric imaging.

Key Features & Benefits

High‑Frequency Linear Array for Superior Superficial Imaging

This system features a dedicated high‑frequency linear array probe with 192 piezoelectric elements and 64 transmit channels, optimized for imaging superficial structures with exceptional detail. The linear probe delivers:

• Outstanding near‑field resolution – ideal for visualizing tendons, ligaments, nerves, thyroid, breast tissue, and small parts

• High sensitivity – detects subtle structural changes with confidence

• Broad frequency range – 7.5 MHz / 10 MHz frequencies adaptable for various tissue depths and applications

• Adjustable scan depth – 20/40/60/100mm for precise imaging of superficial structures

Exceptional Imaging Performance

The system delivers high‑quality imaging across a broad range of clinical applications:

Imaging modes supported:

• B‑Mode – fundamental 2D imaging with exceptional clarity

• B/M Mode – combined anatomical and motion imaging

• Color Doppler – real‑time blood flow visualization

• Power Doppler Imaging (PDI) – sensitive low‑flow detection

• Pulsed Wave Doppler (PW) – quantitative blood flow velocity assessment

Image adjustments include gain, DYN, focus, depth, harmonic imaging, and denoise.

Replaceable Battery with Extended Working Time

Unlike many handheld ultrasound systems with sealed batteries, this device features a removable, replaceable 2200mAh battery. The standard configuration includes two batteries, each providing approximately 1.5 to 2 hours of continuous scanning. This innovative design allows you to swap batteries on the fly and continue scanning without interruption—ideal for busy clinical days and extended bedside rounds. Wireless charging further simplifies operation.

Smartphone‑Powered Convenience

The system connects wirelessly to a mobile device or PC running the companion software application. This smartphone‑powered approach offers:

• Intuitive touchscreen interface – familiar and easy to learn

• No separate display or console – reduces equipment costs and footprint

• Wireless operation – eliminates cable tangles and improves workflow

• Image storage and sharing – easily save, review, and share images in jpg, png, mp4, and DCM formats

• Broad compatibility – works with Apple iOS, Android, and Windows devices

• WiFi 802.11g/2.4G/5G dual‑band (450Mbps) – fast, stable wireless connectivity

Puncture Assistance for Guided Procedures

The system includes in‑plane and out‑of‑plane puncture guide lines and automatic blood vessel measurement, making it an ideal tool for ultrasound‑guided interventions such as:

• Nerve blocks – precise guidance for regional anesthesia

• Vascular access – safe and accurate central line placement

• Joint injections – targeted delivery of therapeutic agents

• Biopsy guidance – accurate sampling of superficial lesions

Comprehensive Measurement and Review Tools

• Measurements – length, area, angle, and obstetric calculations

• Cineplay – manual and automatic playback for retrospective review

• Image/video saving – supports jpg, png, mp4, and DCM formats

Comprehensive Clinical Applications

Regulatory Compliance and Quality Assurance

• FDA 510(k) cleared (K211321) – meets U.S. regulatory standards for medical devices

• CE marked – compliant with EU Medical Device Regulation

• ISO 13485 certified – meets international quality management standards

Why Choose Global Healthcare Medical?

About Global Healthcare Medical

Global Healthcare Medical is dedicated to improving patient care around the world by delivering value‑driven, innovative, and high‑quality medical products and services. Our wireless handheld ultrasound system represents our commitment to making advanced diagnostic imaging accessible, portable, and affordable for healthcare professionals everywhere.
